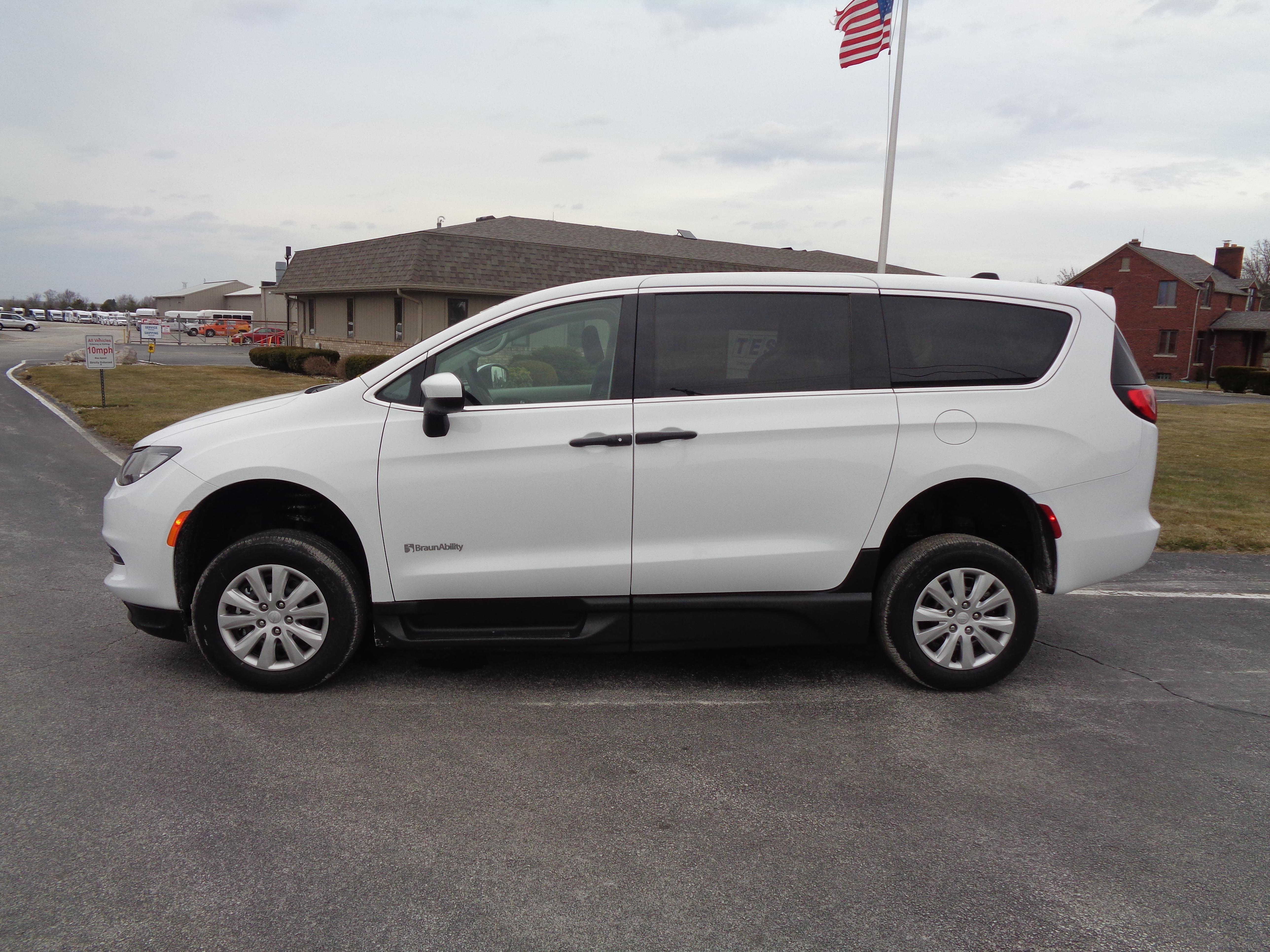

Vehicle Description

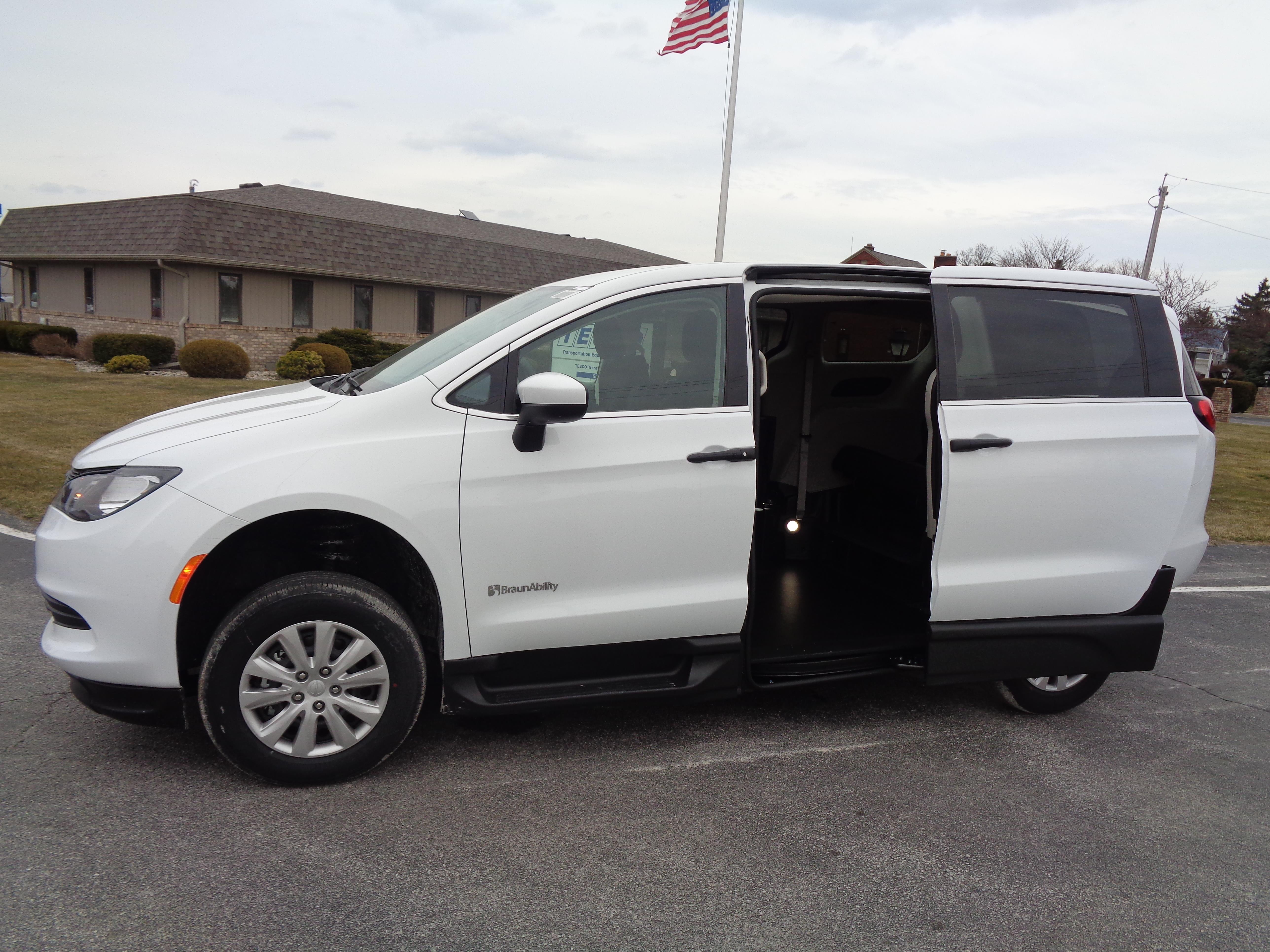

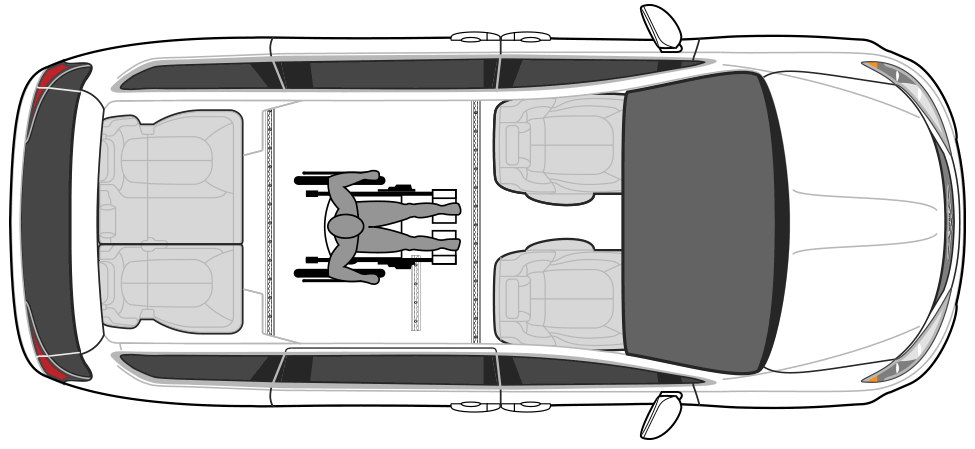

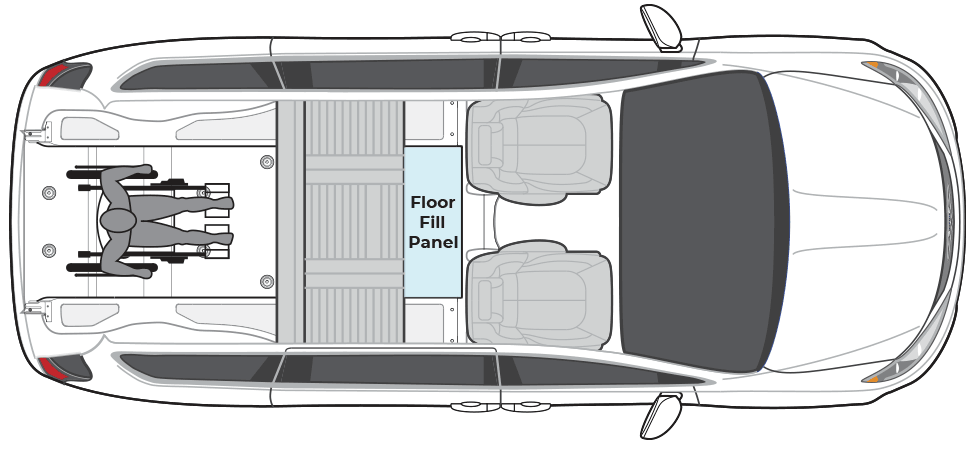

When it comes to handicap vans, there is no vehicle with more room to enter, exit, and maneuver than the line-up of BraunAbility conversions on the Chrysler Voyager. No mobility manufacturer offers more options! Whether you prefer a side-entry or rear-entry, an infloor ramp or a foldout ramp, BraunAbility gives you the ability to choose the Chrysler wheelchair van that best fits you, your lifestyle, and your budget.

What separates the BraunAbility Chrysler wheelchair van from the competition?

BraunAbility Chrysler wheelchair vans offer you the most of everything: a cabin interior fully 2” wider and 7” longer than any other accessible Voyager, plus a ramp rated to a 1,000-lb capacity. There are even more best-in-class features that truly set the BraunAbility Chrysler Voyager apart from the competition.


BraunAbility Voyager Advantages
  • Ideal for caregivers

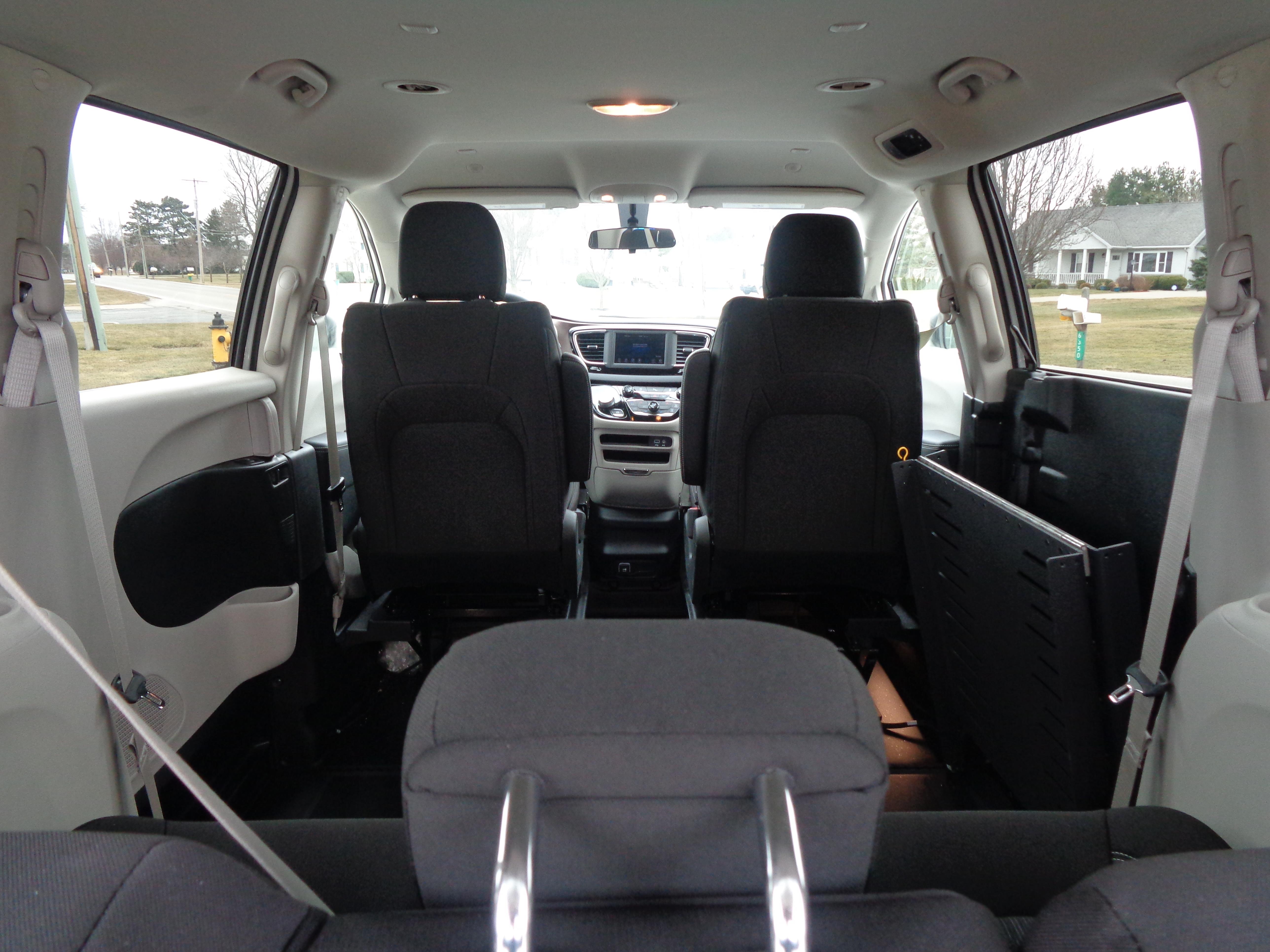

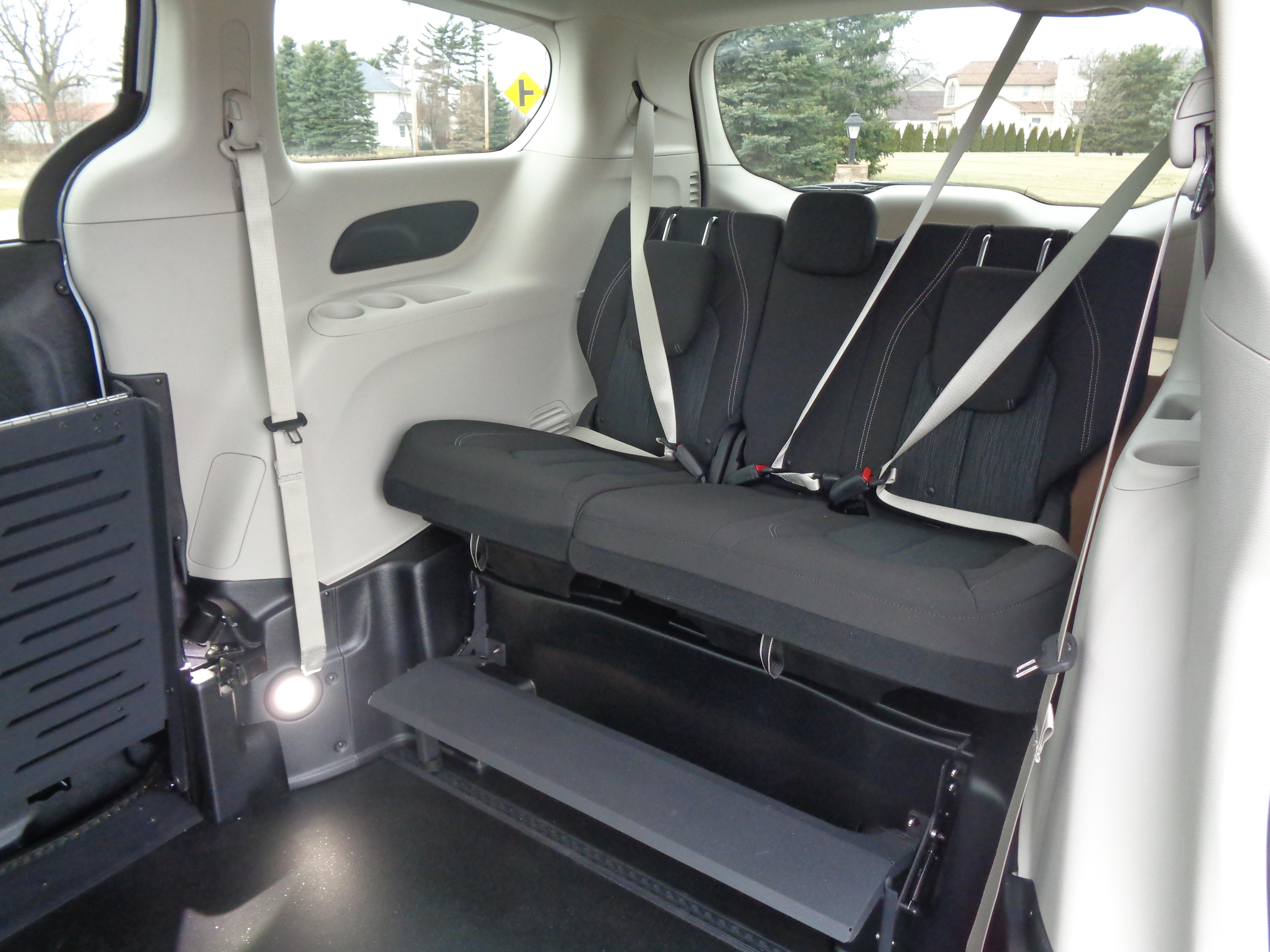

  • Unaltered front seat, center console, and rear bench
  • Lowered floor in mid-section of the van only

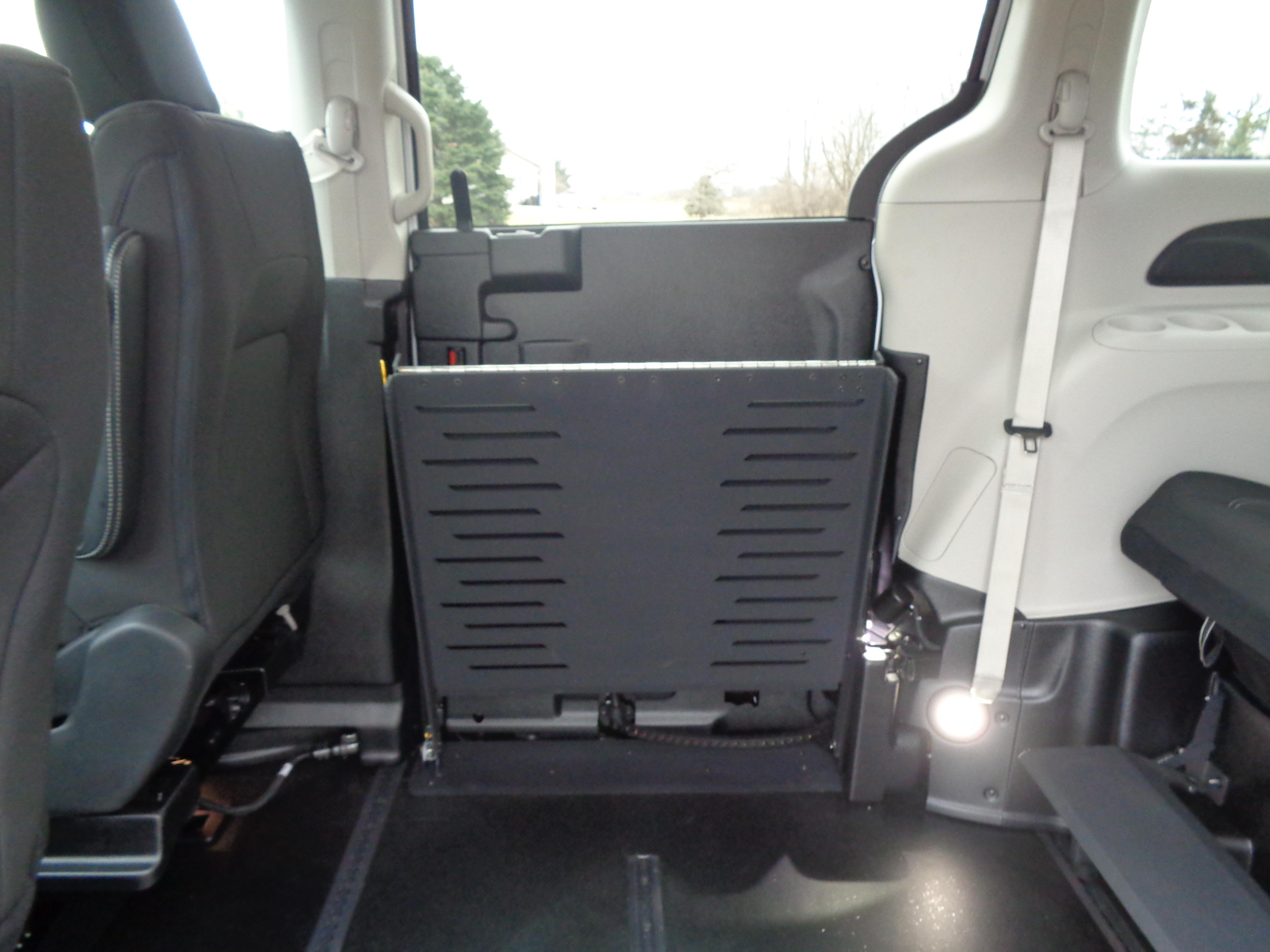

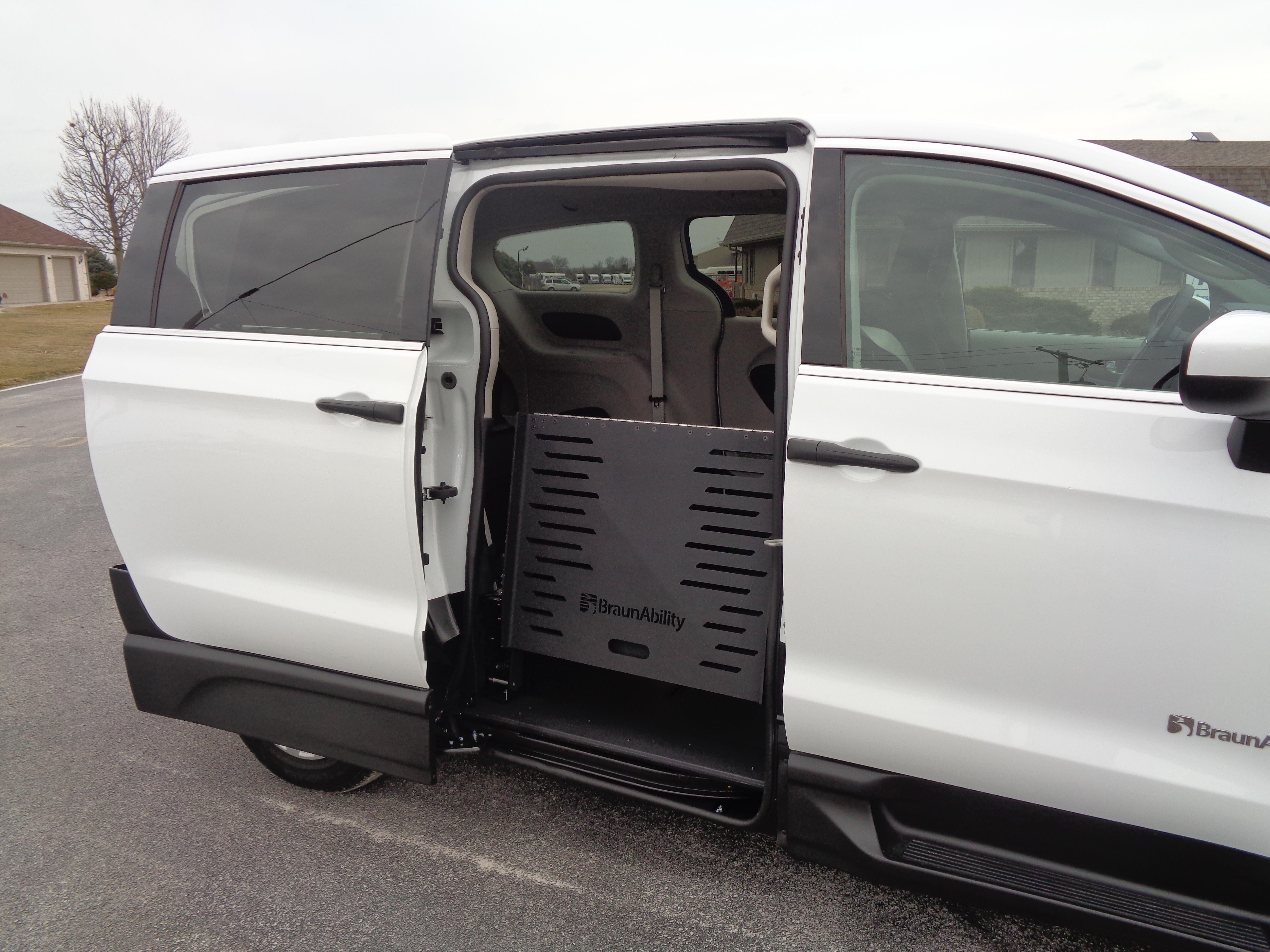

  • Manual ramp with easy-grip handle and power upgrade option
Standard Body Equipment
  • ADA, FMVSS and CMVSS Compliant
  • CARB Approved
  • Lowered Floor From Toepan to Rear Axle
  • 60" Floor-to-Ceiling at Center of Van

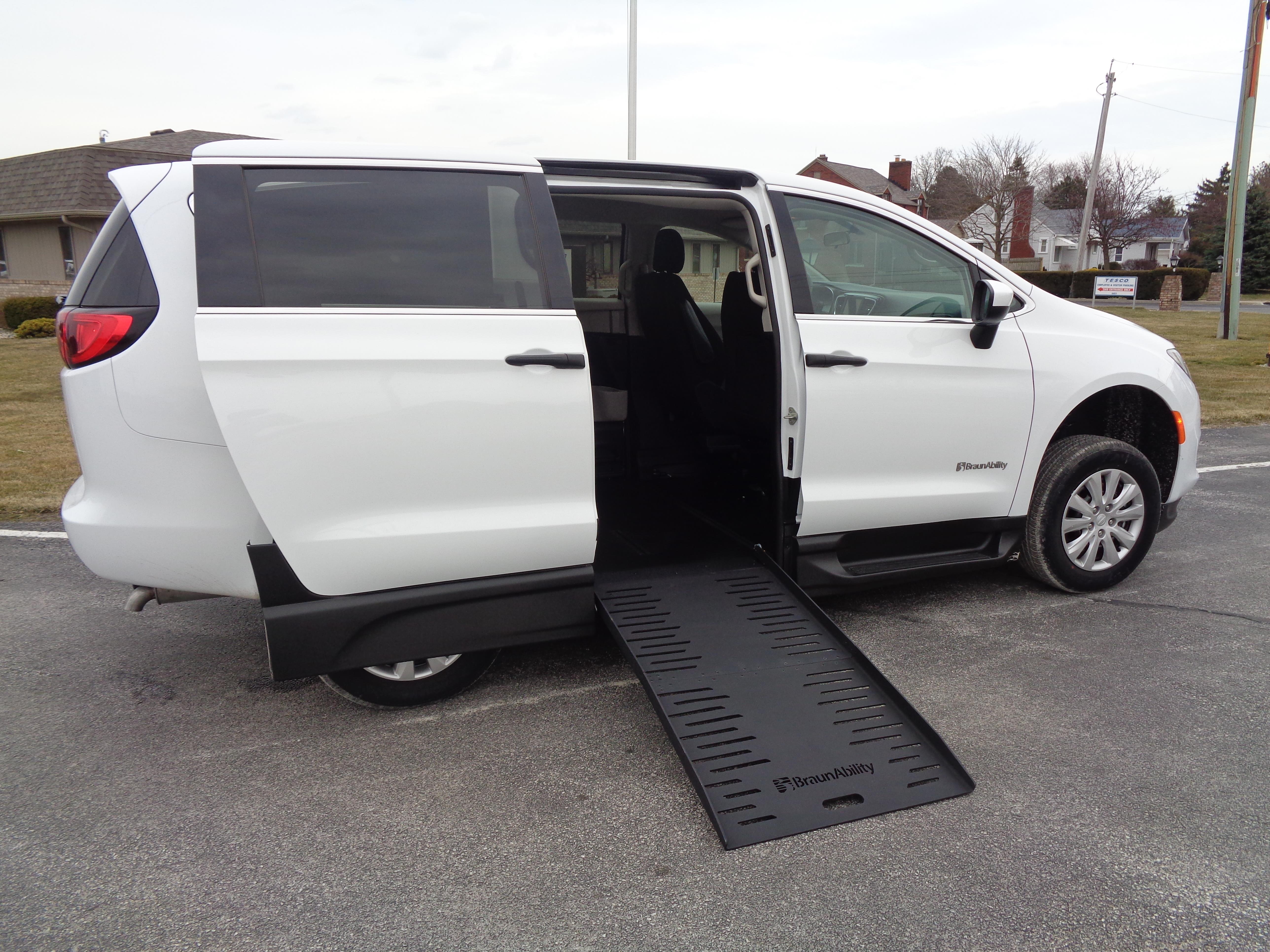

  • 30" Wide Manual Ramp with 1,000 lb Capacity
  • ADA-Compliant Park Interlock
  • ADA-Compliant Ramp and Door Entrance Lighting
  • Priority Seating and Wheelchair Securement Location Decals
  • Auxiliary Wiring Harnesses Include Fused Circuits
  • Emergency Rear Hatch Release
  • Easy Maintence Interior Trim Package
  • 19 Gallon OEM Fuel Tank
Standard Chassis Equipment
  • 3.6L V6 24V VVT Gas Engine
  • Fuel Tank Capacity 19 Gallons
  • 9-Speed Automatic Transmission

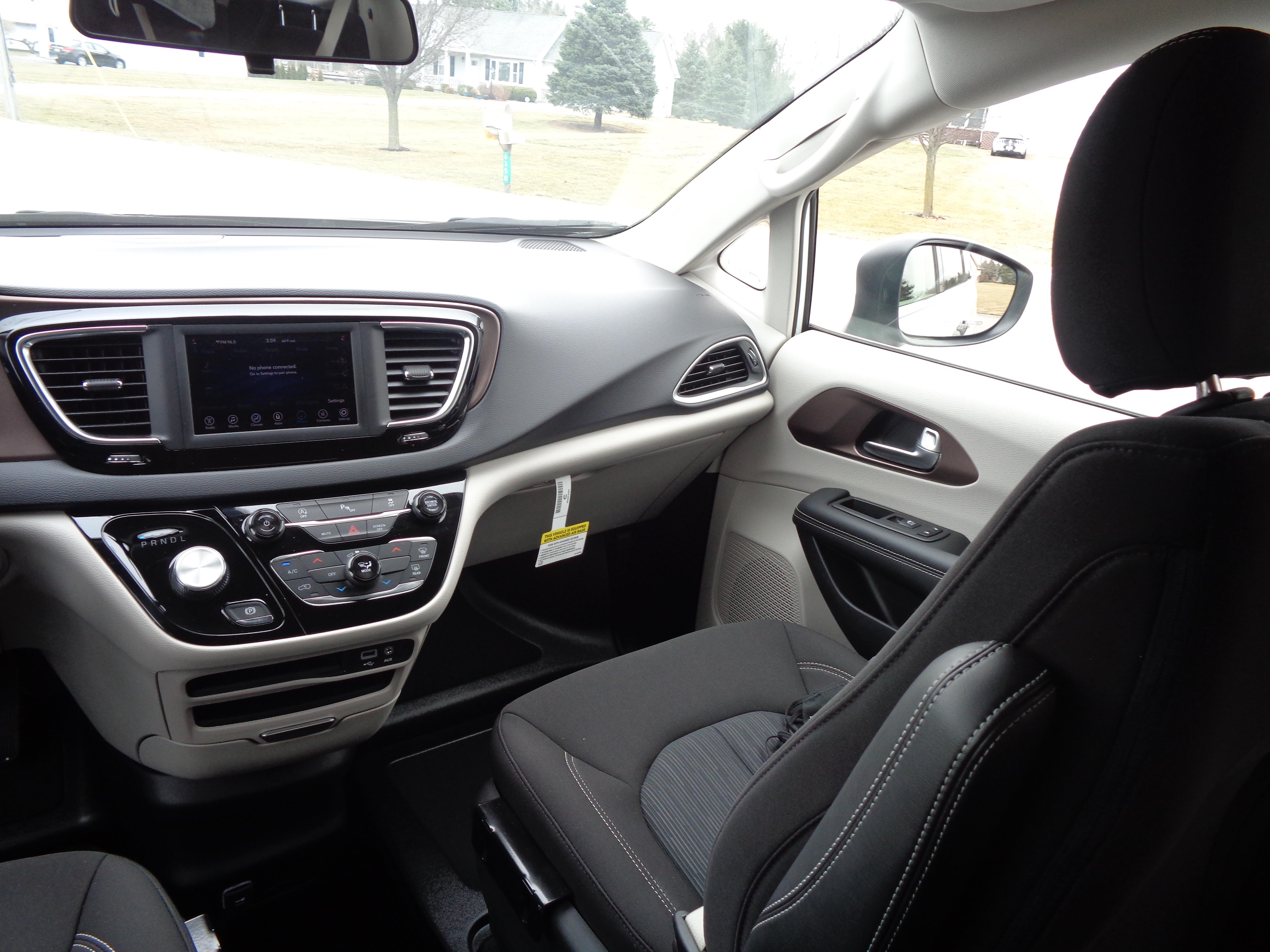

  • Full Function Media Hub w/ 2-USB & 6 Speakers
  • All Season Tires 235/65R17 BSW
  • Electronic Stability Control
  • Rear Back-Up Camera
  • Exterior Mirrors with Heating Element
  • Daytime Running Lights
  • Remote Proximity for All Doors - Push Button Start
  • Anti-Lock 4-Wheel Disc Brakes
Seating Options

At TESCO Bus, we want the process of purchasing a bus to be as easy as possible. Finding the perfect seat for your bus may seem overwhelming, but we are here to help. We are a distributor for Freedman seats, the most common of all seating in the transportation industry. Freedman offers endless amounts of seating types from the low back vinyls to the high back recliners, both common choices amongst our customers. To take a deeper a look at some of the Freedman seats and products that TESCO offers, click here.



  • Door Opening Usable Width: 32.375"
  • Door Opening Usable Height (at Middle of Door): 53"
  • Interior Height at Center of Van: 56"
  • Interior Height at Driver/Passenger Position: 56"
  • Ramp Length: 52"
  • Usable Ramp Width: 30.125"
  • Ramp Angle (Vehicle Kneeled): 9.1 degrees
  • Interior Floor Length (Behind Front Seats): 71"
  • Overall Interior Floor Length (Flat Area): 98.5"
  • IInterior Width at Slide Doors (Door Closed): 64"
  • Interior Width at B Pillars: 62.25"
