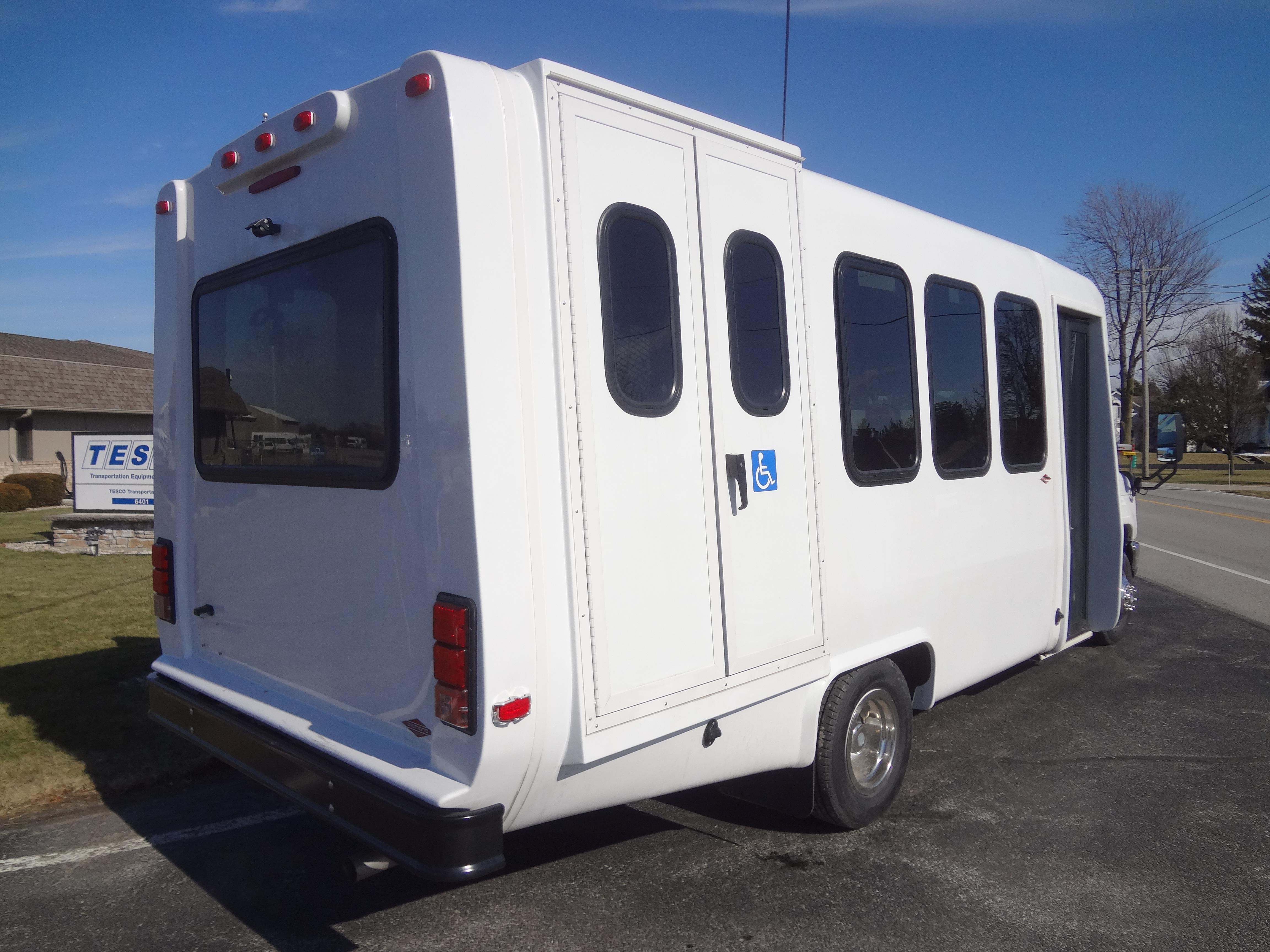

Vehicle Description

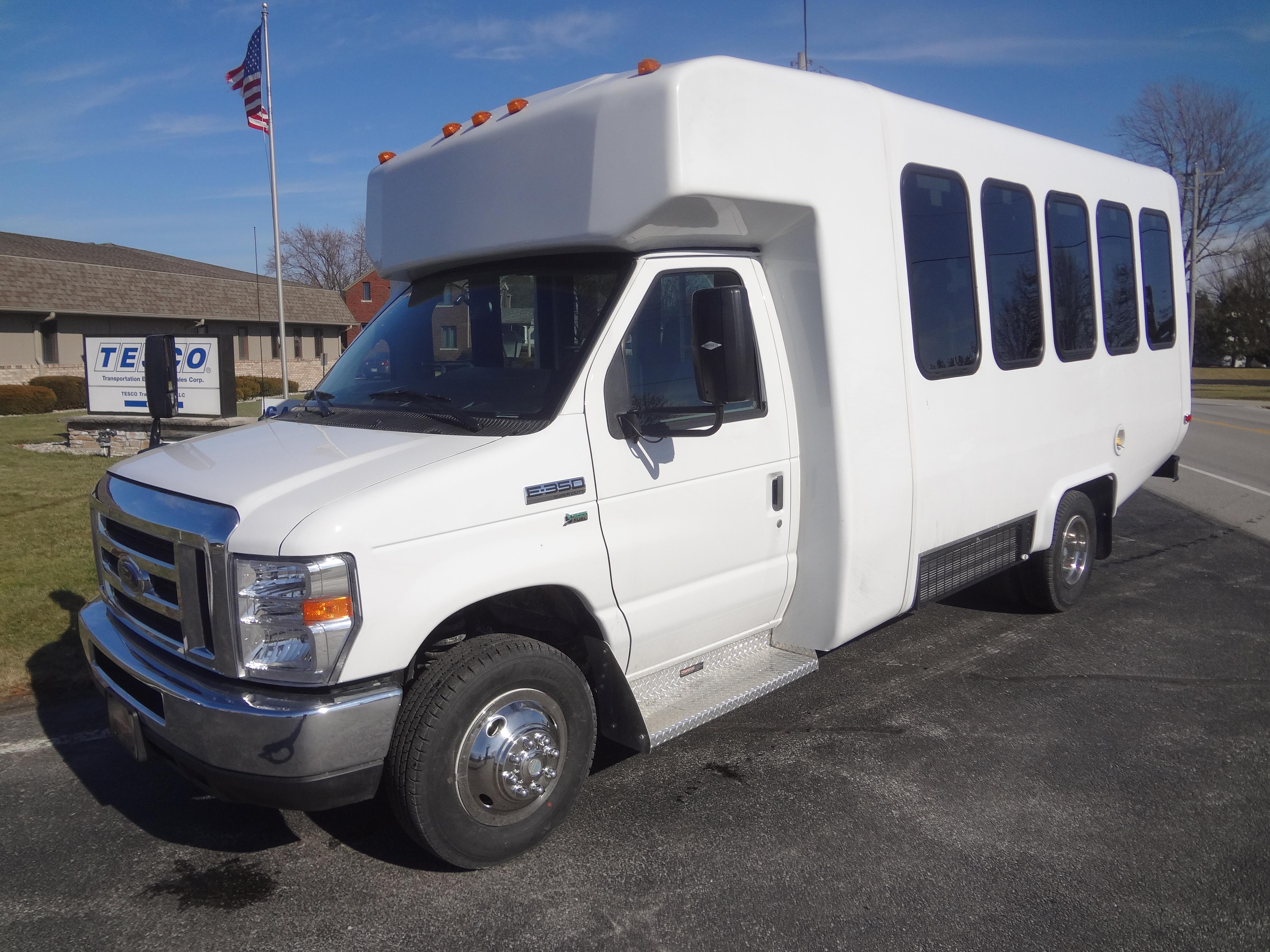

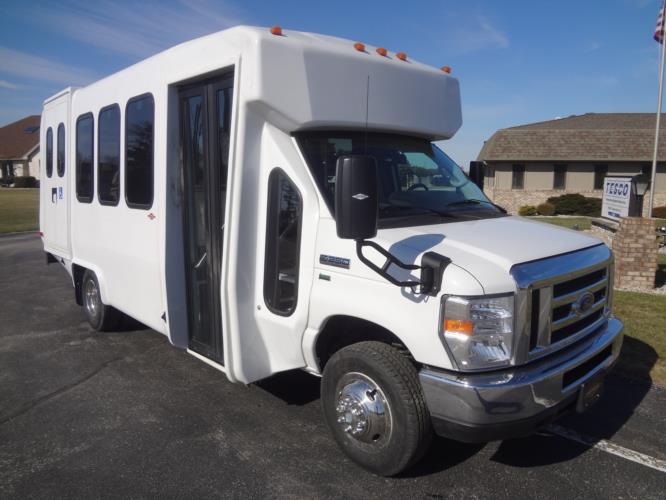

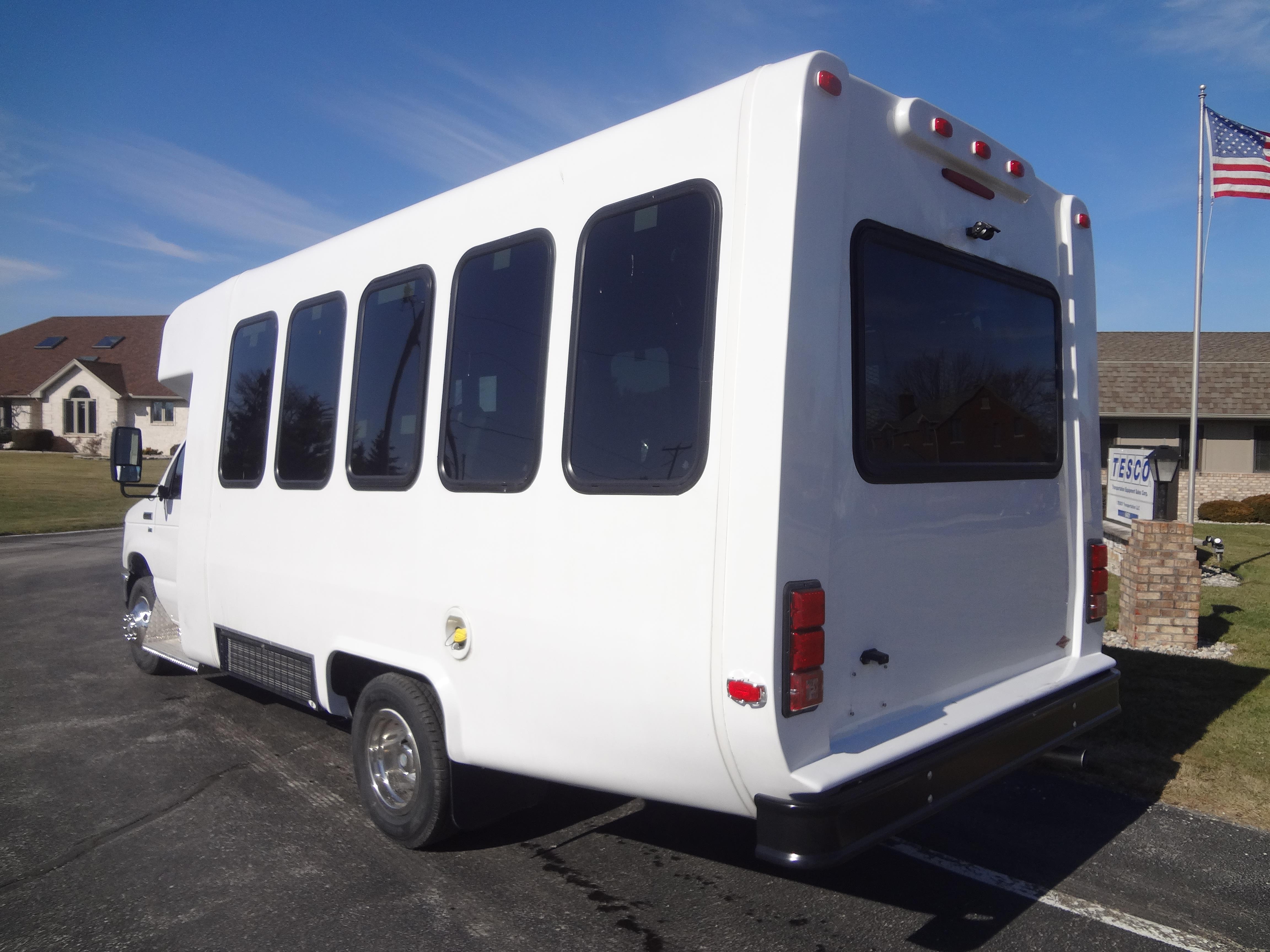

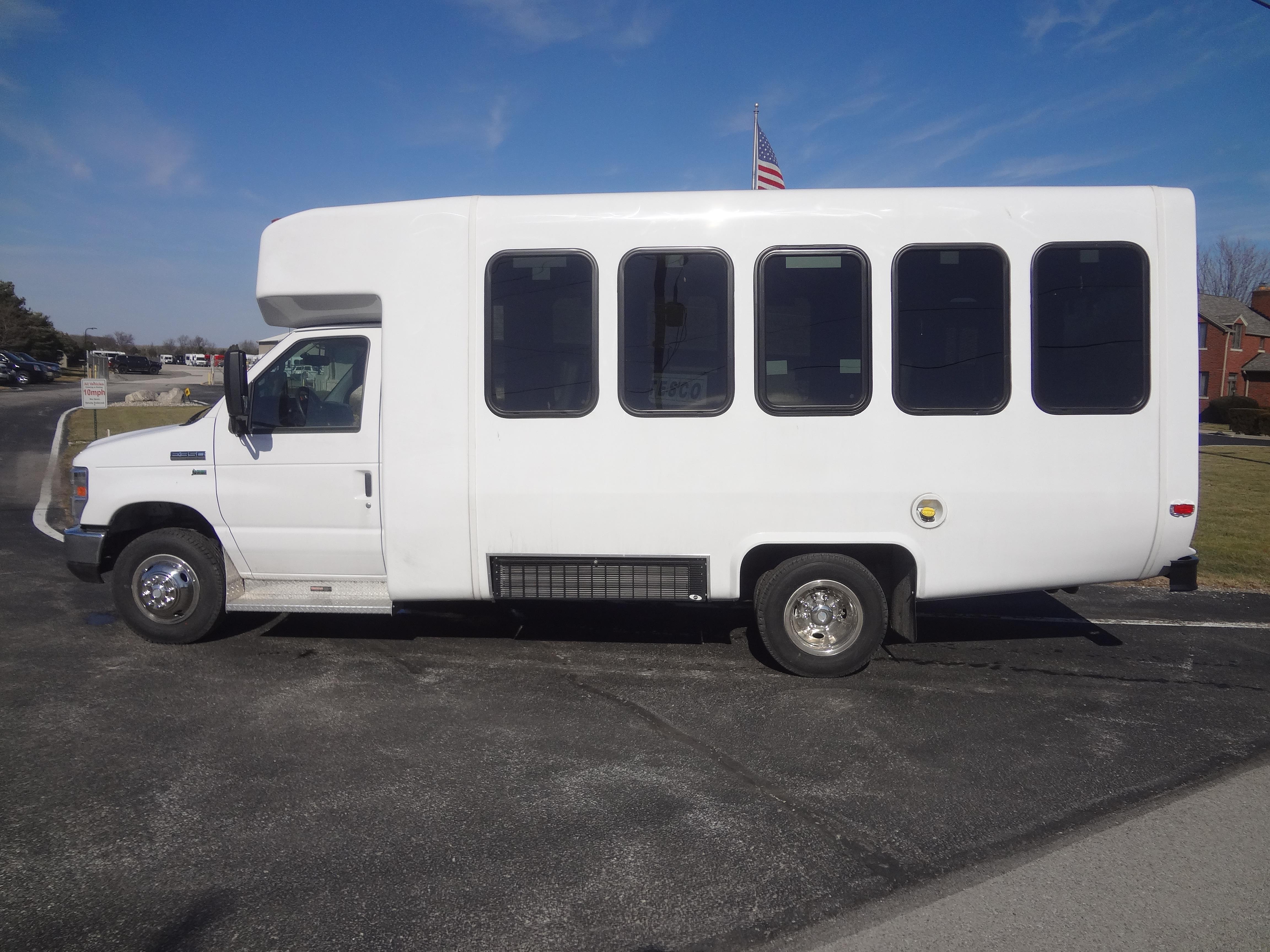

Diamond Coach VIP 2200

The VIP 2200 is an ideal solution for an activity, tour, or paratransit bus.

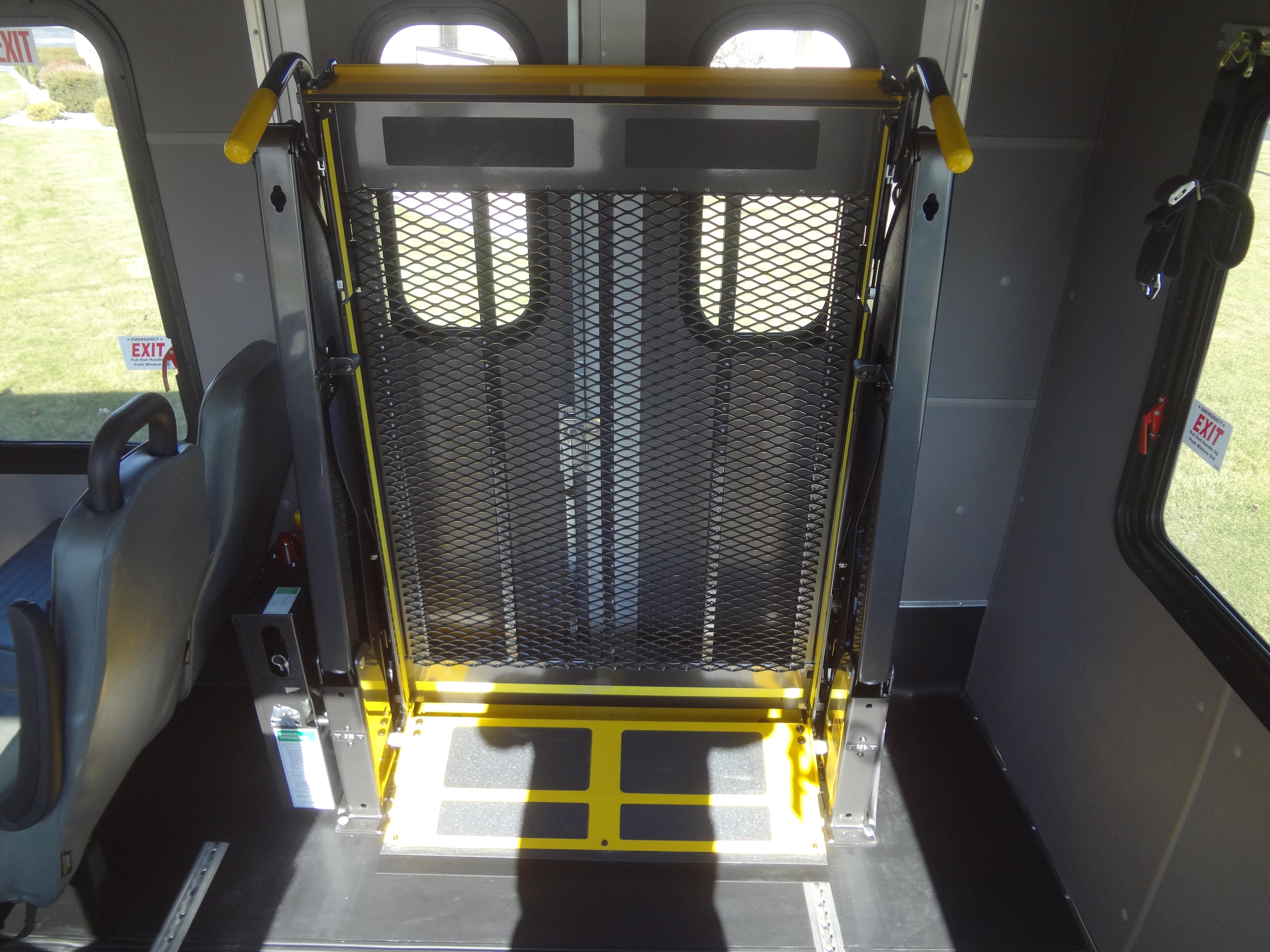

The VIP 2200 can accommodate up to 21 passengers and can be equipped with many of the luxury options of larger “coach” busses. All models can be optioned with a wheelchair lift to meet ADA requirements.

What makes Diamond uniquely different? Our buses are impact resistant.

Try this experiment. Obtain a cross section piece of a Diamond bus and one from a metal competitor. Place each cross section on the ground. Next, hit both pieces with the same amount of force using a mallet. Which piece does the dent appear?



VIP 2200 Advantages
  • Rust Free
  • Impact Resistant
  • Smooth, Quiet Ride
  • Superior Temperature Efficiency
Standard Body Equipment
  • 24"x36" Solid KINRO Windows
  • 5 Yr/100,000 Mile Body Limited Warranty
  • Double Wall Fiberglass/Honeycomb Body Construction
  • Oxford White Gel-Coat Exterior
  • ABS Interior Walls, Driver's Area & Light Bars w/CMI Fabric Ceiling

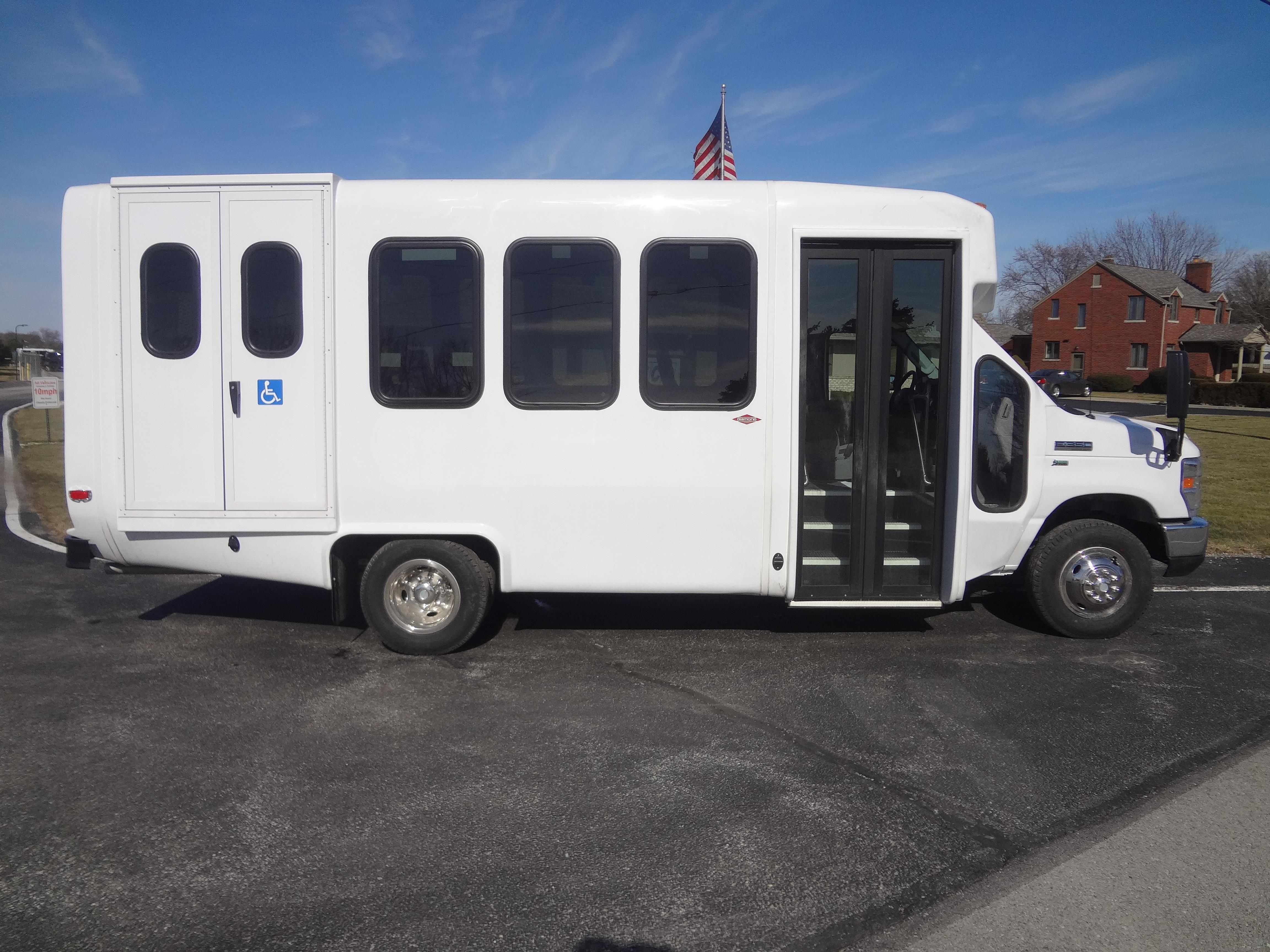

  • 32" Double-Out Electric Front Entry Door
  • Exterior Clearance Lights
  • Door Actuated Dome & Stepwell LED Lights
  • Stanchions, Guardrails, LH & RH Assist Rail

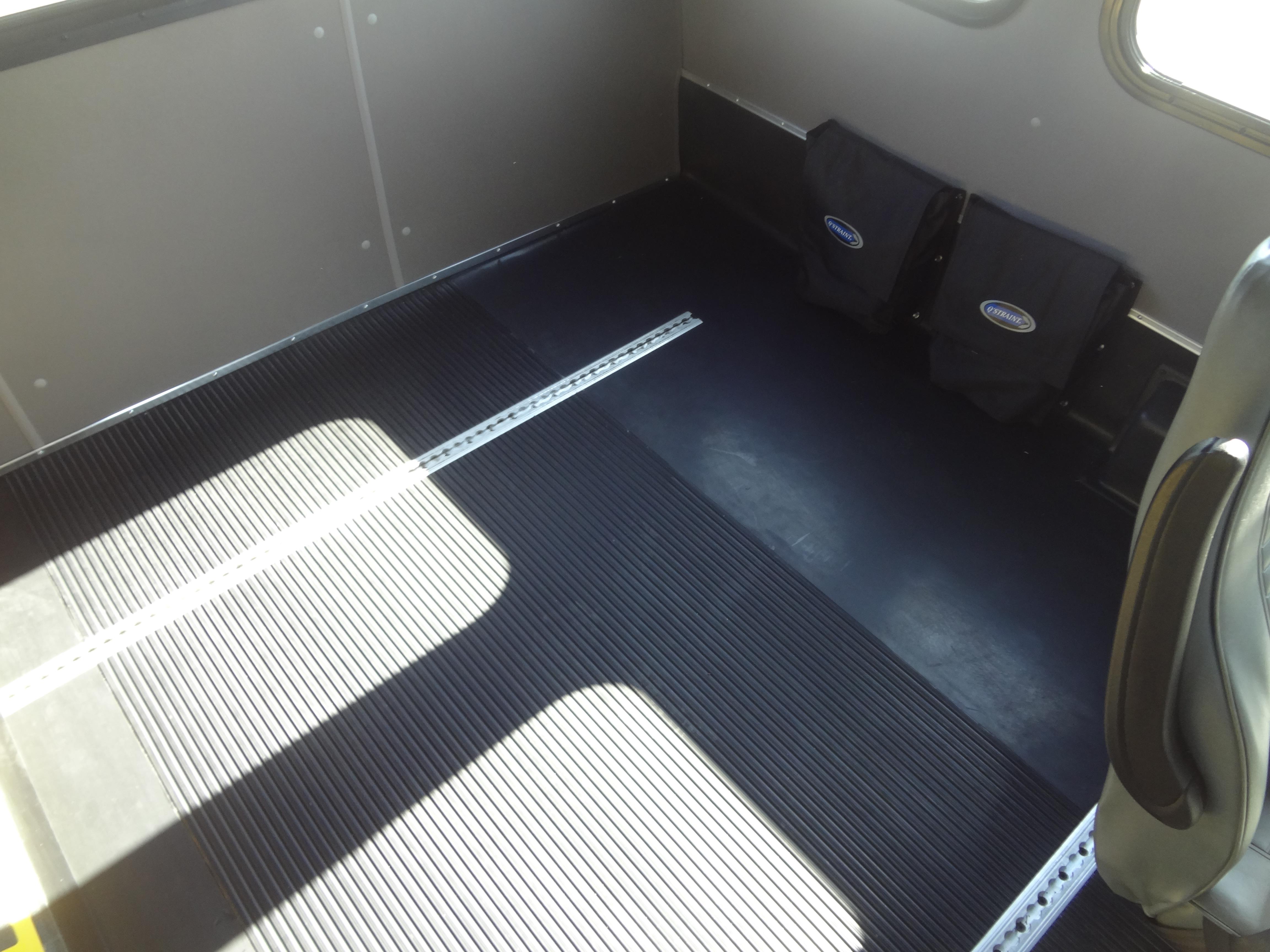

  • Black Transit Rubber Flooring
  • Black Transit Ribbed Rubber Aisle
  • Steel Structure (1 1/2") Floor
  • 3/4" Marine Grade Plywood Floor
  • White Nosing on Entrance Steps
  • Fold-away Glass Mount Mirror, Remote, w/Built In Convex
  • Entrance Door Exterior Light

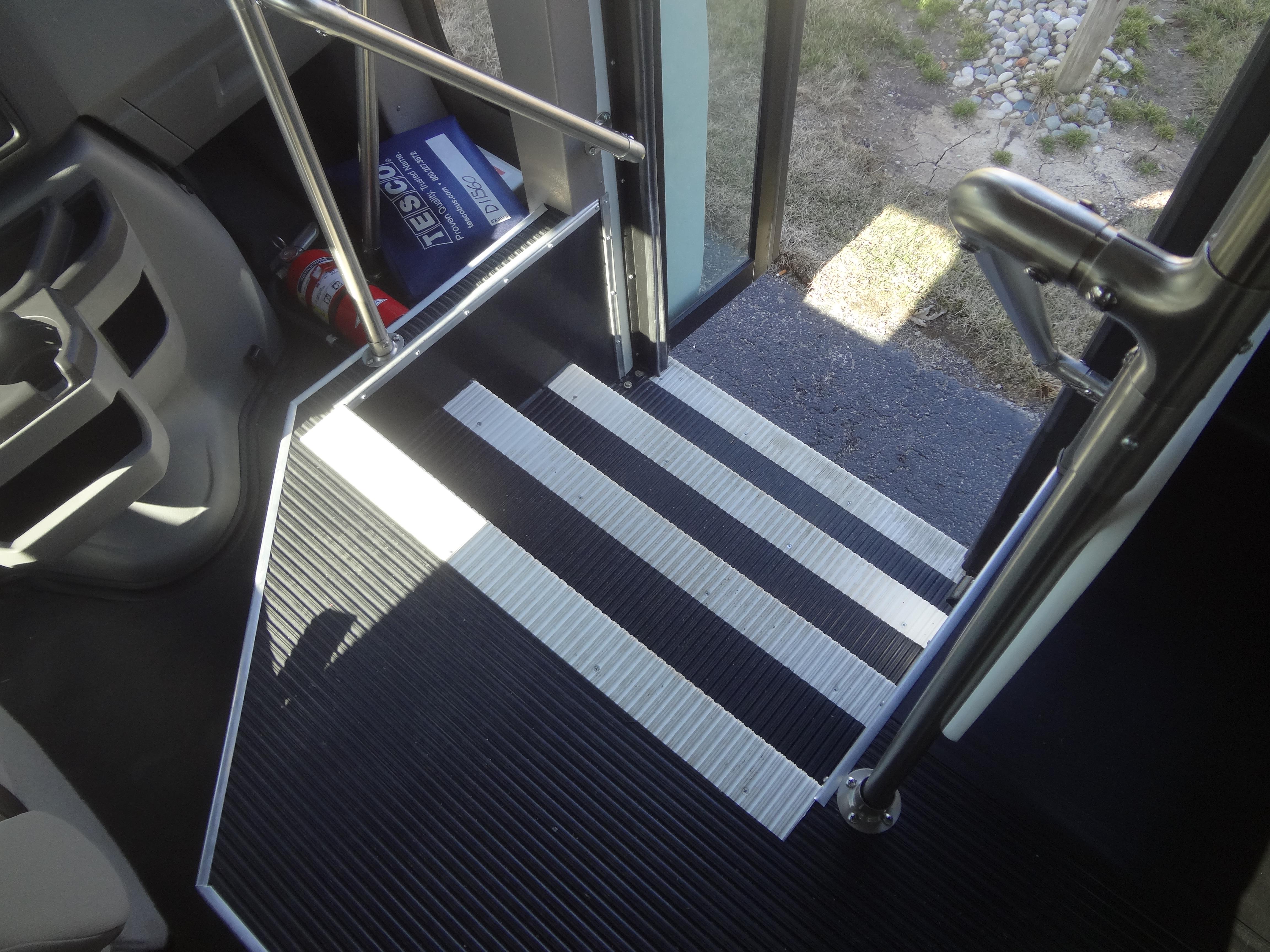

  • Composite Entrance Step

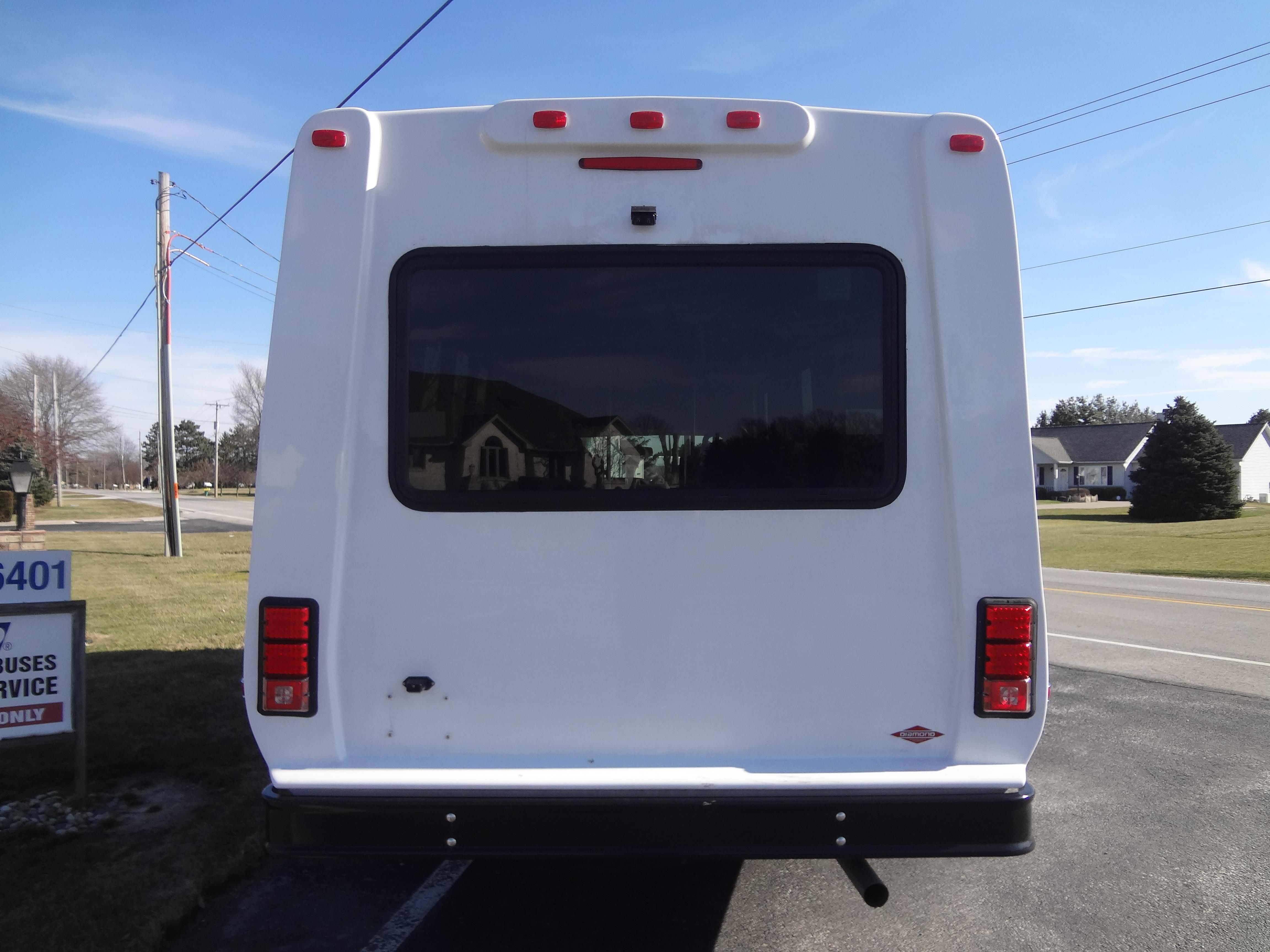

  • Rear Egress Window
  • Exterior LED Lighting
  • Interior LED Lighting
Standard Chassis Equipment
  • 6.8L V10 EFI Gasoline Engine
  • 225 Amp Alternator (Gas)
  • Electronic 6-Speed Automatic Transmission

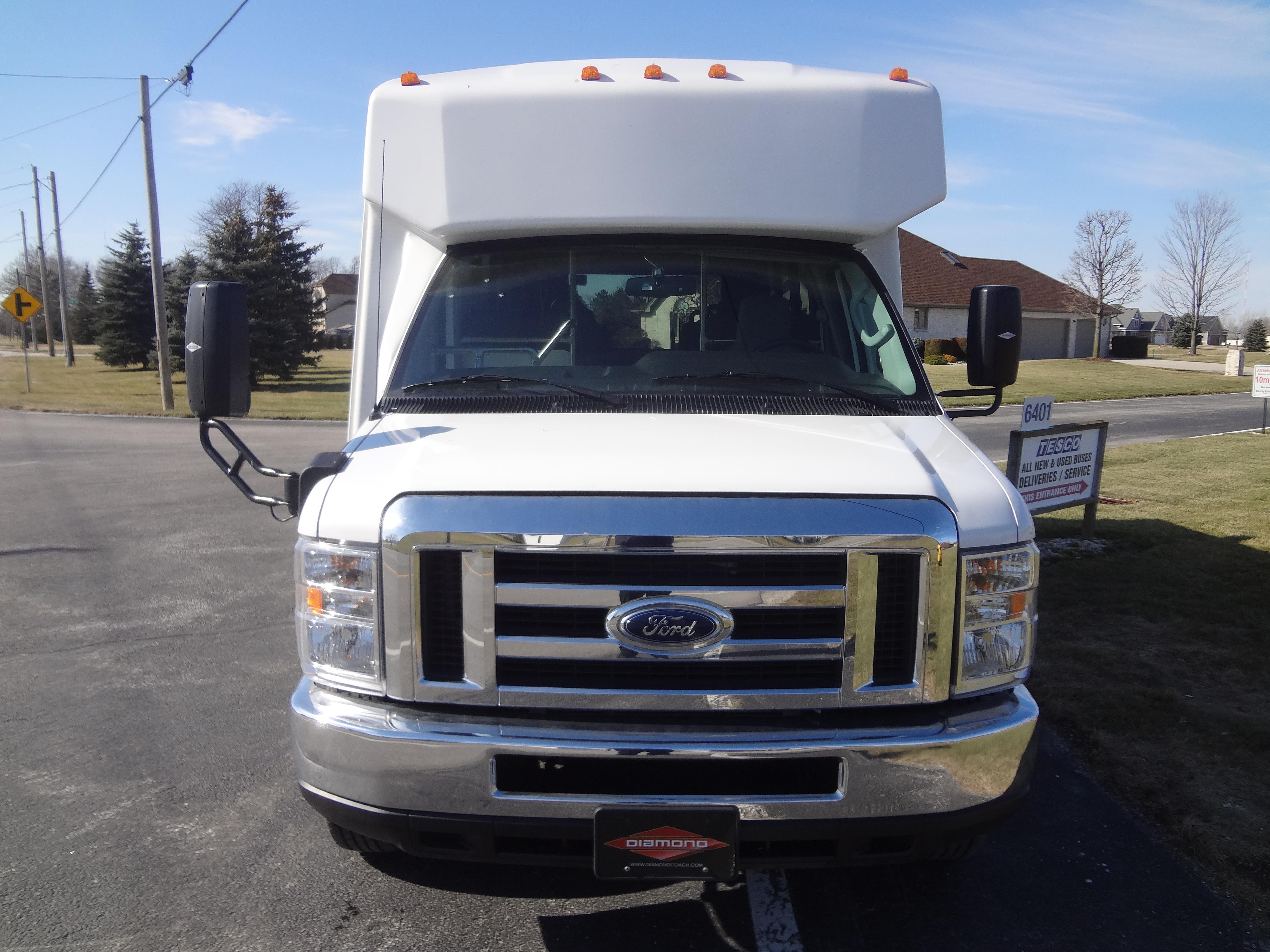

  • Chrome Front Bumper
  • Painted White Wheels
  • Solar Tinted Safety Glass
  • Oxford White Cab Exterior
  • Charcoal Interior
  • Front Axle 5,000 Lb (GAWR)
  • Rear Axle 9,000 Lb (GAWR)
  • 40 Gallon Fuel Tank
  • Tilt Steering Wheel, Cruise Control
  • Radial Tires - LT225/75Rx16 EBSW (6)
  • Auxiliary Transmission Oil Cooler
  • Dual Electric Horns
  • 4.56 Rear Axle Ratio (Gas Only)
  • Auxiliary Battery
  • Engine Block Heater
  • AM/FM/CD Radio
  • 50 State Emission
  • Daytime Running Lights

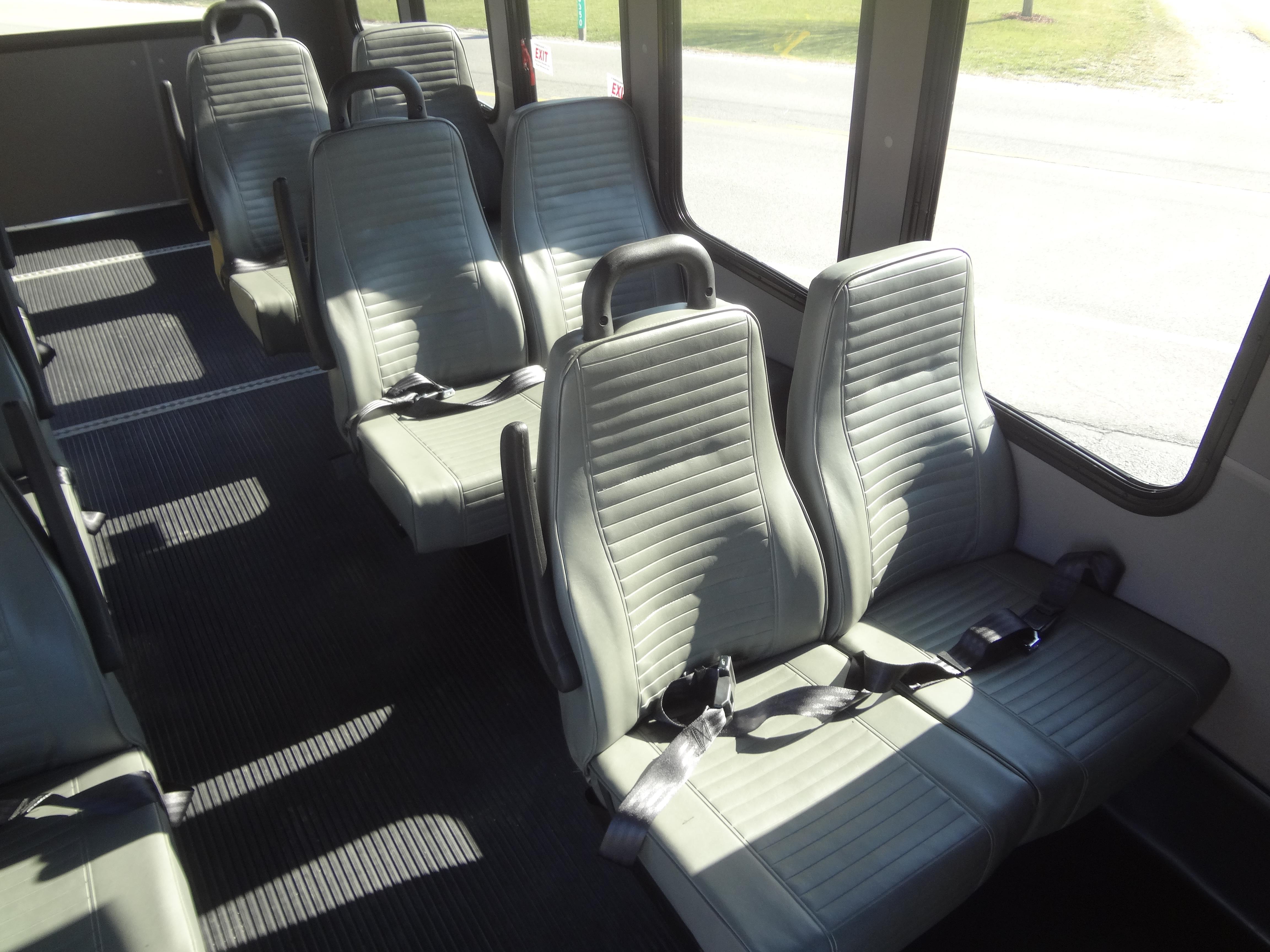

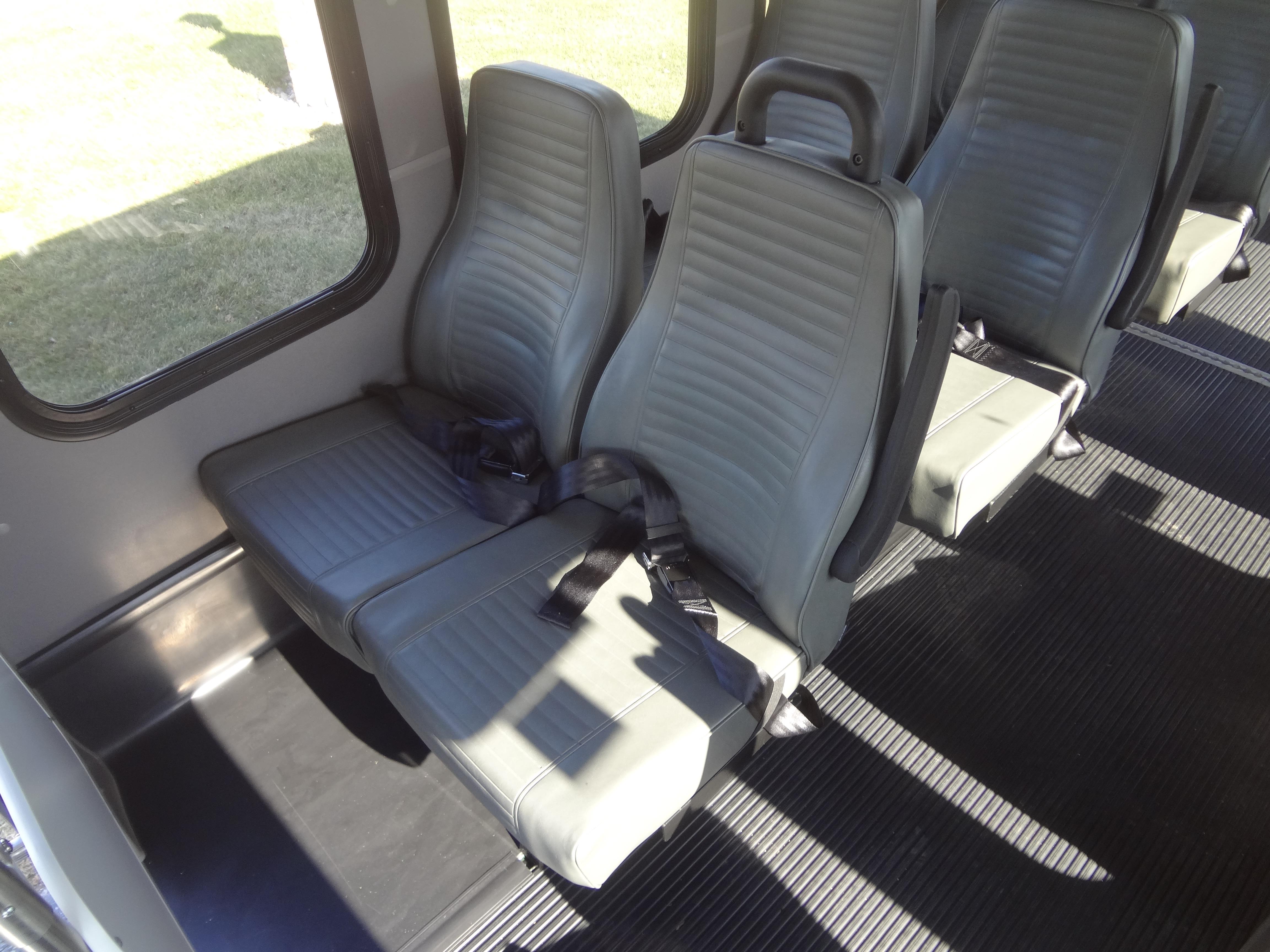

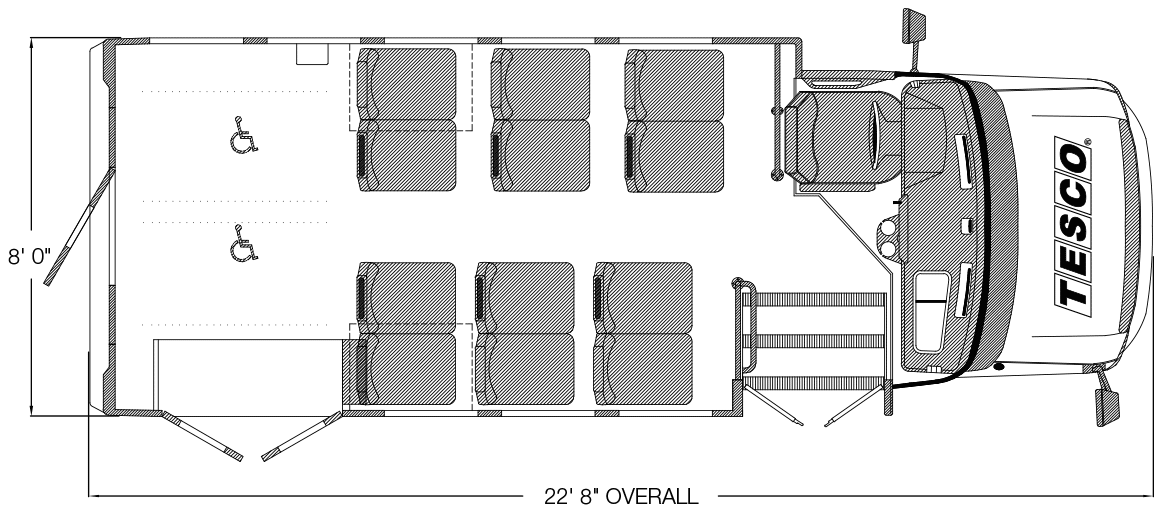

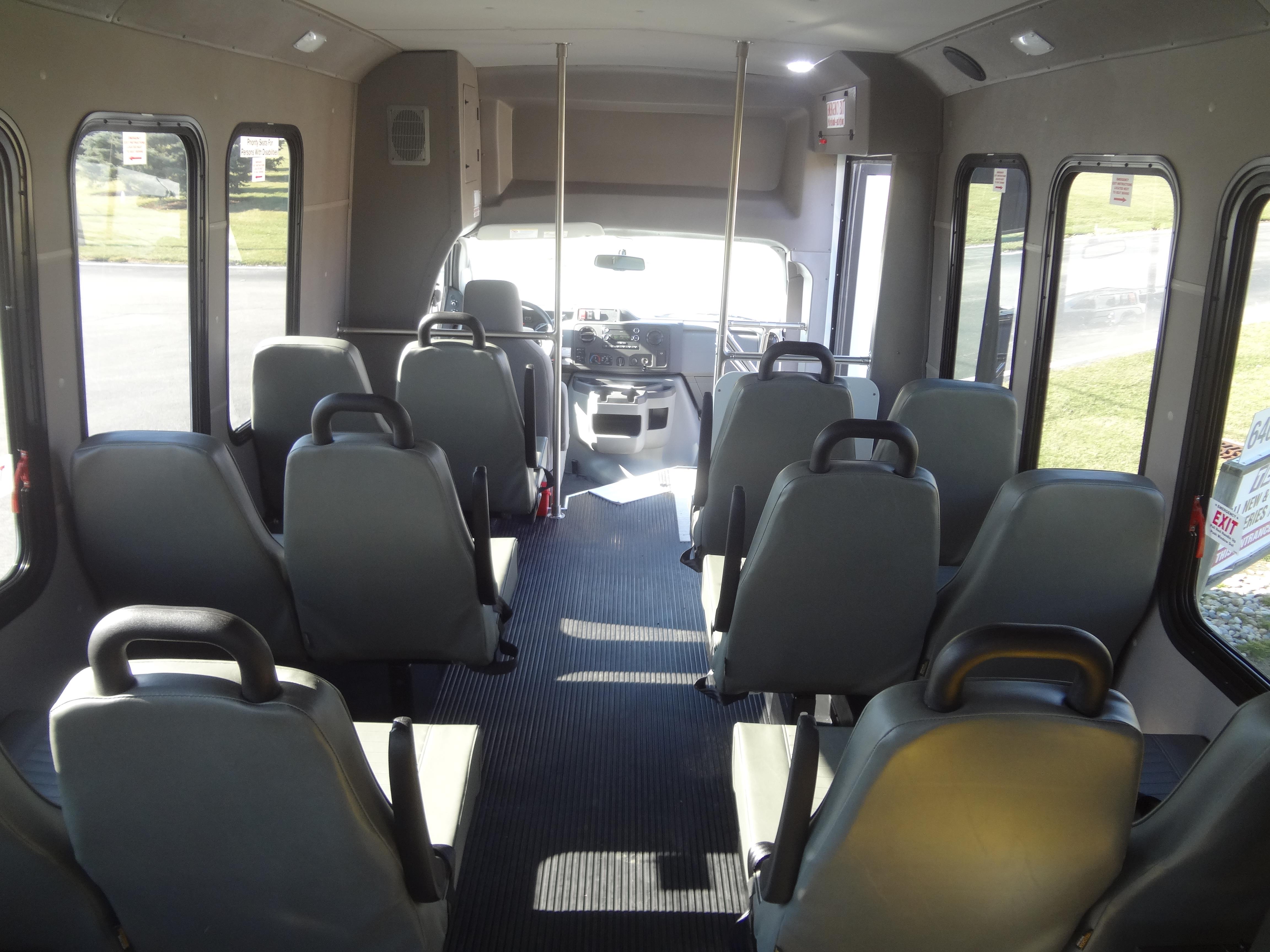

Seating Options

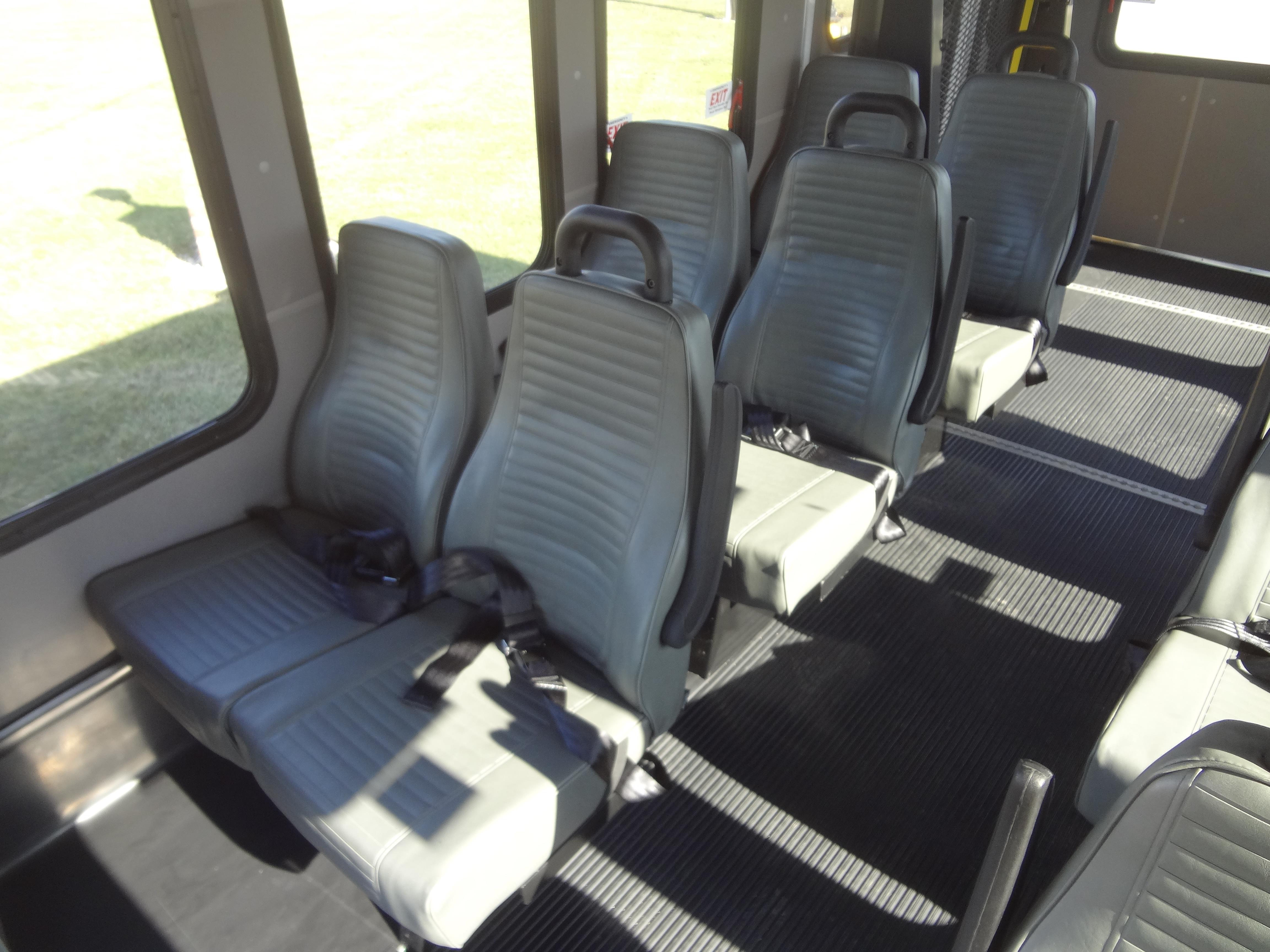

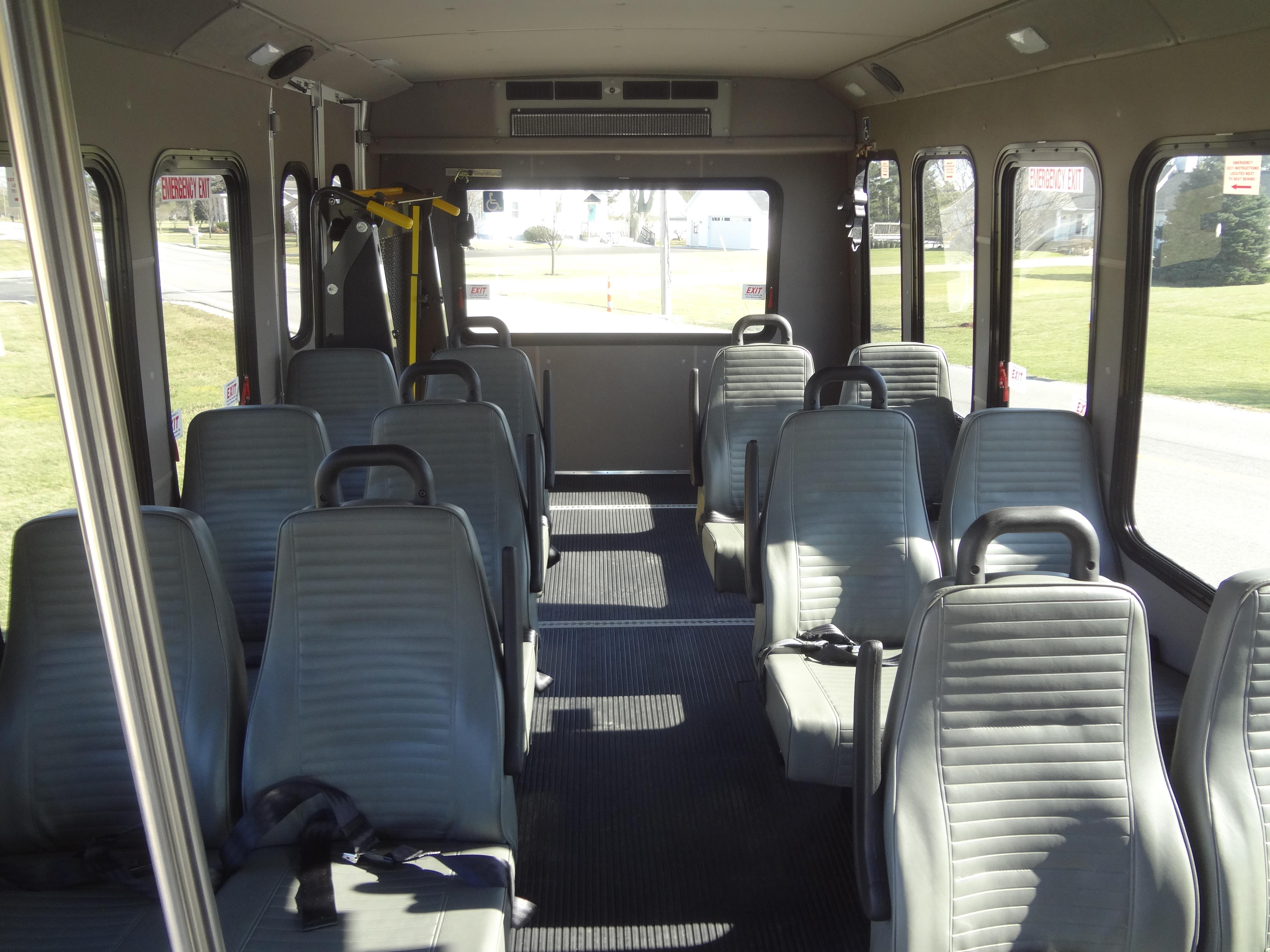

At TESCO Bus, we want the process of purchasing a bus to be as easy as possible. Finding the perfect seat for your bus may seem overwhelming, but we are here to help. We are a distributor for Freedman seats, the most common of all seating in the transportation industry. Freedman offers endless amounts of seating types from the low back vinyls to the high back recliners, both common choices amongst our customers. To take a deeper a look at some of the Freedman seats and products that TESCO offers, click here.

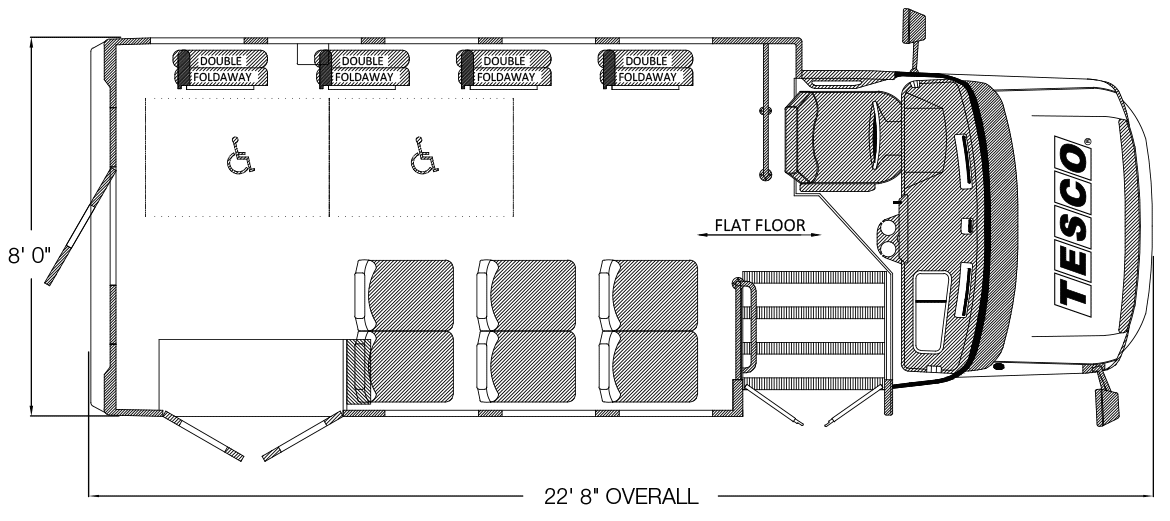

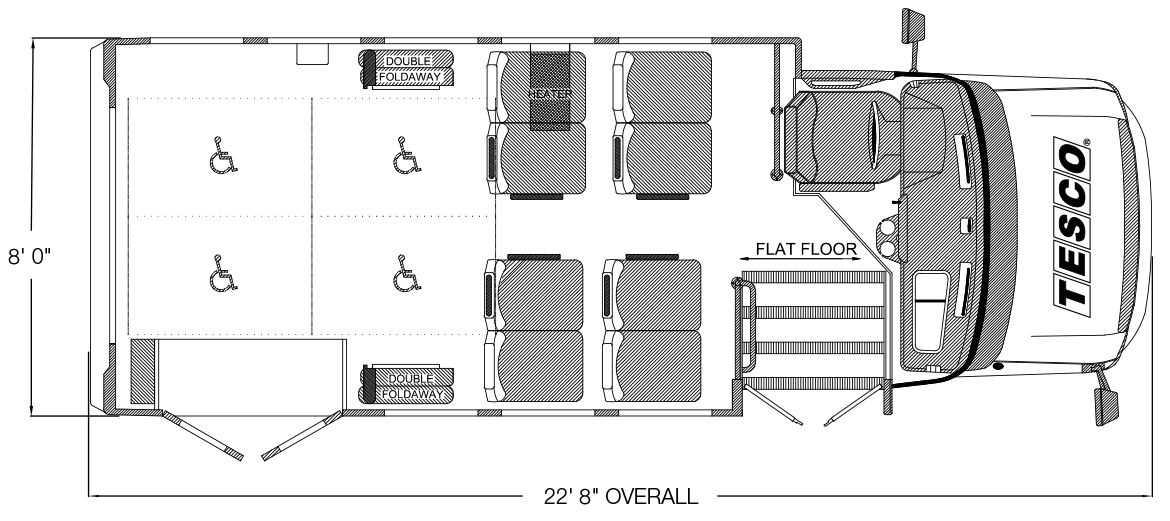

  • Chassis Choices: Ford and Chevrolet (all data below based on Ford)
  • Overall Length: 22′ – 8″
  • Overall Height: 9′ – 6″ (Maximum varies by floor plan)
  • Exterior Width: 8′-0″
  • Interior Height: 75″
  • Interior Width: 93″
  • Entry Door Width: 36″ (31.5″ x 80″ clear opening)
  • Maximum Passengers: 21

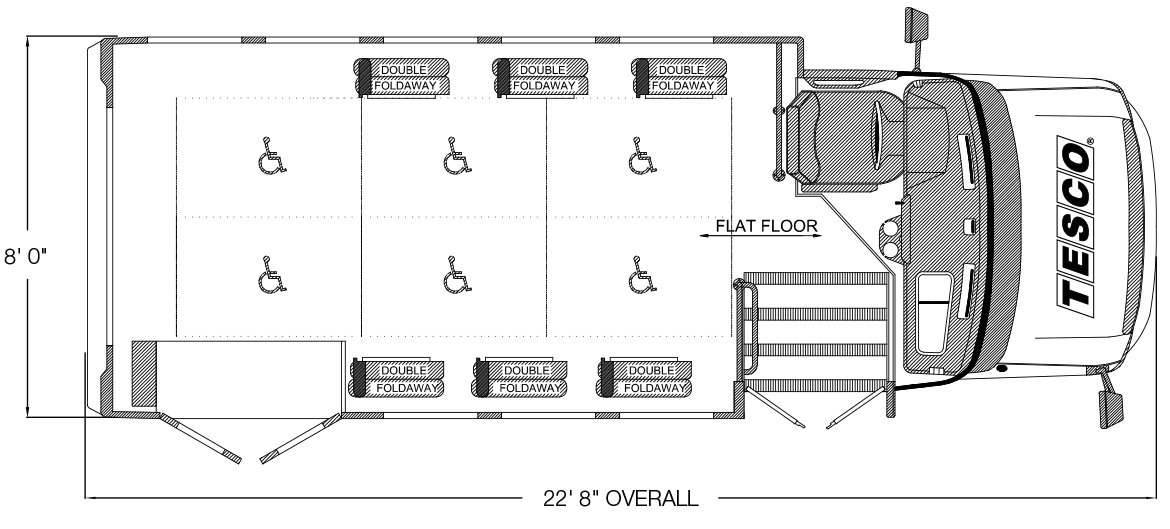

  • Maximum W/C Placements: 6
  • Engine Choices: Gas
  • Lift Options: Front or Rear
