Champion Bus · Discontinued
LF Transporter
7 floorplans, full specifications and what's on the lot right now.

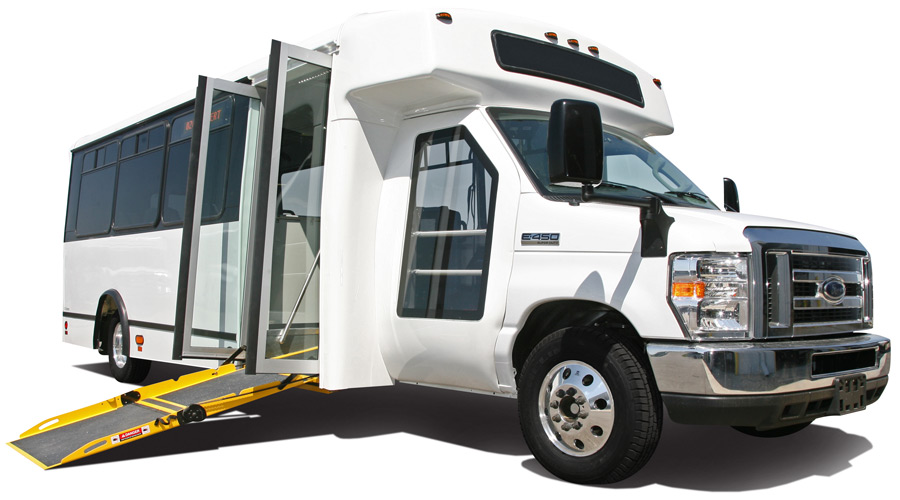

About the LF Transporter
The LF Transporter boasts heavy-duty performance. In addition to single-step entry, this medium-duty shuttle bus offers the greatest passenger capacity in the medium-duty category.
Floorplans
7 layouts for the LF Transporter. Tap a plan to see it full size; your rep can spec seating, wheelchair positions and storage from any of them.
-

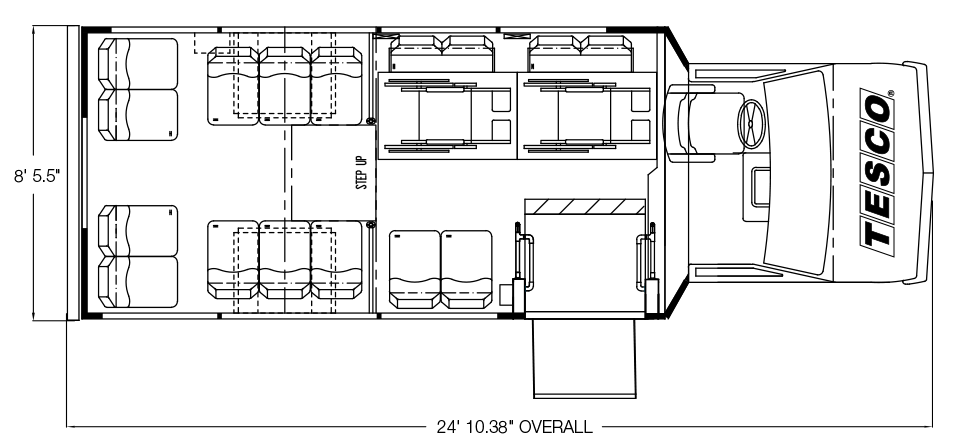

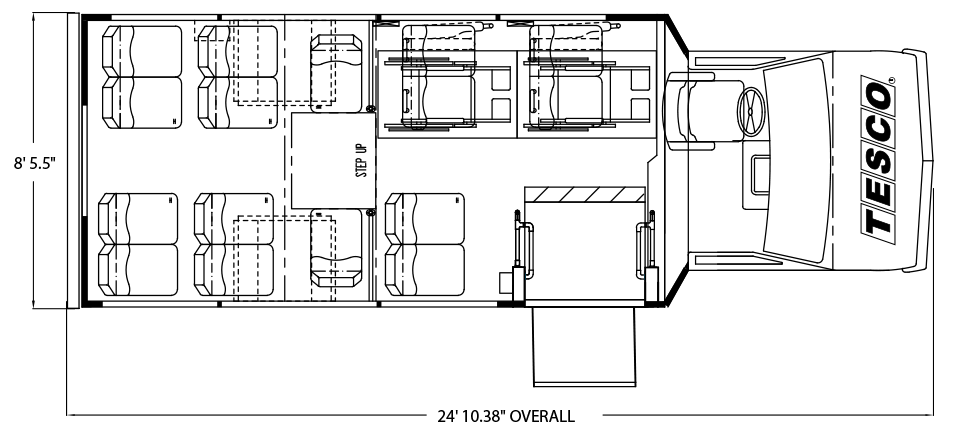

A 12 passengers, 2 wheelchair positions
-
B 12 passengers, 2 wheelchair positions
-

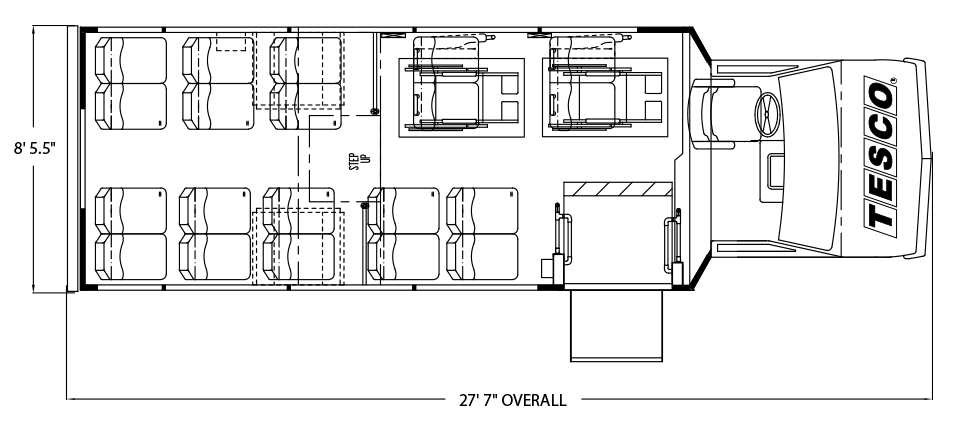

C 16 passengers, 2 wheelchair positions
-

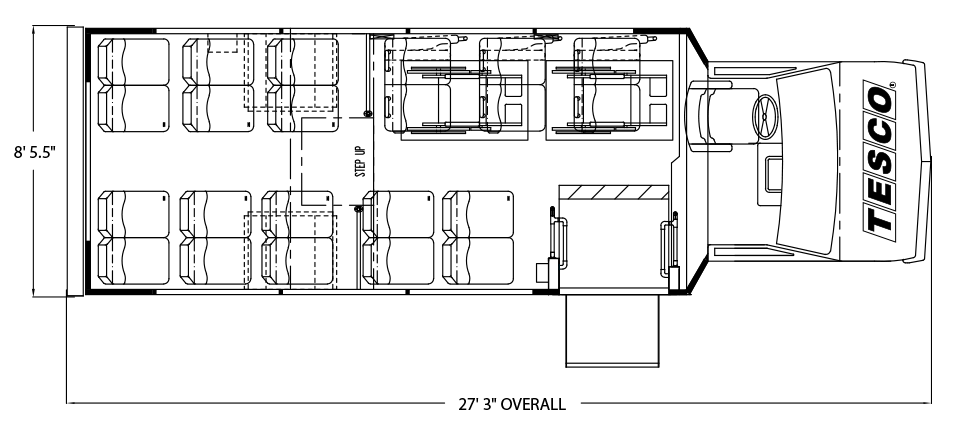

D 16 passengers, 2 wheelchair positions
-

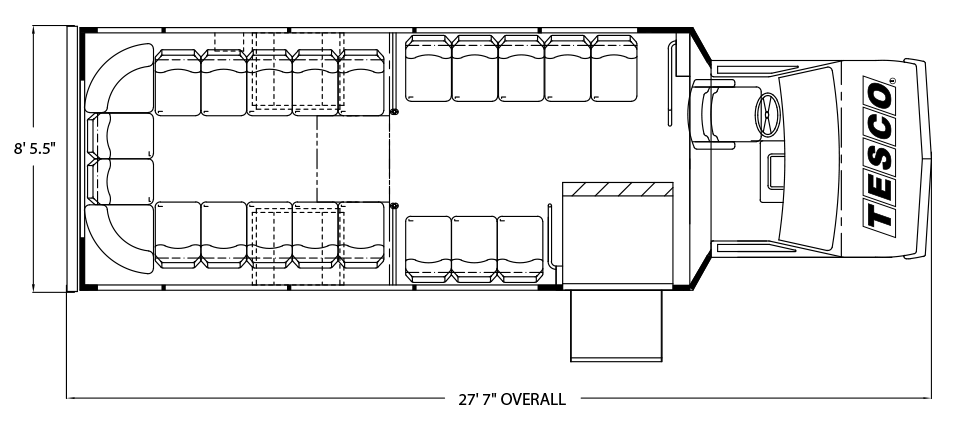

E 20 passengers
-

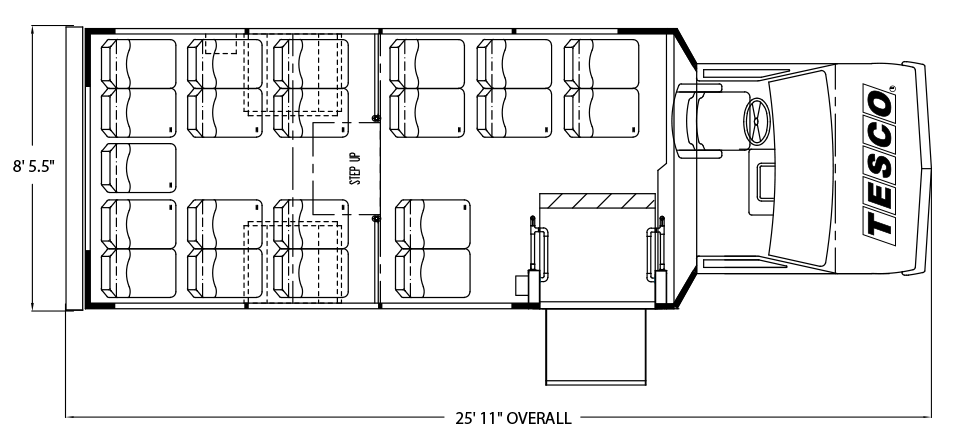

F 21 passengers
-

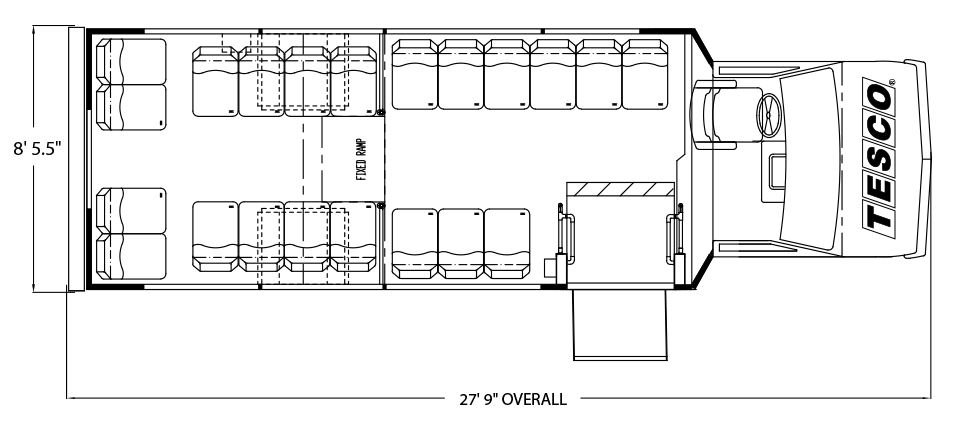

G 21 passengers
Features
FLEXBUS™ Technology
- lntelliSYNC® Electronically Controlled "Smart" Suspension system - Increased stability and ride quality for all passengers
- Automatic Self-Leveling - Level floor throughout the passenger compartment regardless of the crown of the road at full kneel and ride height
- Equalizer Ramp - Automatically senses the height of the ramp deployment surface and adjusts to equate all sections of the ramp to provide all passengers with the easiest possible single-grade slope accessibility
- OverRise - The innovative OverRise feature lifts the entire vehicle up to 2.5" inches higher than the OEM ride height at the push of a button
- Auxiliary Air Support System - The air suspension system contains an emergency auxiliary air support system, which is separate and independent of the vehicle's main air operating system
- 3.5" LCD Digital display - For Real-Time Ramp/ Suspension System Performance & Diagnostics
- Heavy-duty High-capacity DC Driven Suspension Compressor - Made to kneel at every stop and continuously maintain air pressure. Due to the high CFM compression rate. full air system recovery from a full kneeled position to vehicle ride height within 3.5 seconds ... Industry’s Best!
Ford Chassis Standards
- 55 gallon fuel tank
- 225 amp alternator
- Dual 650 CCA battery
- Power 4-wheel disc (ABS)
- LT225/75RX16E tires
- Tilt cruise
Chevrolet Chassis Standards
- Dual 145-amp alternator-diesel dual 770 CCA battery
- 57 gallon fuel tank
- Power disc brakes
- TIRESLT225/75R 16E, BSW all season
- Tilt cruise
- Chrome appearance package
International Chassis Standards
- Automatic Allison transmission
- Brake system, hydraulic
- 320 amp alternator
- 225/70R19.5 R250F tires
- 40 gallon fuel tank
Conversion Standards
- Airporter style body w/fiberglass plug window
- Electronic 4-point auto-leveling full-kneel suspension system
- DC driven air compressor
- Galvanized steel cage construction
- Galvanized wheelwells
- Street side exhaust
- Mud flaps
- Engine block heater OEM
- Self-diagnosing 12 volt electrical panel (fuses)
- Door activated entrance lighting
- Exterior key switch - entrance door
- Plywood floor
- Gerflor flooring
- London smoke interior
- Solid windows
- Rear egress window
- Drip rail over windows
- Composite exterior
- Roof one piece composite
- Fuel fill door s/s with thumb lock
- Black steel powder coated rear bumper
- Electric passenger entry door
- Right and left hand grab rail at entry
- Padded modesty panels
- ROSCO manual mirrors
- Track seating
- Driver's seat OEM
- Full body undercoating
More from Champion Bus
No LF Transporter orders are on the lot today; these are the other Champion Bus models TESCO carries, with what's in stock on each.

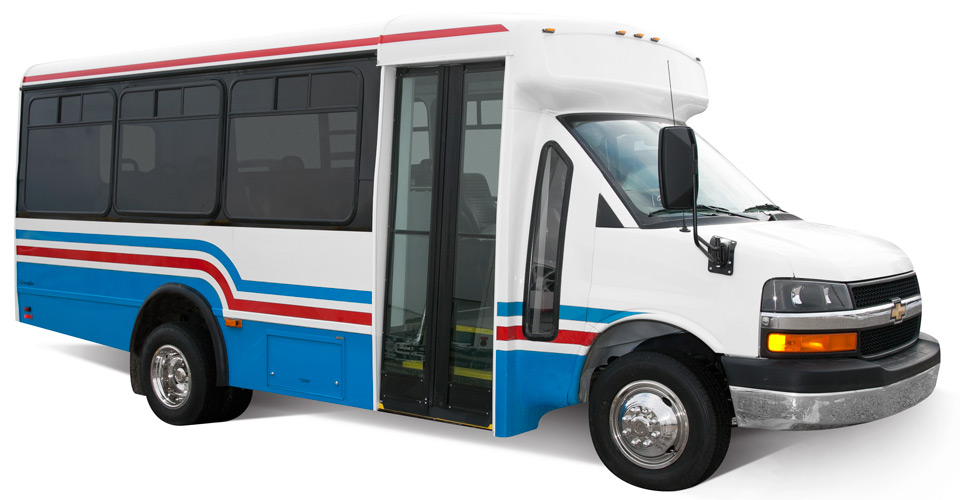

Crusader
