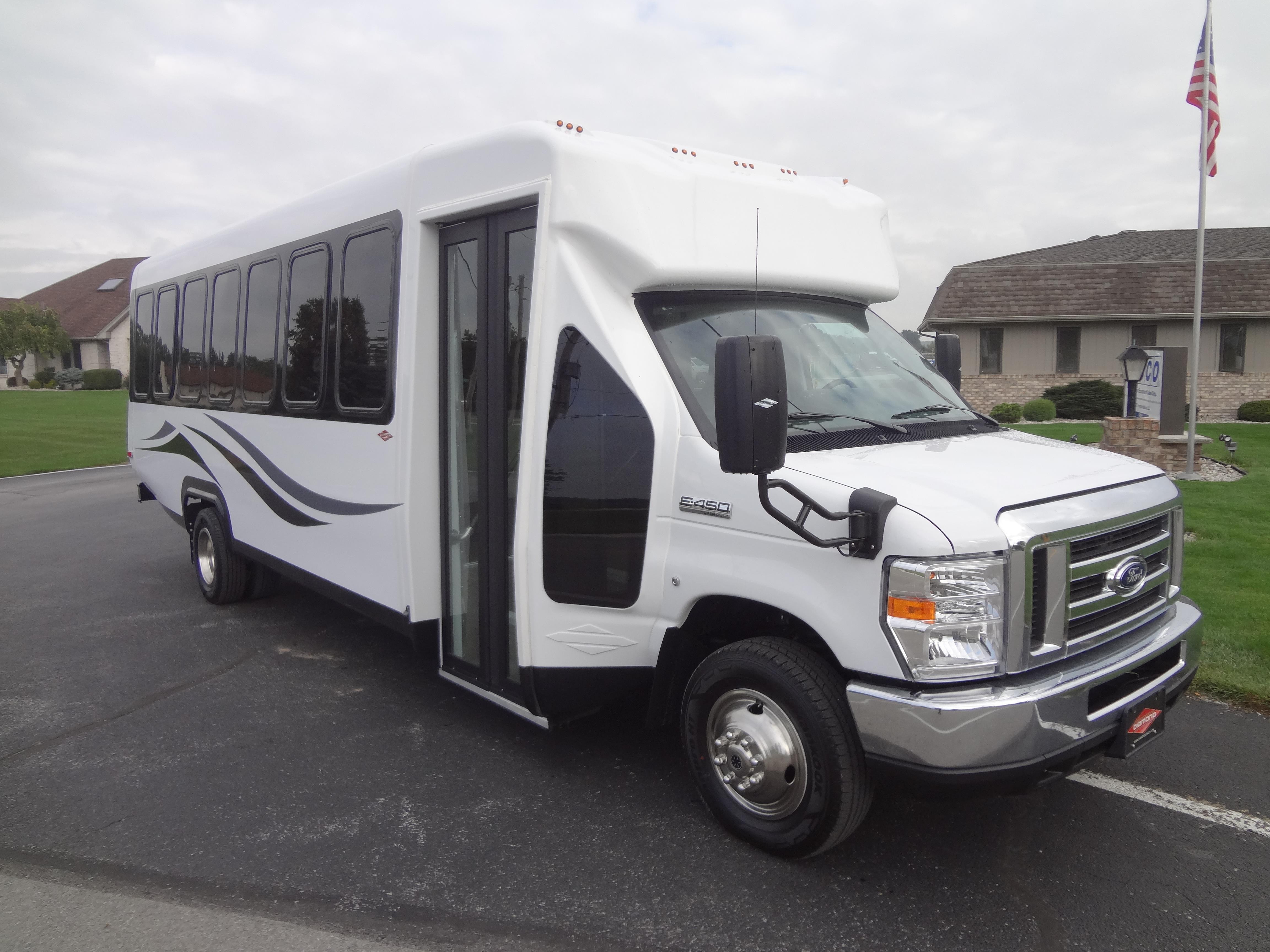

Diamond Coach

VIP 2800

5 floorplans, full specifications and what's on the lot right now.

Capacity
Up to 28 passengers
Chassis
Ford E-450
Floor
Standard
Request info See the floorplans

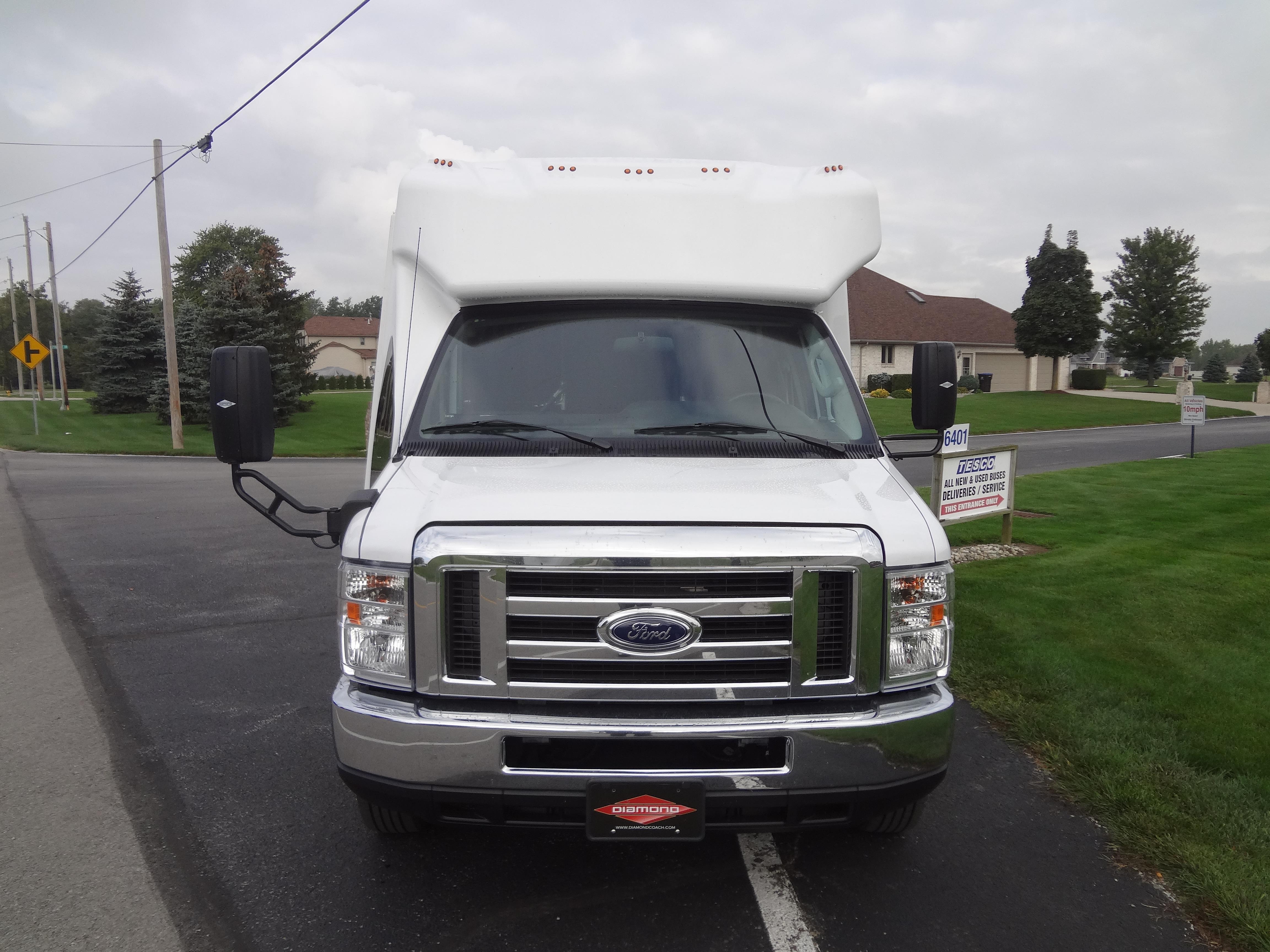

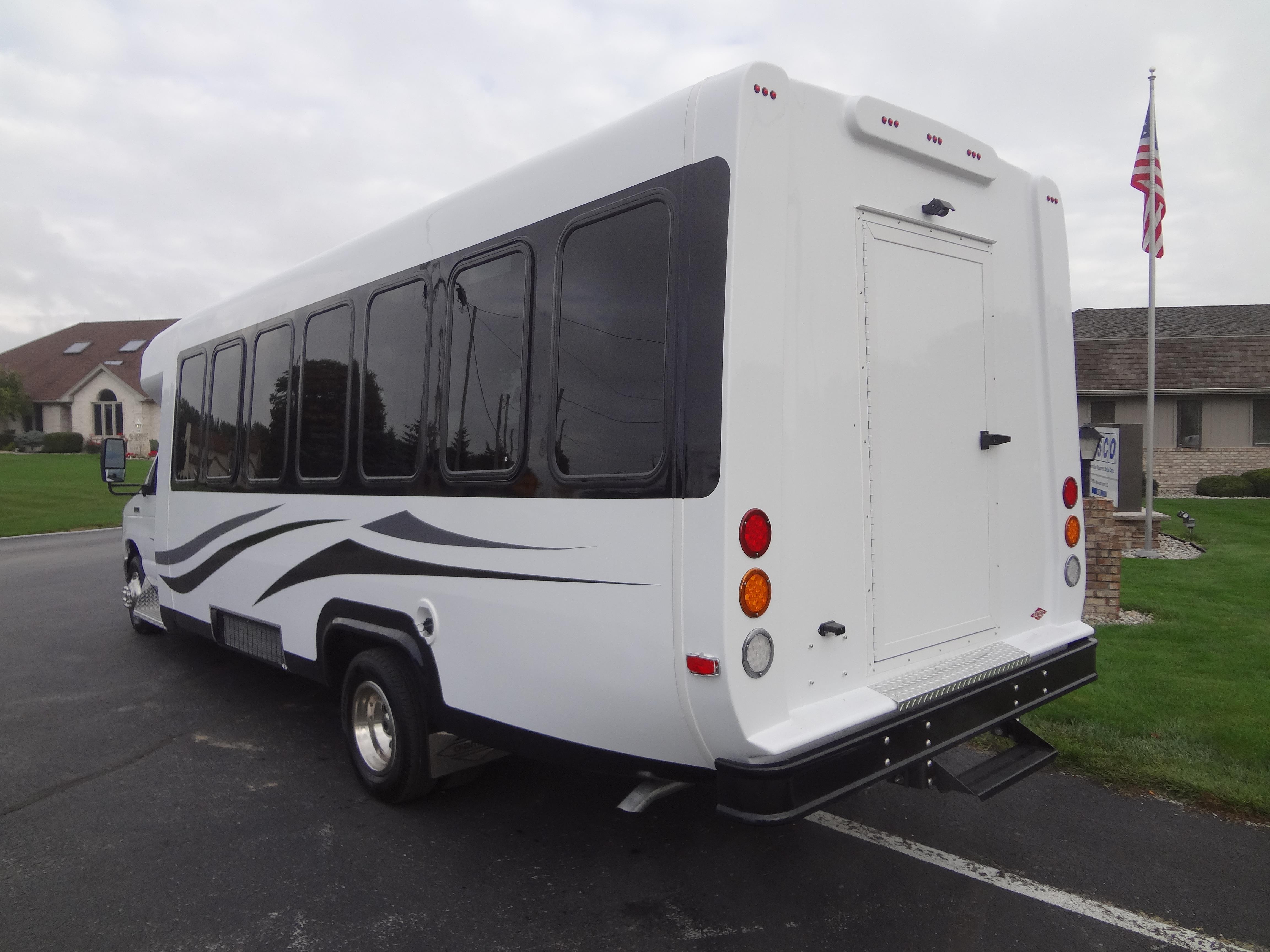

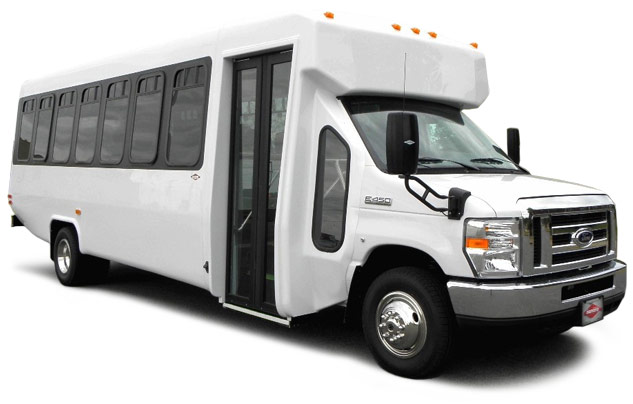

About the VIP 2800

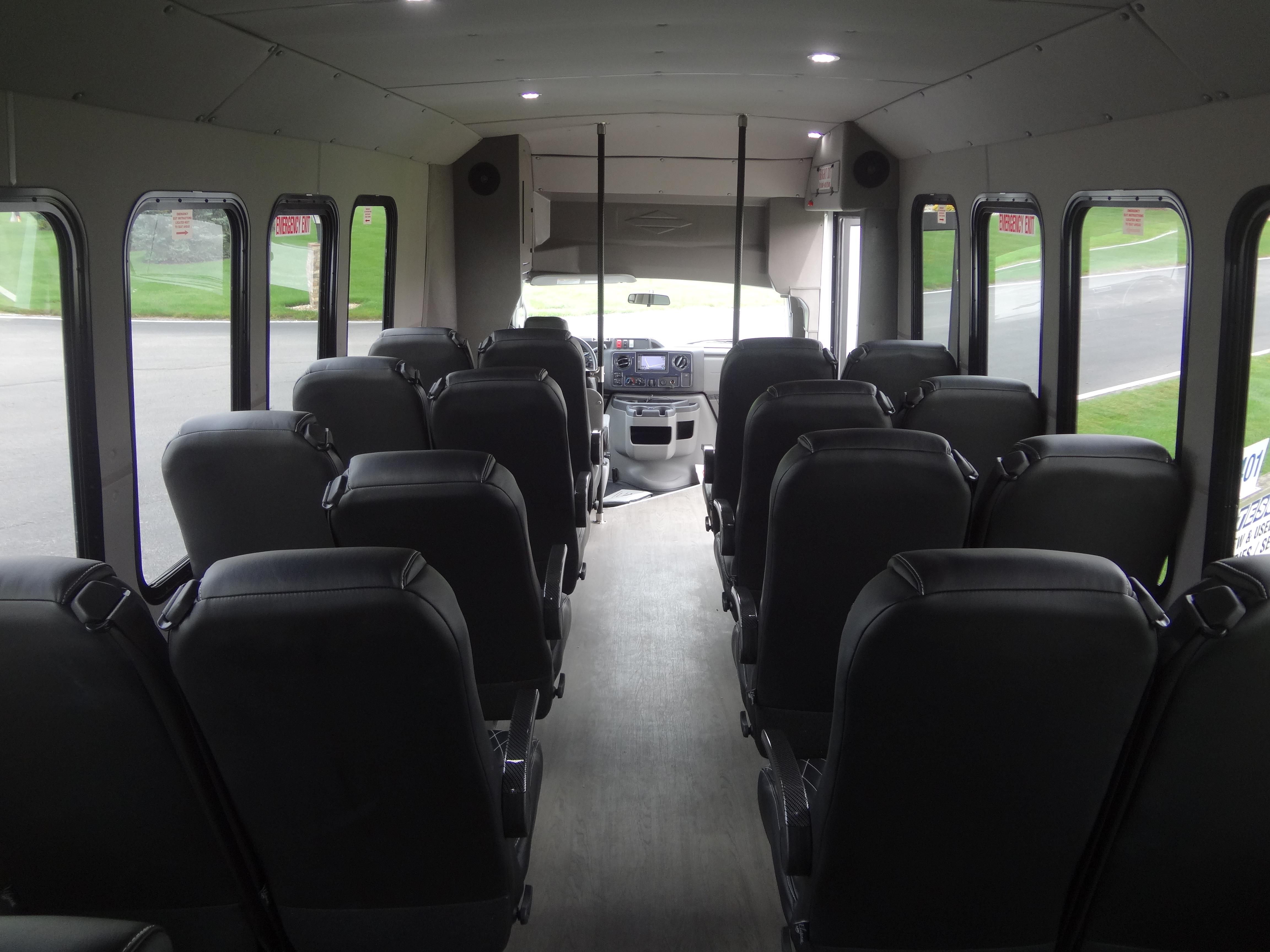

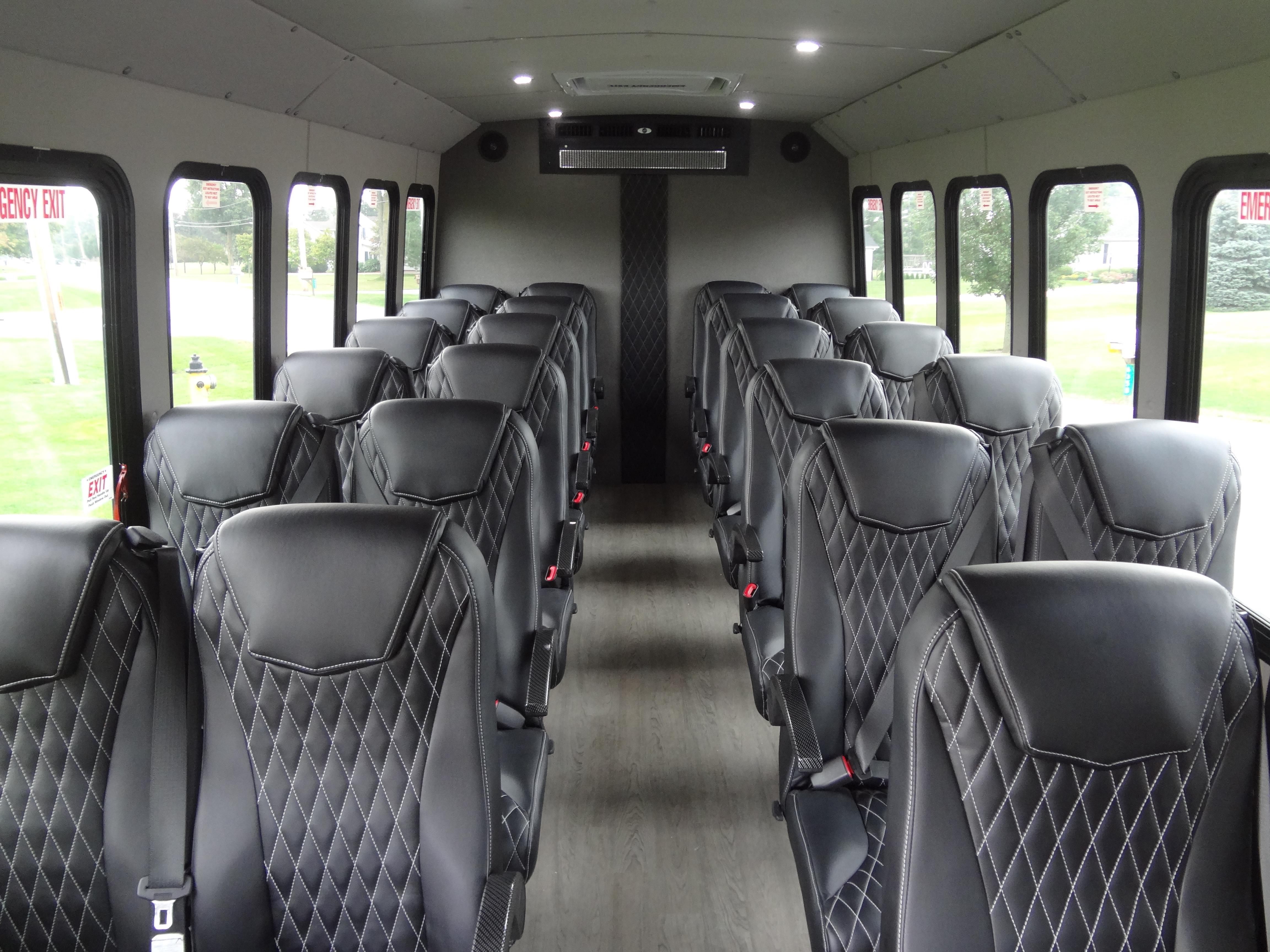

While comfort is one thing, viewing the scenery is just as important for tour operators. That’s why each seat location has its own window.

Back to Diamond Coach

Specifications

Capacity
Up to 28 passengers
Floor Type
Standard
Exterior Height
9' 7"
Exterior Length
27' 7"
Interior Width
93"
Interior Height
75" to 78"
Chassis Model
Ford E-450
Co-Pilot
No

Floorplans

5 layouts for the VIP 2800. Tap a plan to see it full size; your rep can spec seating, wheelchair positions and storage from any of them.

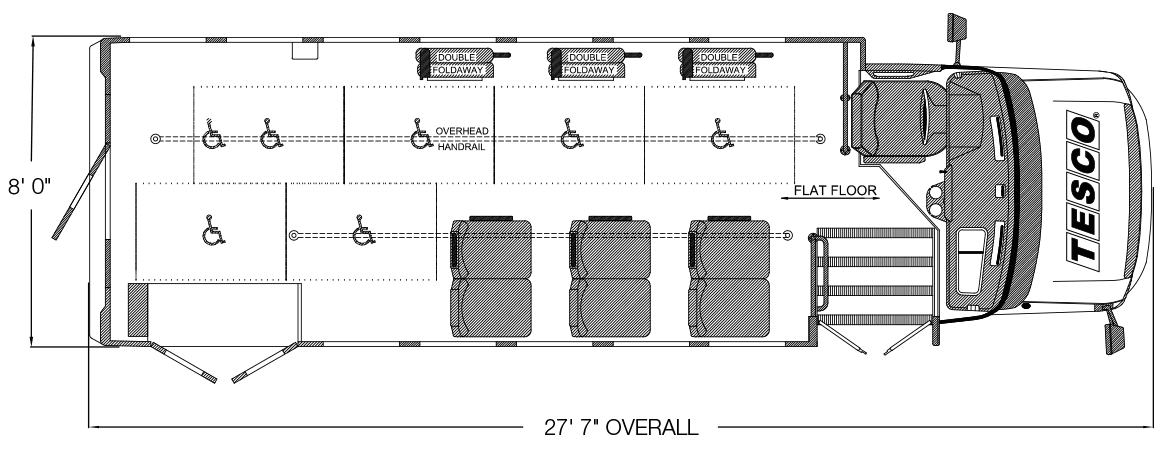

  • Diamond Coach VIP 2800 floorplan A: 6 passenger with 6 wheelchair positions and 3 double foldaways

    A 6 passenger with 6 wheelchair positions and 3 double foldaways

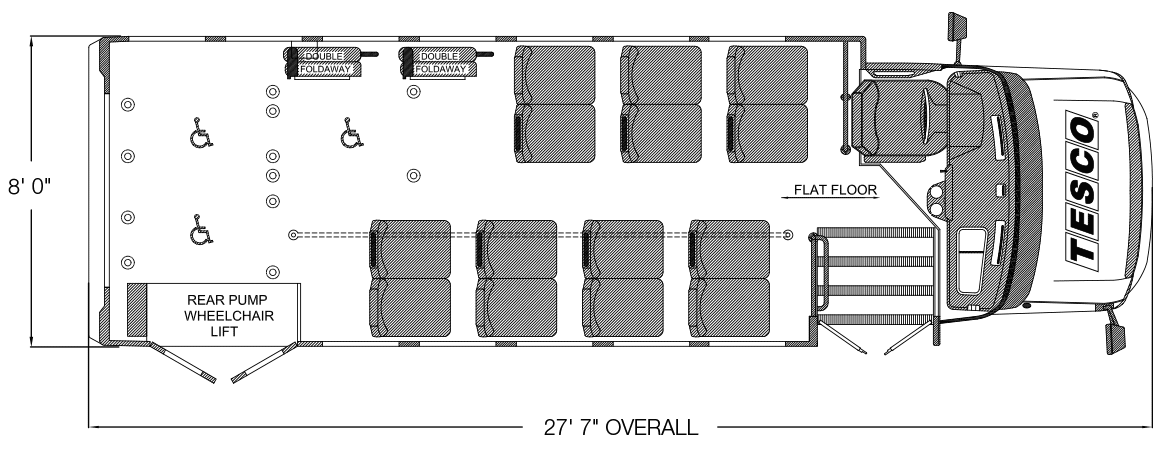

  • Diamond Coach VIP 2800 floorplan B: 14 passenger with 3 wheelchair positions and 2 double foldaways

    B 14 passenger with 3 wheelchair positions and 2 double foldaways

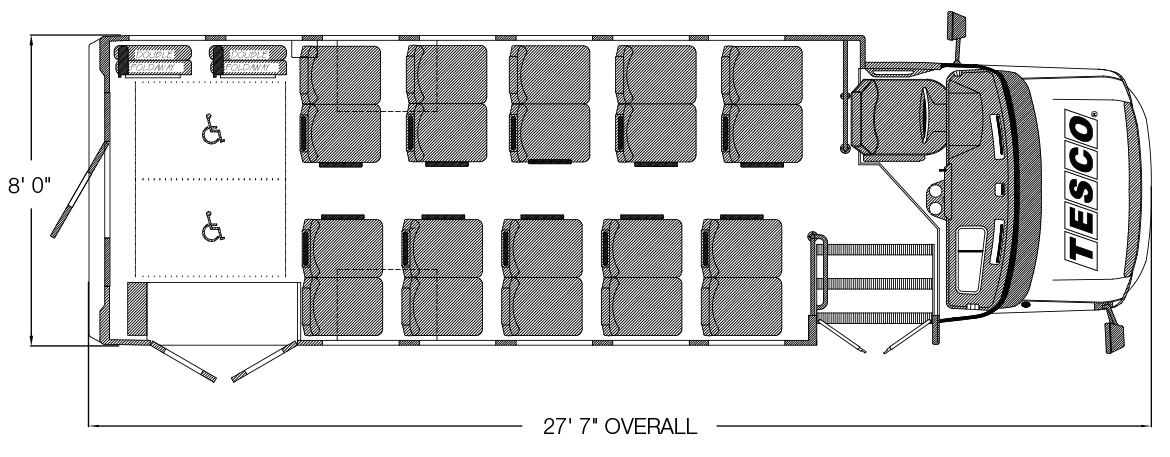

  • Diamond Coach VIP 2800 floorplan C: 20 passenger with 2 wheelchair positions and 2 double foldaways

    C 20 passenger with 2 wheelchair positions and 2 double foldaways

  • Diamond Coach VIP 2800 floorplan D: 24 passenger with rear luggage

    D 24 passenger with rear luggage

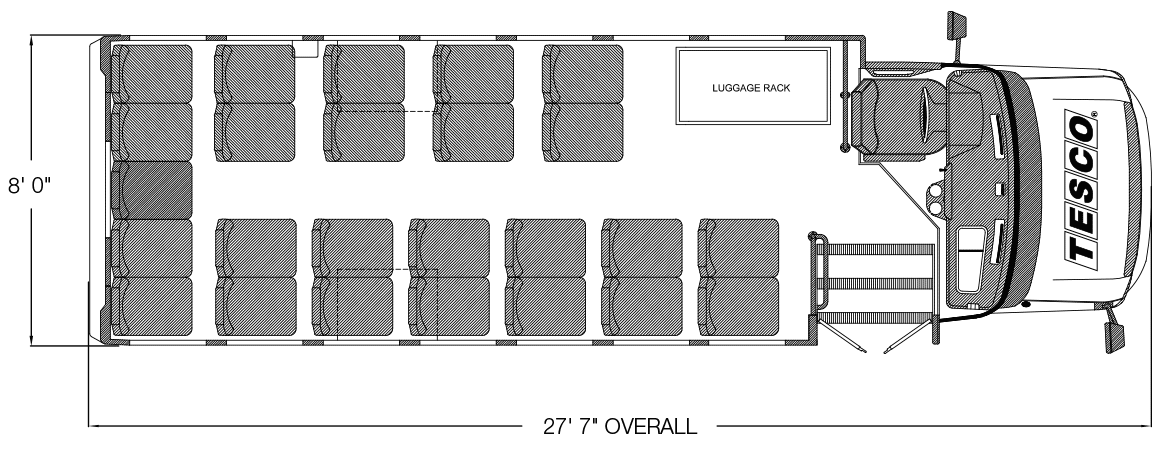

  • Diamond Coach VIP 2800 floorplan E: 25 passenger with luggage rack

    E 25 passenger with luggage rack

Features

VIP 2800 Advantages

  • Rust Free
  • Impact Resistant
  • Smooth, Quiet Ride
  • Superior Temperature Efficiency

Standard Body Equipment

  • 24"x36" Solid Kinro Windows
  • 5 Yr/100,000 Mile Body Limited Warranty
  • Double Wall Fiberglass/Honeycomb Body Construction
  • Oxford White Gel-Coat Exterior
  • ABS Interior Walls, Driver's Area & Light Bars w/CMI Fabric Ceiling
  • 32" Double-Out Electric Front Entry Door
  • Exterior Clearance Lights
  • Door Actuated Dome & Stepwell LED Lights
  • Color Coded Wiring

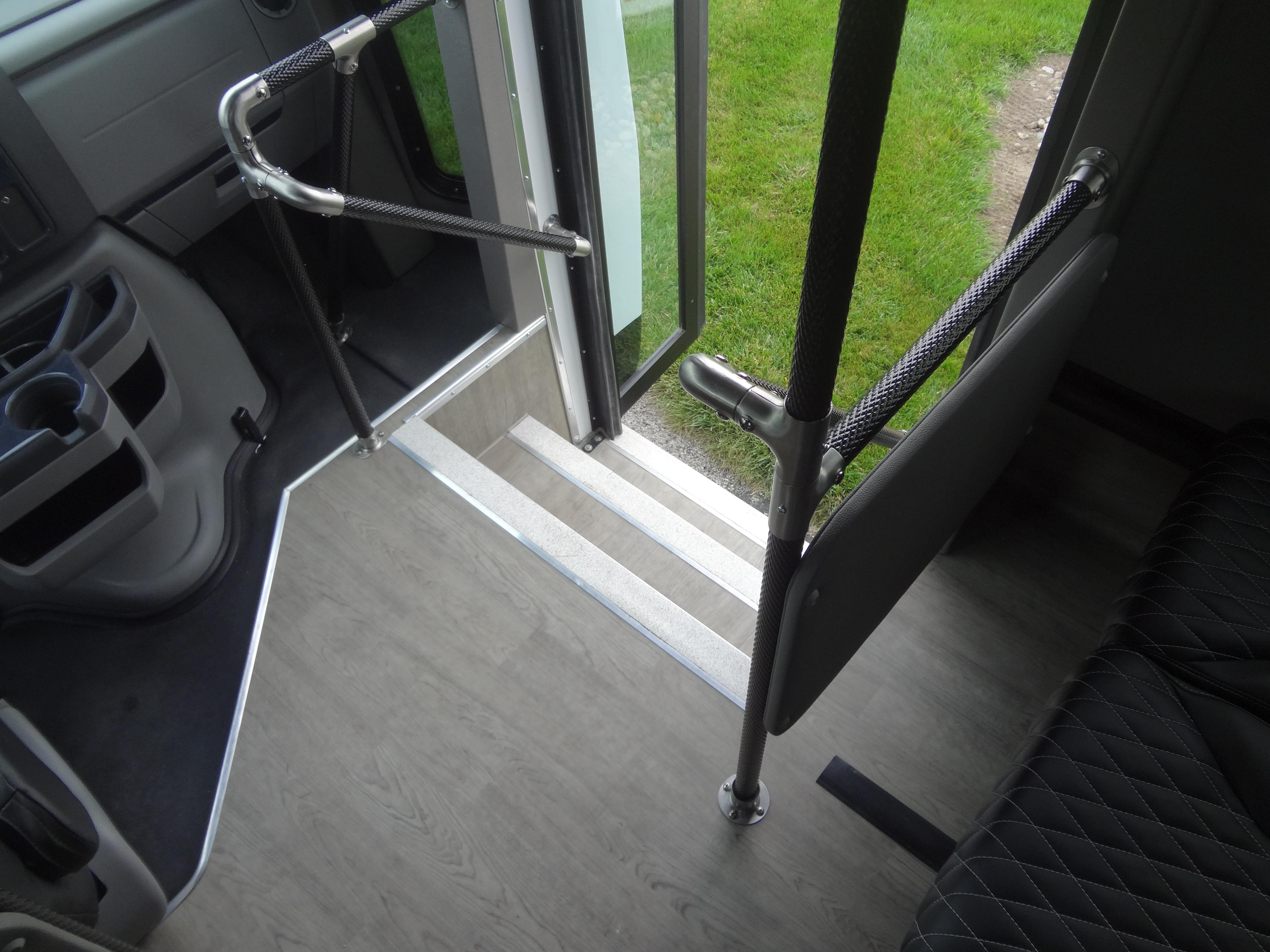

  • Stanchions, Guardrails, LH & RH Assist Rail
  • Black Transit Rubber Flooring
  • Black Transit Ribbed Rubber Aisle
  • White Nosing on Entrance Steps
  • Fold-away Glass Mount Mirror, Remote w/Built in Convex
  • Entrance Door Exterior Light
  • Composite Entrance Step
  • Rear Egress Window
  • Exterior LED Lighting
  • Interior LED Lighting

Standard Chassis Equipment

  • 6.8L V10 EFI Gasoline Engine
  • 225 Amp Alternator
  • Electronic 6-Speed Automatic Transmission
  • Chrome Front Bumber
  • Painted White Wheels
  • Solar Tinted Safety Glass
  • Oxford White Cab Exterior
  • Charcoal Interior
  • Front Axle 5,000 Lb
  • Rear Axle 9,600 Lb
  • 40 Gallon Fuel Tank
  • Tilt Steering Wheel, Cruise Control
  • Radial Tires - LT225/75Rx16 EBSW (6)
  • Auxiliary Transmission Oil Cooler
  • Dual Electric Horns
  • 4.56 Rear Axle Ratio
  • Auxiliary Battery
  • 50 State Emission
  • Engine Block Heater
  • AM/FM/CD Radio
  • Daytime Running Lights

Options

  • AC-7W103 Max Rear Evap 70K BTU In Wall Evap TM16 CM-3
  • Backup Alarm
  • Backup Camera In-Dash
  • Blackout Gloss Windows Only
  • Cover, Driver Seat
  • Dash Upgrade - Ford E-Series
  • Flooring Altro Meta 2.2mm Wood Safety - Woodgrain
  • Front Mud Flaps
  • Guard, 20"x26", w/20" SS Weigh
  • Heater, Rear 65K BTU (3 Year Warranty)
  • Interior, Fabric Walls, Lightbars & Ceiling
  • Kubota Electric Key
  • Lighting, LED,Tail,Brake & Turn Signals, Round
  • Mirrors, Remote Heated Ford - Door Mount Switches
  • Modesty Panel, Entrance Door, Upholstered
  • Modesty Panel, Upholstered

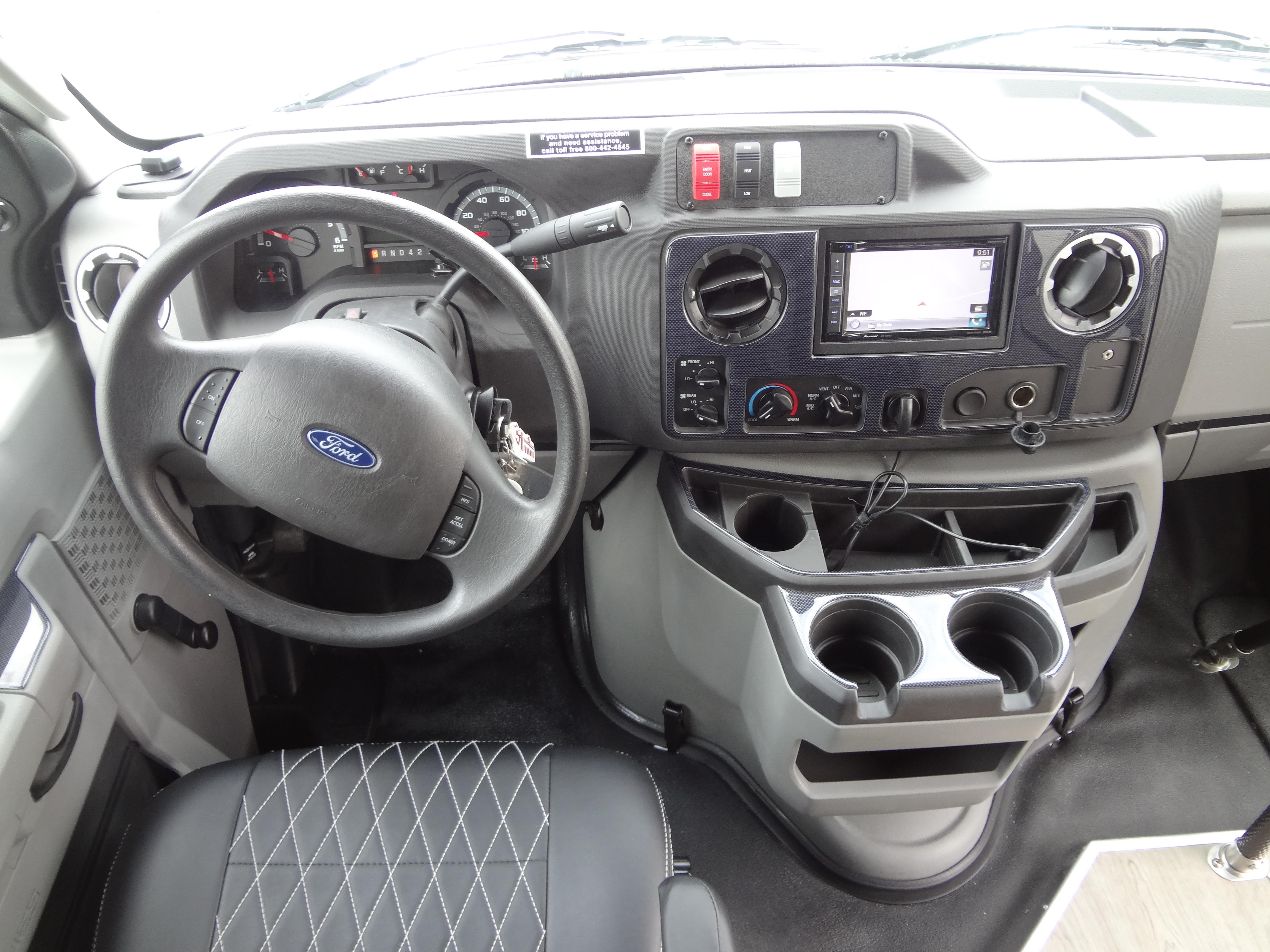

  • Navigation Sys. Pioneer, AM/FM/CD/DVD/Bluetooth
  • Paint Bottom Skirts Only
  • Protective Front Nose Wrap
  • Rail, Entrance & Engine Assist

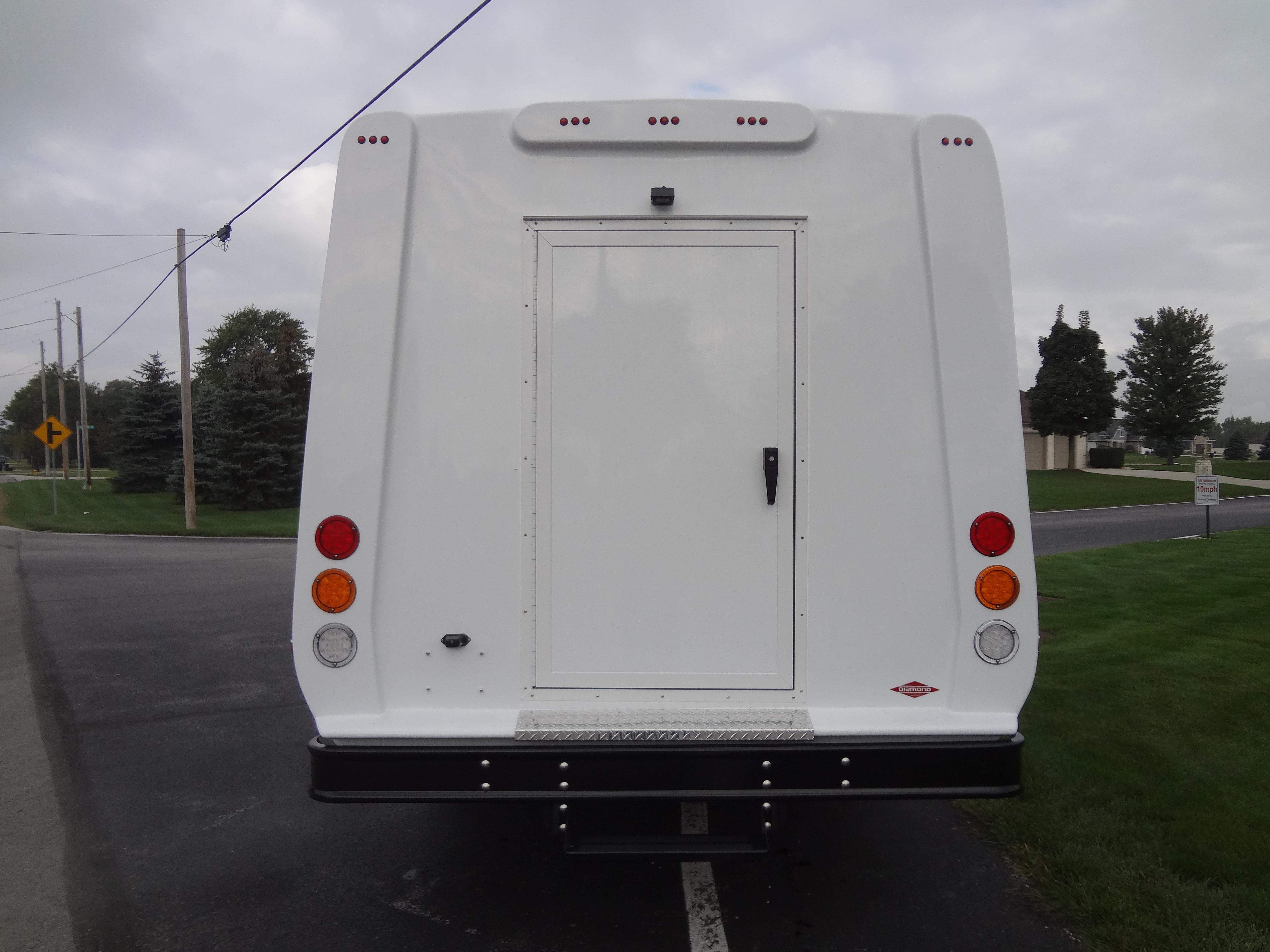

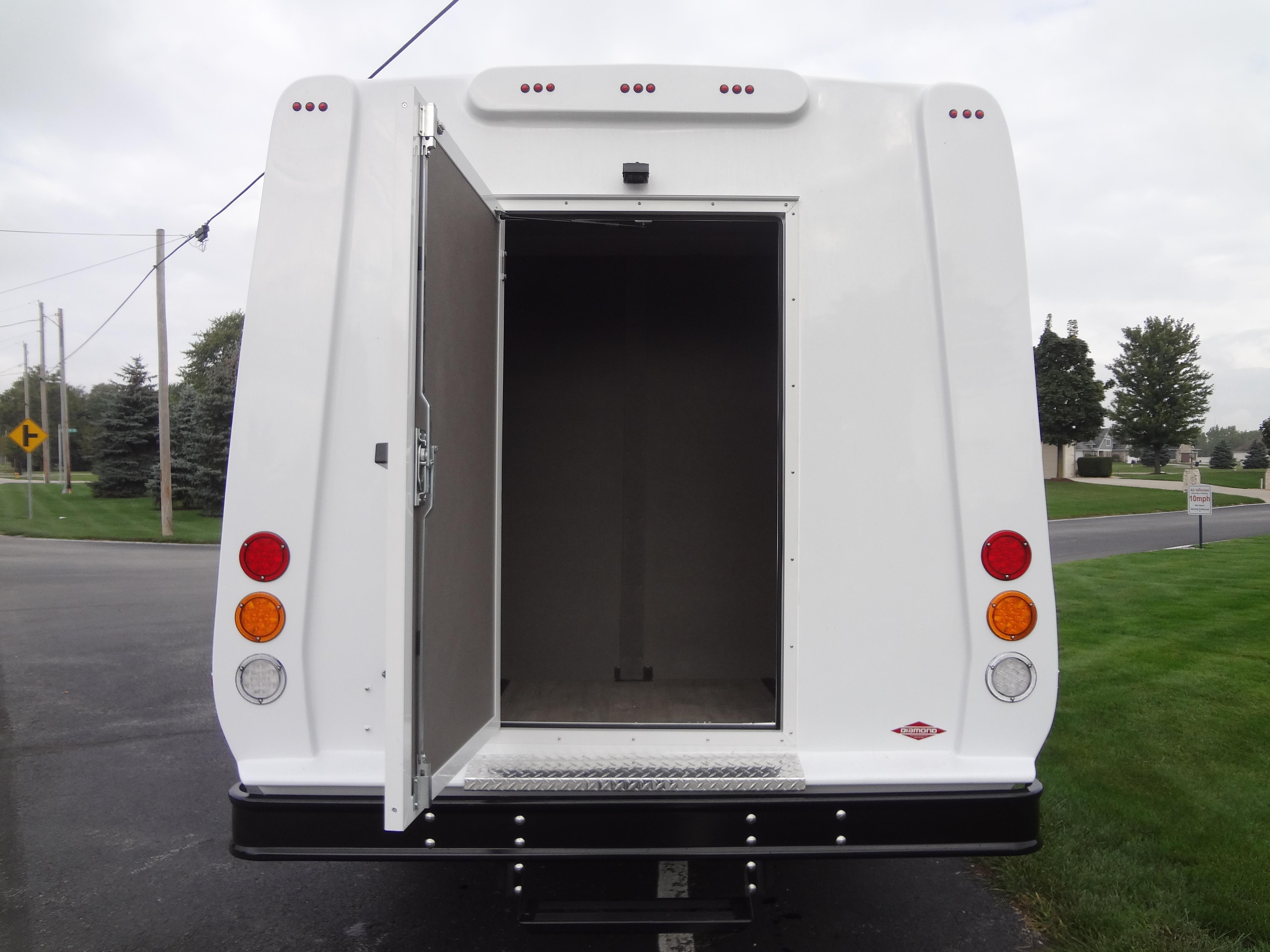

  • Rear Luggage w/ Rear Door,Ajar Buzzer, Roofhatch & Step
  • Running Board Driver 10" Diamond Plate

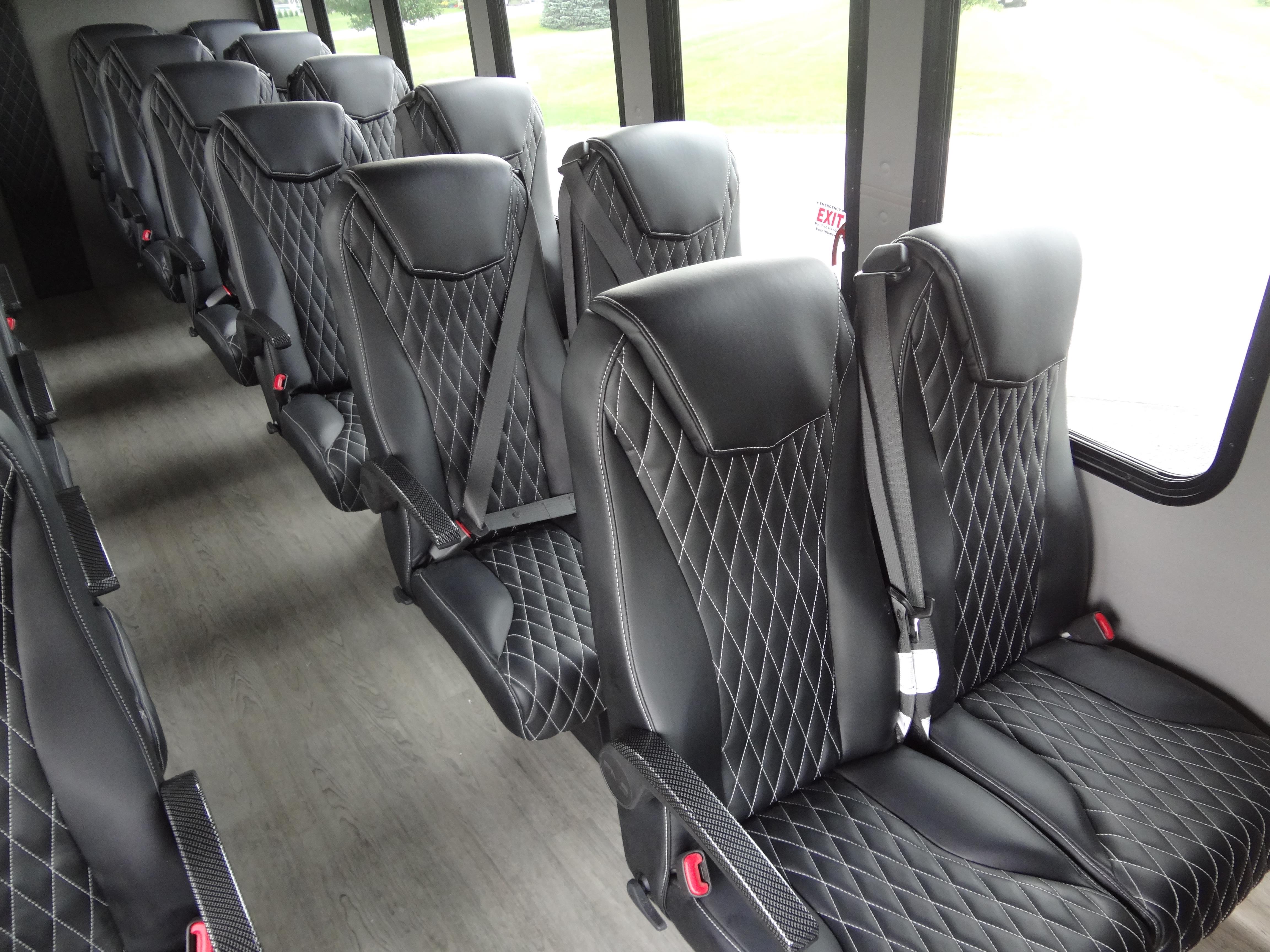

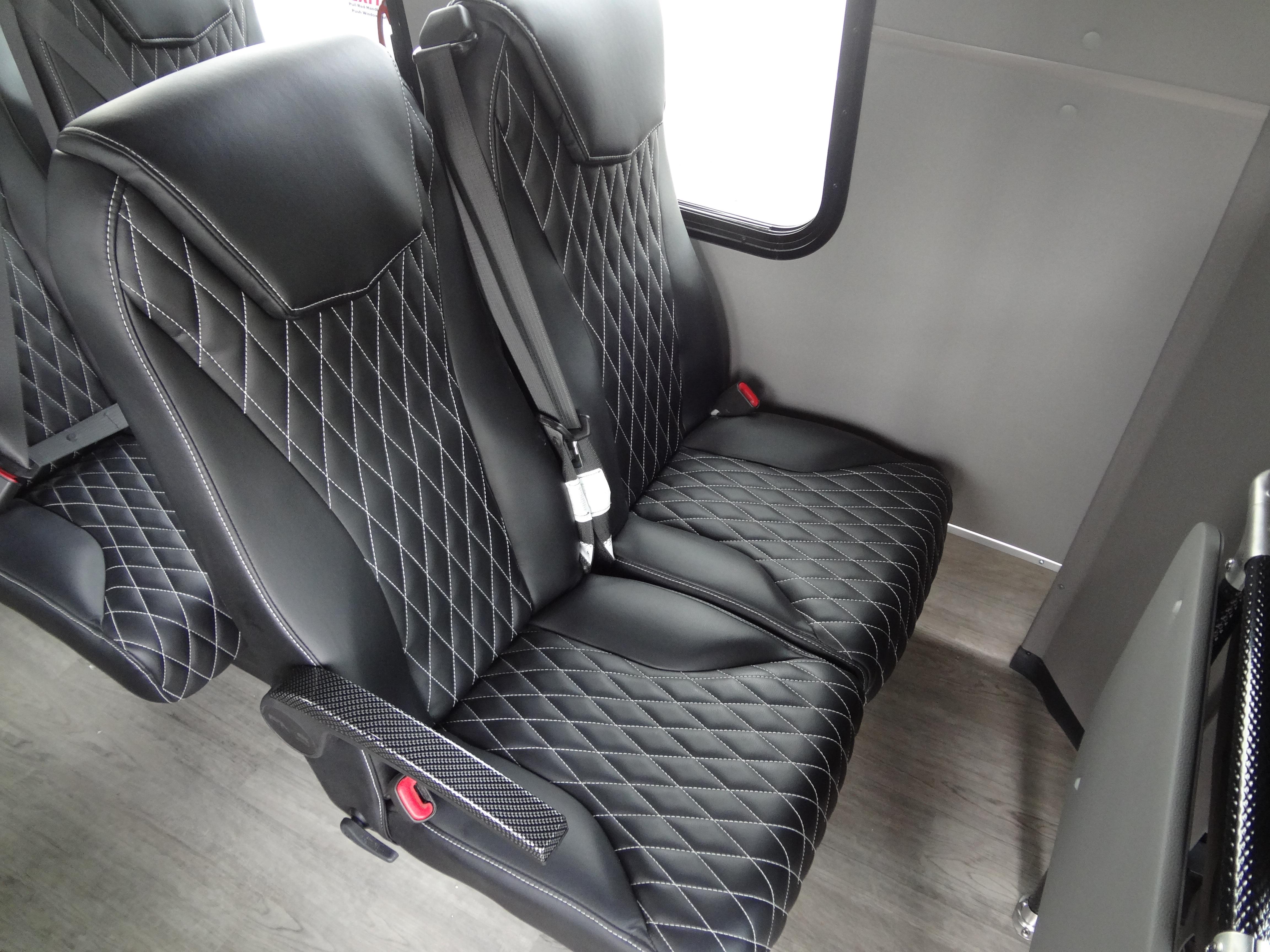

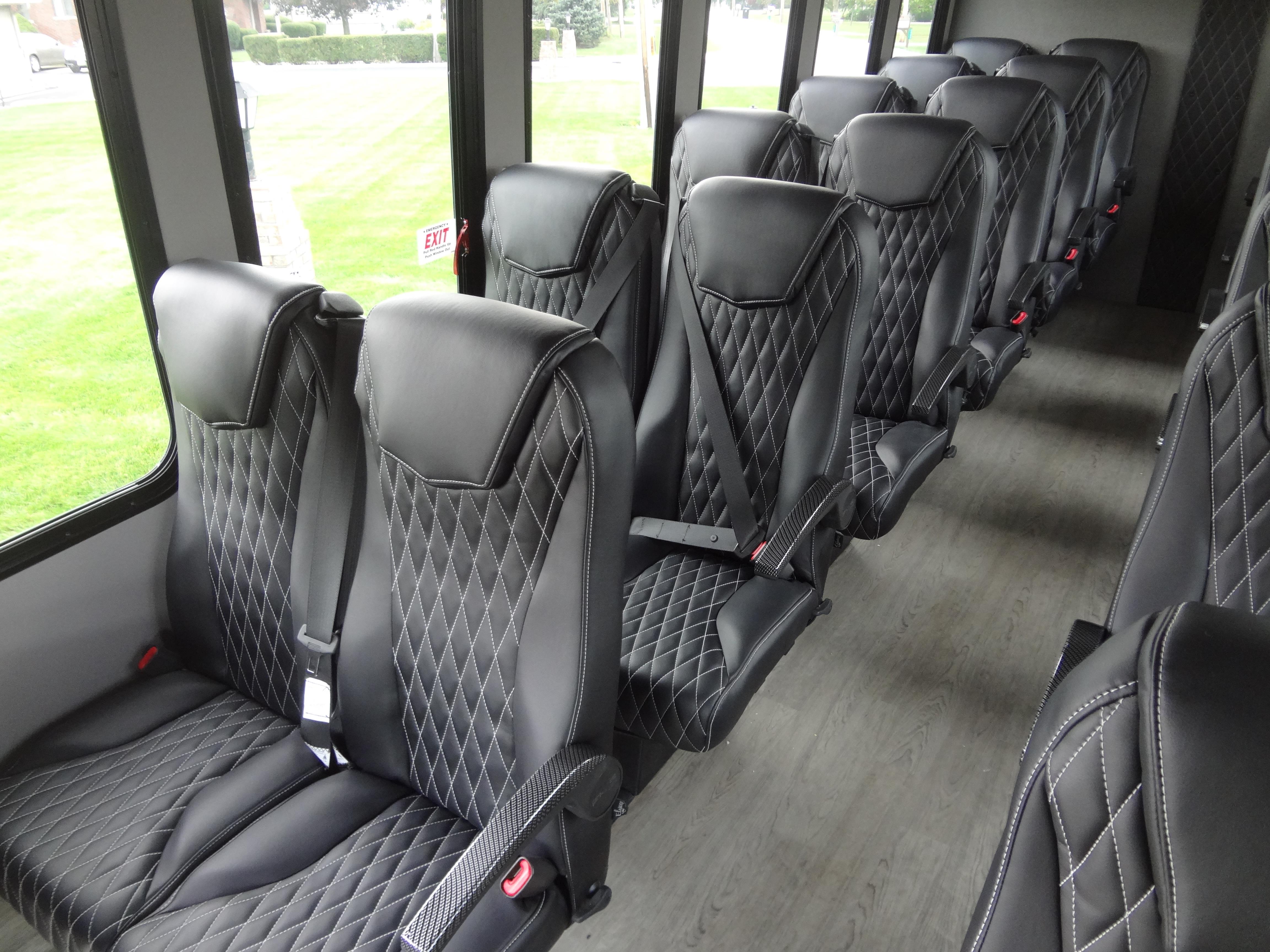

  • (10) Seat, Palermo 3 Pt, Double Recliner-Black Vinyl/Silver Stitching
  • (2) Seat, Palermo 3 Pt, Double Rigid-Black Vinyl
  • Special Aisle Lights
  • Stainless Steel Wheel Liner
  • Stanchions, Black Tubing Upgrade
  • Striping, Special Color Vinyl
  • Thumb Lock, On Circuit Box Door
  • Timbren Suspension Spring E450
  • (10) Upholstered Armrest

More from Diamond Coach

No VIP 2800 orders are on the lot today; these are the other Diamond Coach models TESCO carries, with what's in stock on each.

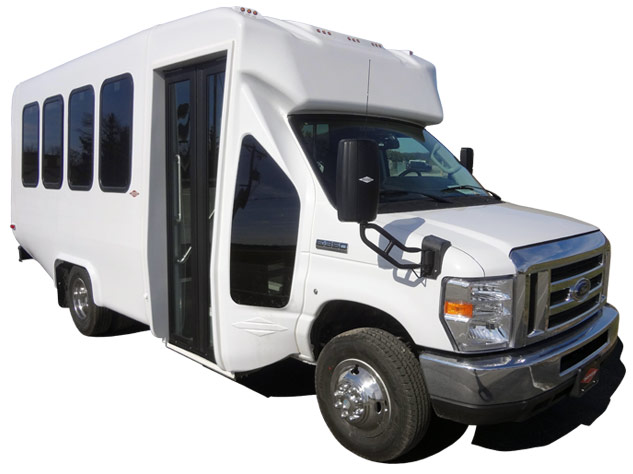

VIP 2000

VIP 2000

Up to 17 passengers · 1 floorplan The VIP 2000 provides an ideal solution as an assisted living, medical transport, or church bus. Model details

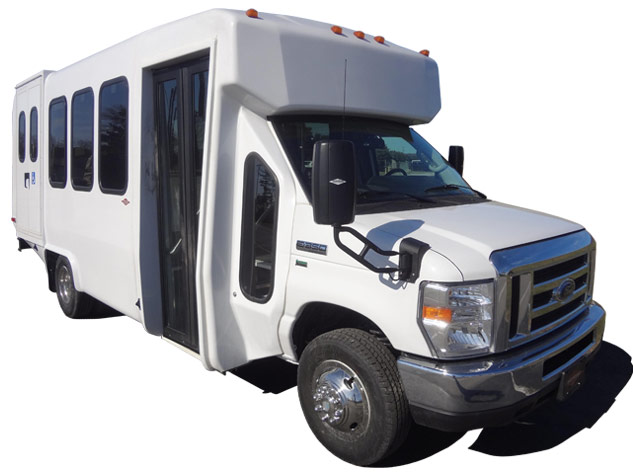

VIP 2200

VIP 2200

Up to 21 passengers · 4 floorplans The VIP 2200 can accommodate up to 21 passengers and can be equipped with many of the luxury options of larger “coach” buses. Model details

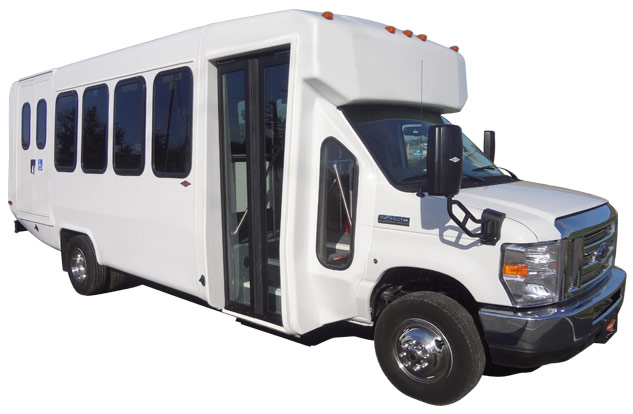

VIP 2500
