Diamond Coach
VIP 2500
5 floorplans, full specifications and what's on the lot right now.
- Capacity
- Up to 25 passengers
- Chassis
- Ford E-450 or Chevrolet
- Floor
- Standard

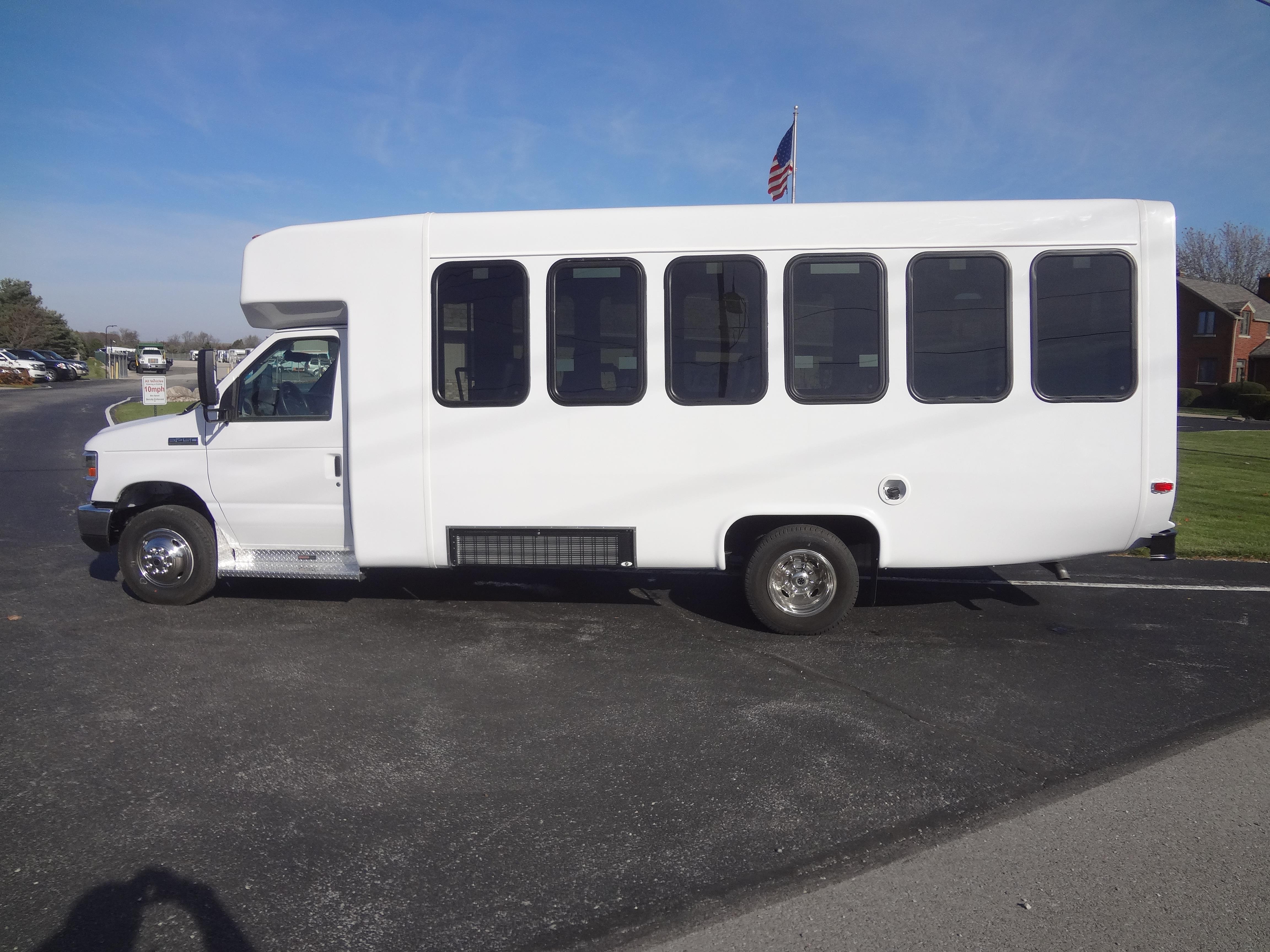

About the VIP 2500
Fast Fact: Diamond buses provide incredible cost savings and resale value. Our design answers the two biggest issues with reselling a bus: the cost of repairs, and the look and quality of the used bus.
Specifications
- Capacity
- Up to 25 passengers
- Floor Type
- Standard
- Exterior Height
- 9' 6"
- Exterior Length
- 25'
- Interior Width
- 93"
- Interior Height
- 75"
- Chassis Model
- Ford E-450 or Chevrolet
- Co-Pilot
- No
Floorplans
5 layouts for the VIP 2500. Tap a plan to see it full size; your rep can spec seating, wheelchair positions and storage from any of them.
-

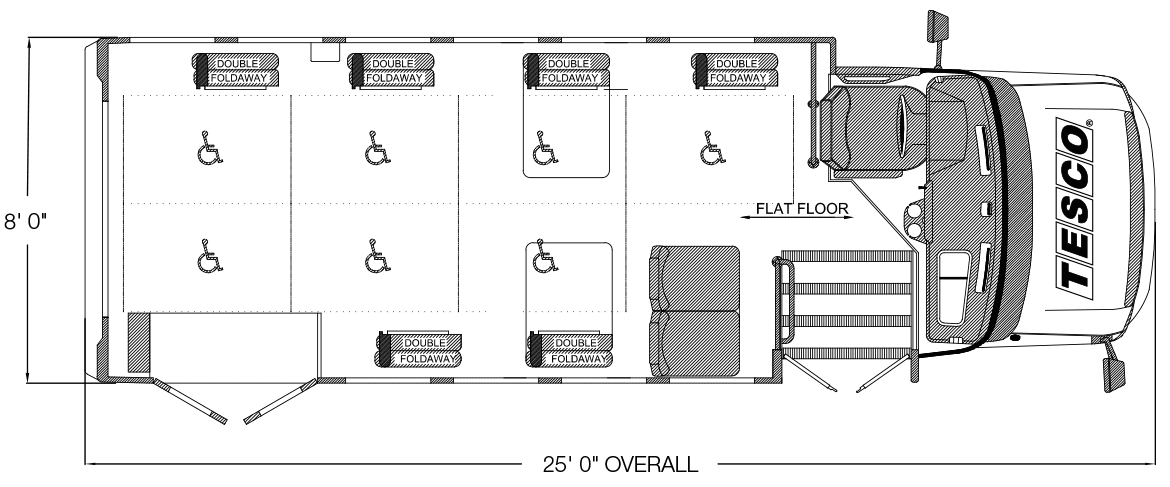

A 2 passenger with 7 wheelchair positions and 6 double foldaways
-

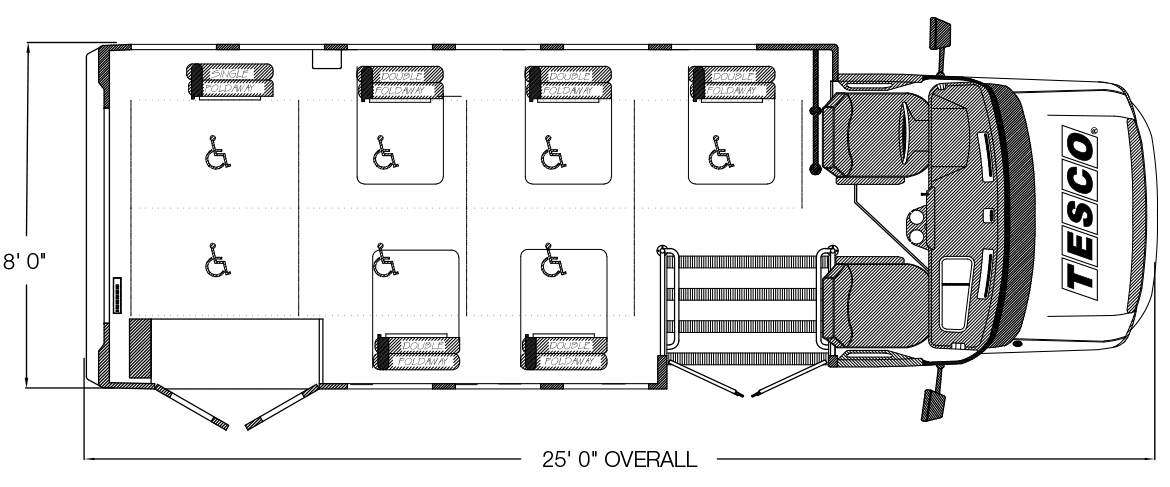

B 1 passenger with 7 wheelchair positions and 6 double foldaways
-

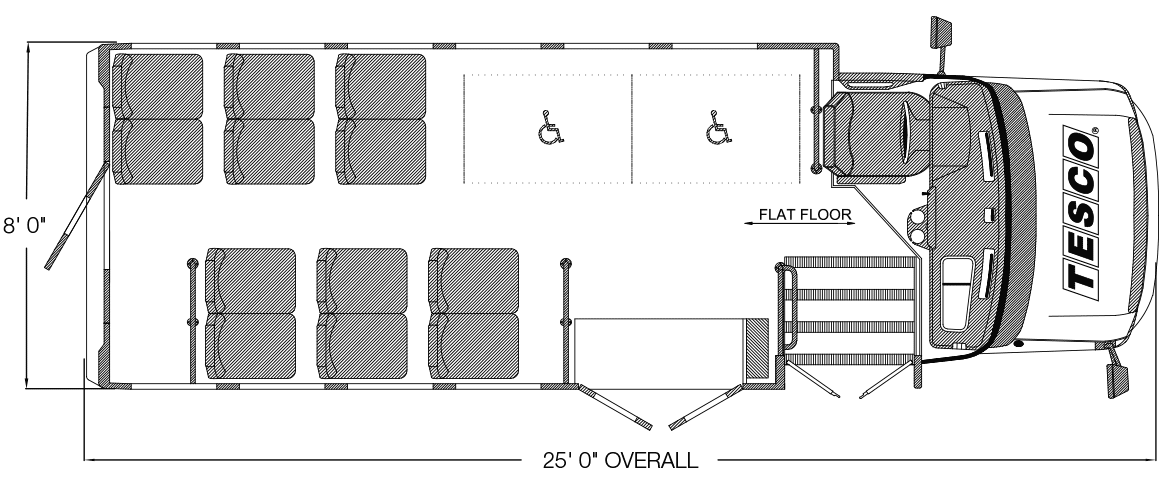

C 12 passenger with 2 wheelchair positions and rear storage
-

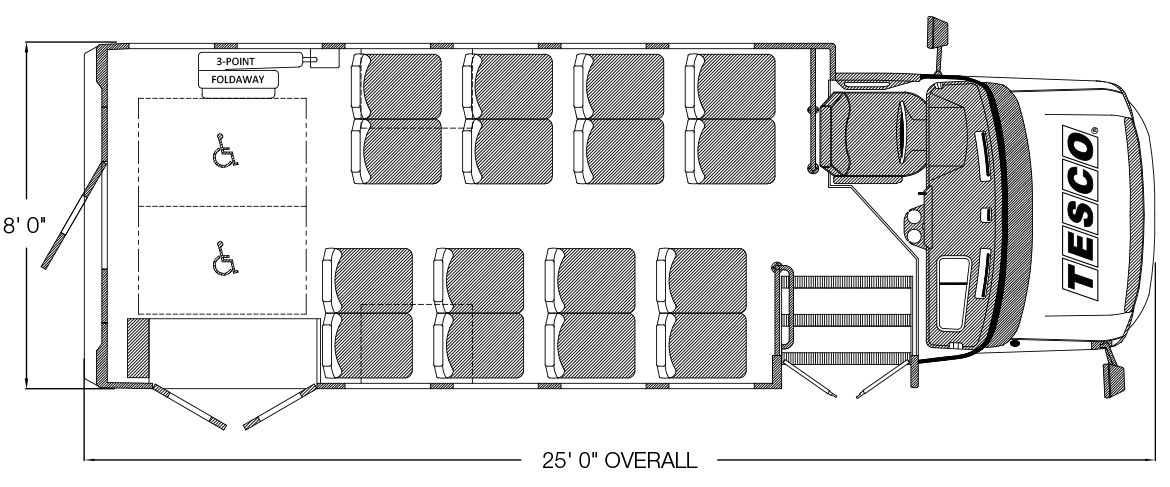

D 16 passenger with 2 wheelchair positions and 1 3-point foldaway
-

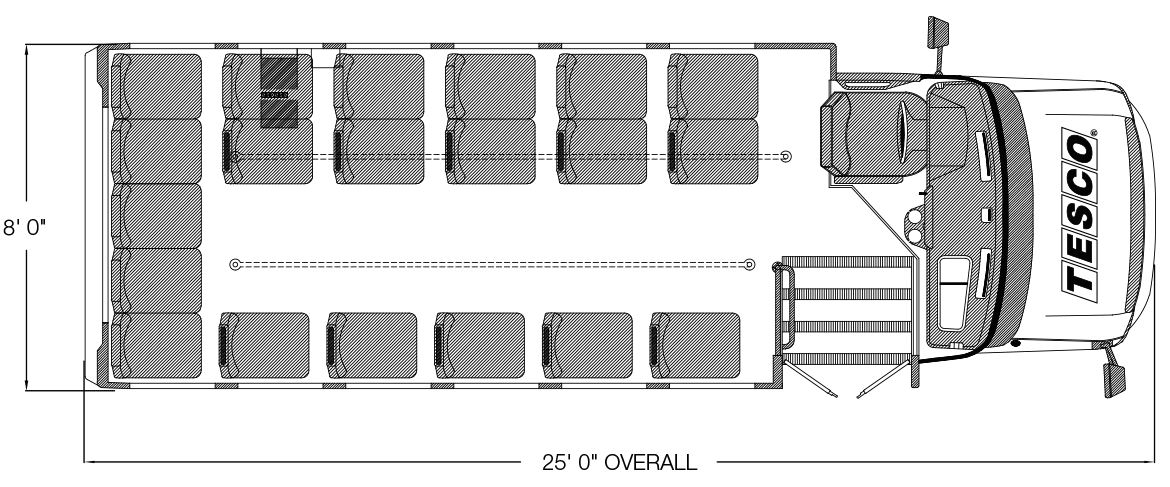

E 20 passenger
Features
VIP 2500 Advantages
- Rust Free
- Impact Resistant
- Smooth, Quiet Ride
- Superior Temperature Efficiency
Standard Body Equipment
- Composite/Honeycomb Construction
- Fabric Ceiling Panels
- Rosco Mirrors
- Raised Floor
- ABS Light Bars

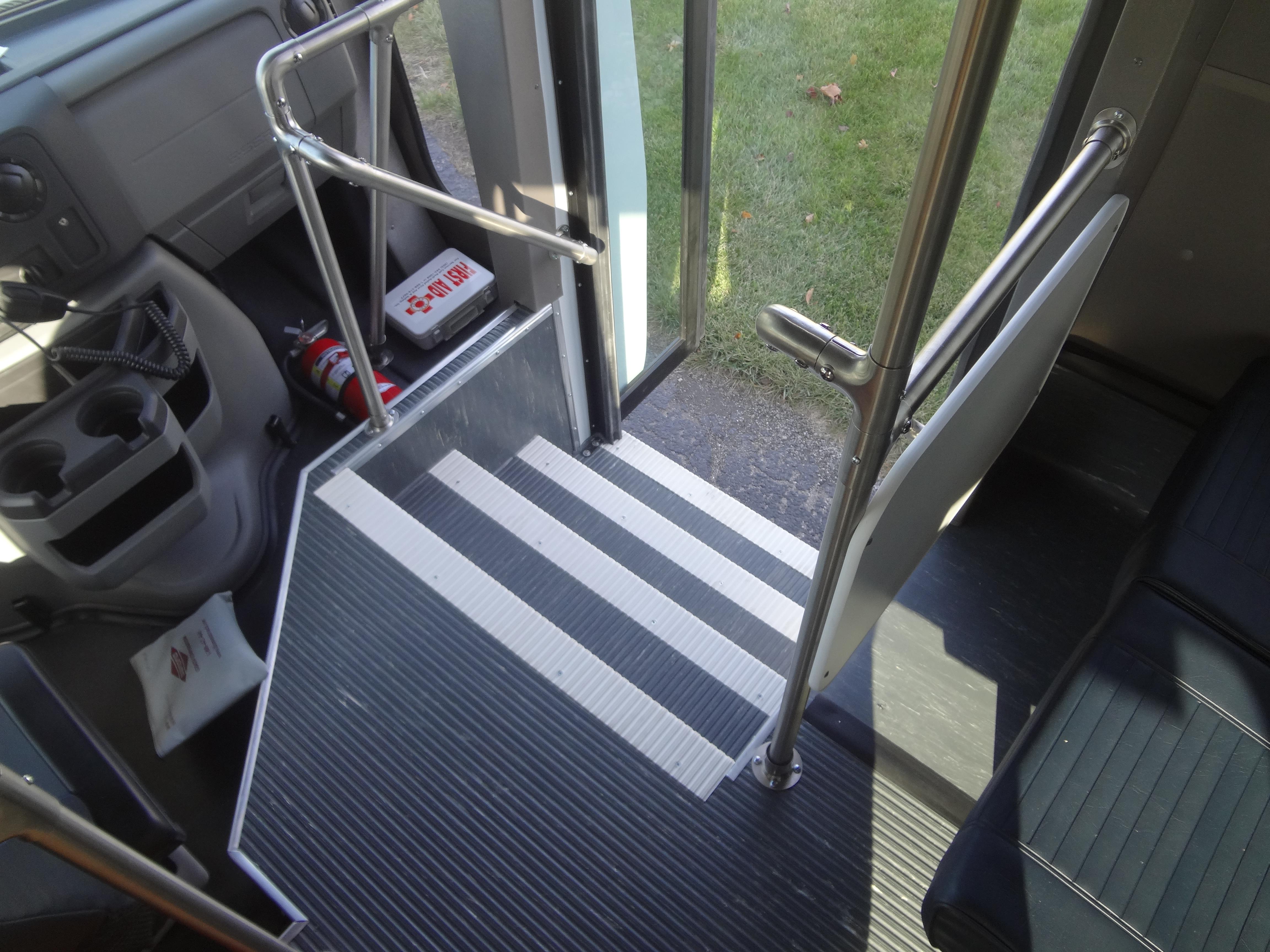

- Fiberglass Step Well
- Roof Hatch
- Black Anodized Aluminum Finish Entry Door
- Electric Entry Door
- RCA Rubber Floor
- ABS Walls
- Interior LED Lights
- Fully Undercoated
- Powder Coated Bumper (Rear)
- Exterior LED Lights
- Entrance Door Modesty Panel
- Egress Windows
- Roof Hatch
- Solid Windows
- Composite Wheel Wells
- Composite Entry Steps
Standard Chassis Equipment
- Ford E450 6.8L Gas
- 14,500# GVWR
- 225 amp Alternator
- 40 Gallon Fuel Tank
- AM/FM/CD Radio
Options
- (10) Armrest Non Padded
- Backup Alarm
- Backup Camera - Rearview Mirror
- Braun Century-2 Rear Pump
- Cover, Wheelchair Lift, Vinyl

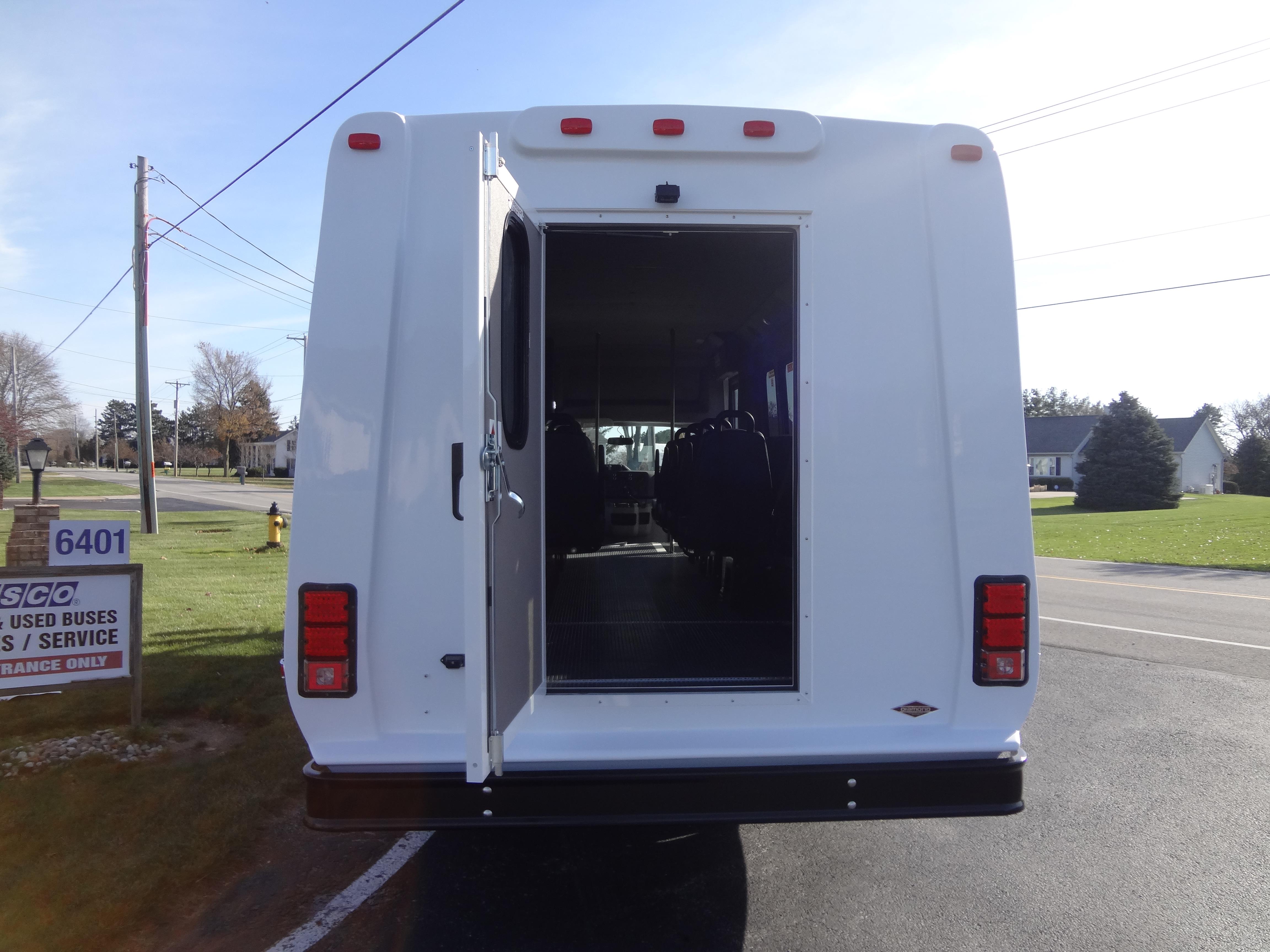

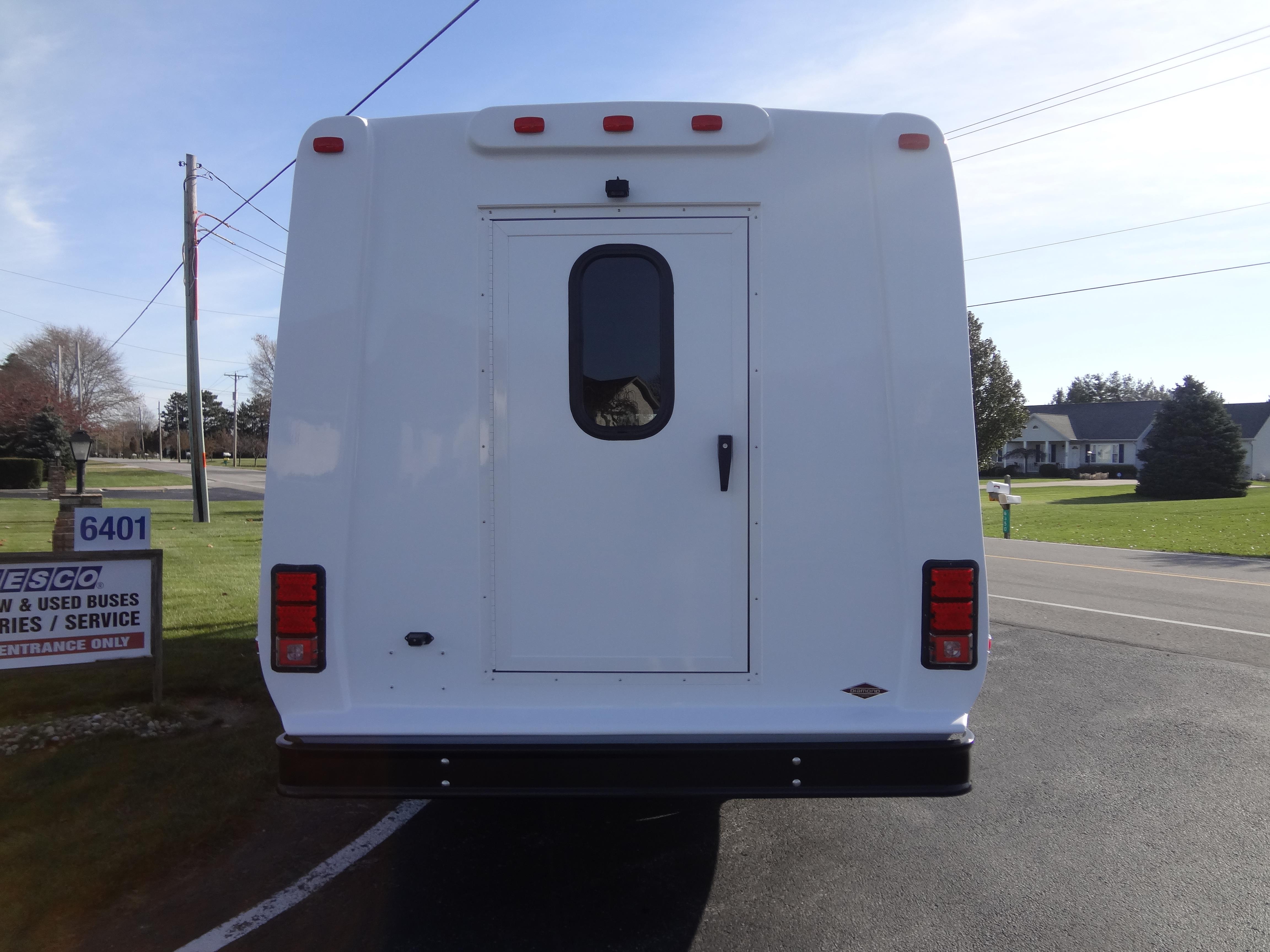

- Door, Rear 34" x 60" w/ Upper Window 12" x 24"
- Drip Molding, Full Length (Both Sides)
- Driver Seat Freedman Shield Recliner w/ Lumbar
- Exhaust Run to Driver Side - Side Discharge
- Floor, 4 Step Entry No Wheelwells (Raised Floor, 3")
- Flooring Gray Ribbed (Aisle)
- Flooring Gray Rubber Smooth (Under seats)

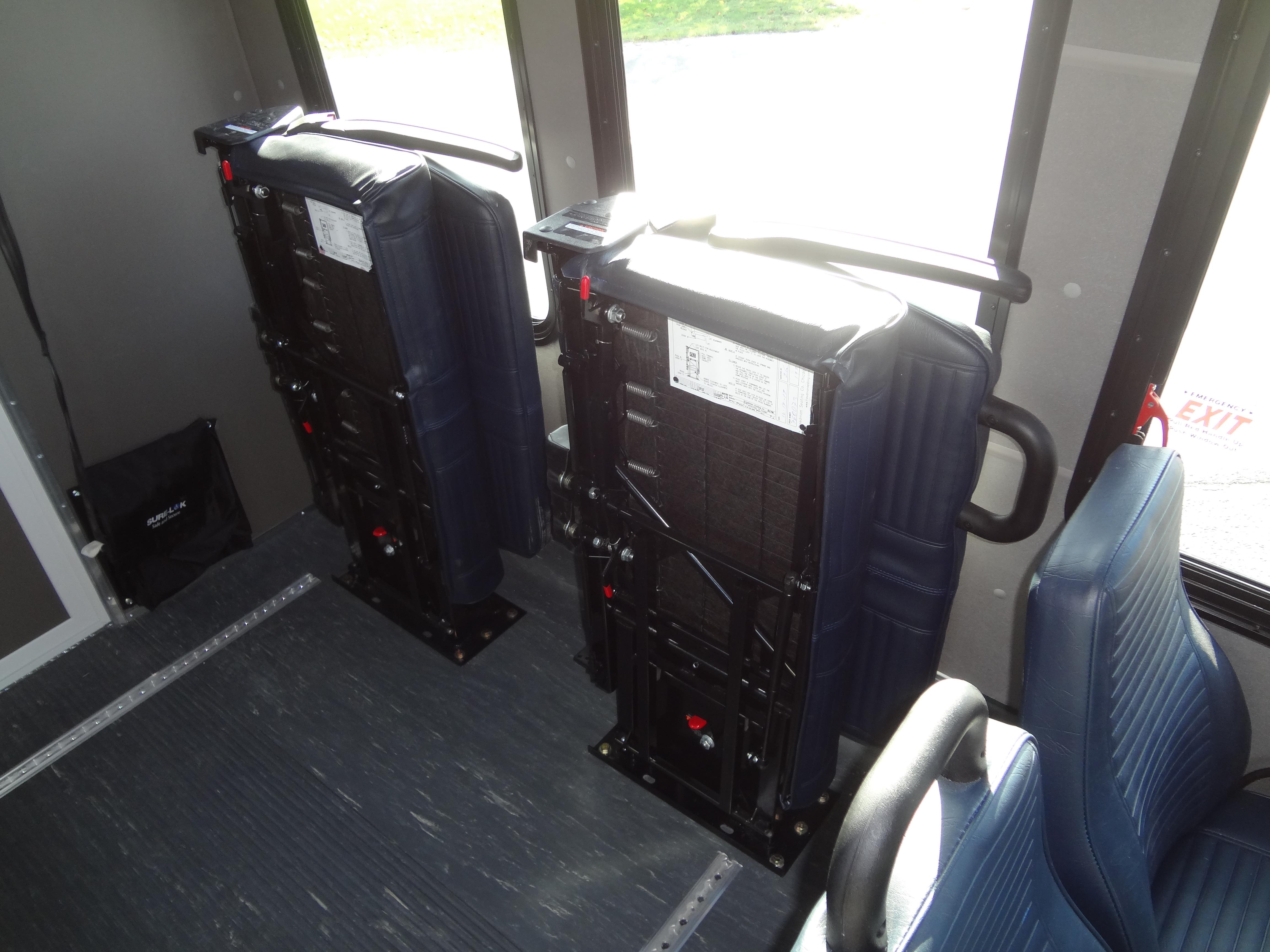

- (2) Foldaway Mid High Dbl. 35" w/ Lap Belts
- Front Mud Flaps
- (9) Grab Handle Anti-Vandal Aisle Side
- Grab Rail - Entrance, Right Hand
- Heater, Rear 45K BTU (3 Year Warranty)
- Kubota Electric Key
- (20) Level 1 Fabric (Oxen Dark Blue #642)
- MCC - AC-7W103 Max Rear Evap 70K BTU In Wall Evap TM16 CM-3

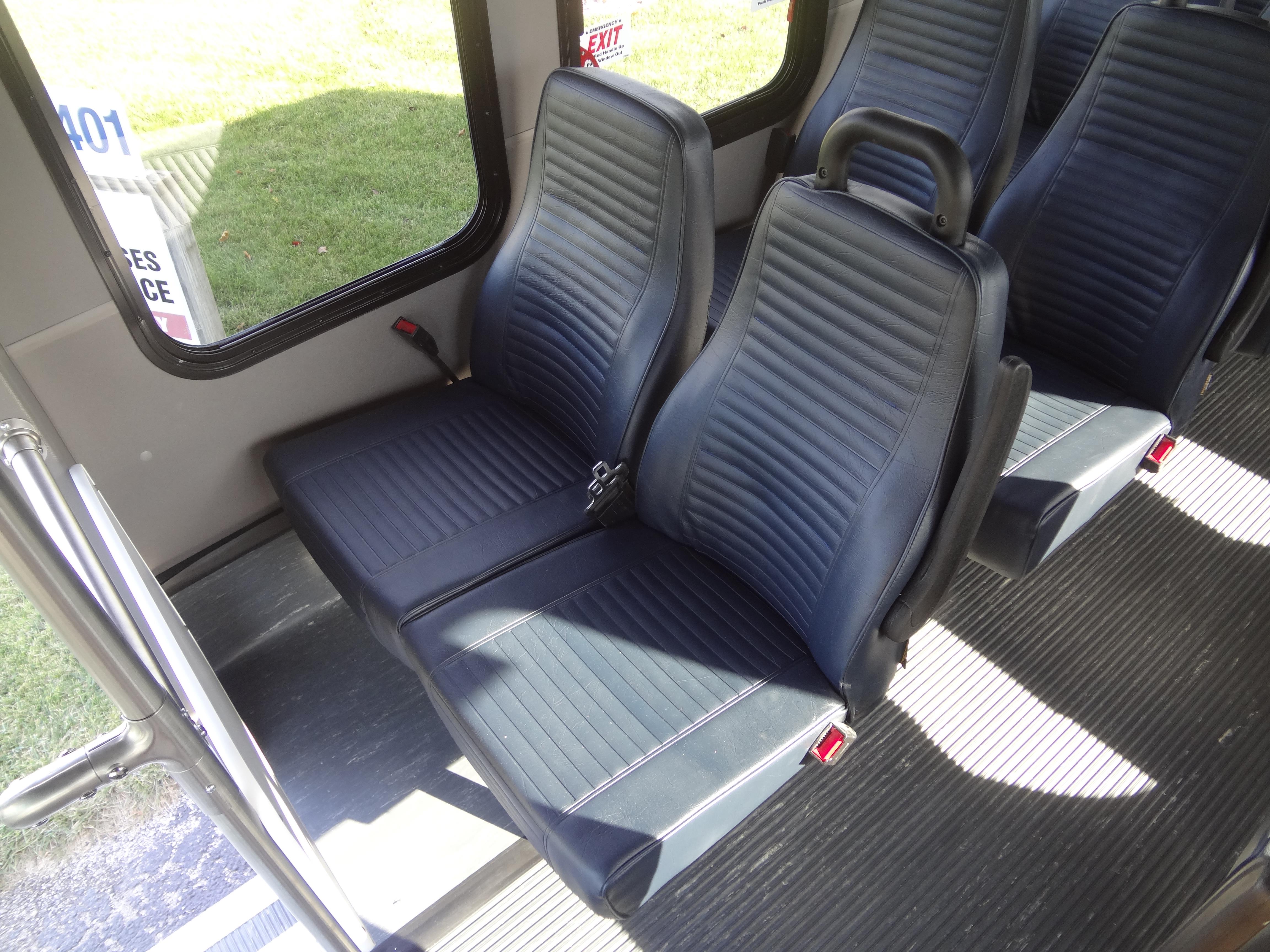

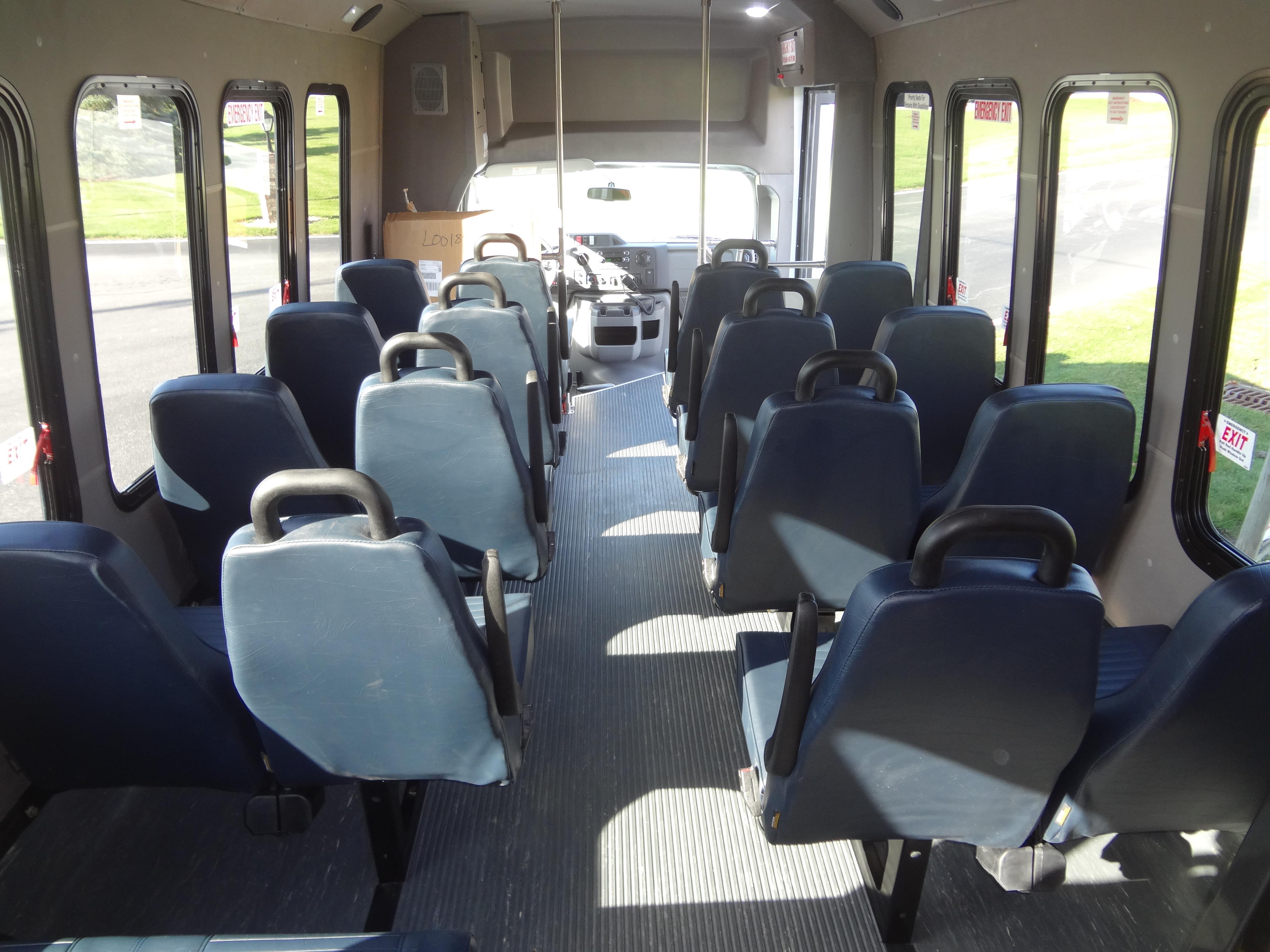

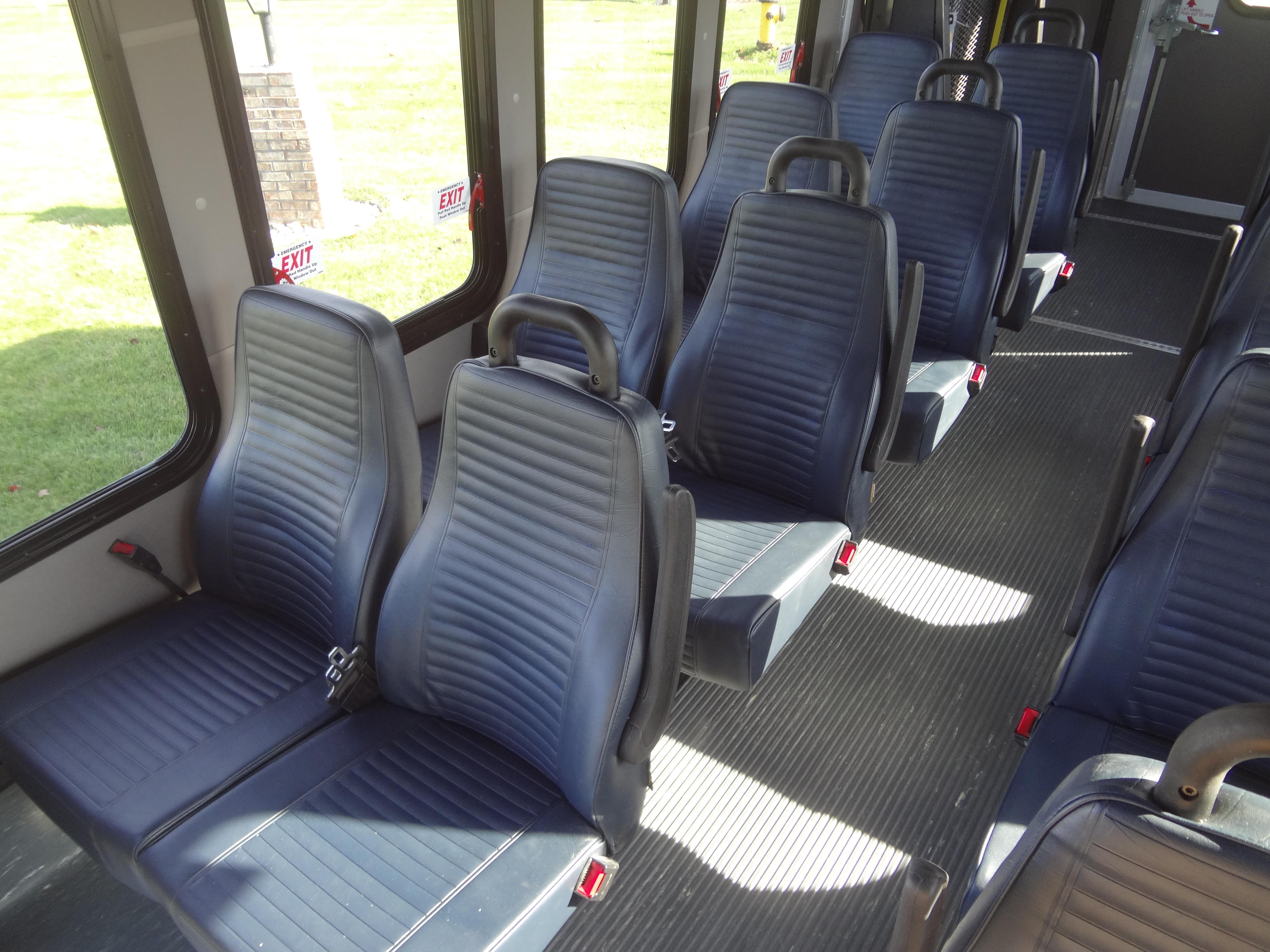

- (16) Mid-Back Rigid, Level 1 Fabric w/ Lap Belt (ea)
- Mirrors, Remote Only Ford Door Mount Switches
- Paging System w/ 2 Speakers
- (2) Restraint System, Titan W/Wall
- Running Board Driver 10" Diamond Plate
- Safety Kit Complete
- (8) Seatbelt USR Double
- (2) Seatbelt USR Foldaway
- Stainless Steel Wheel Liner
- Timbren Suspension Spring E450

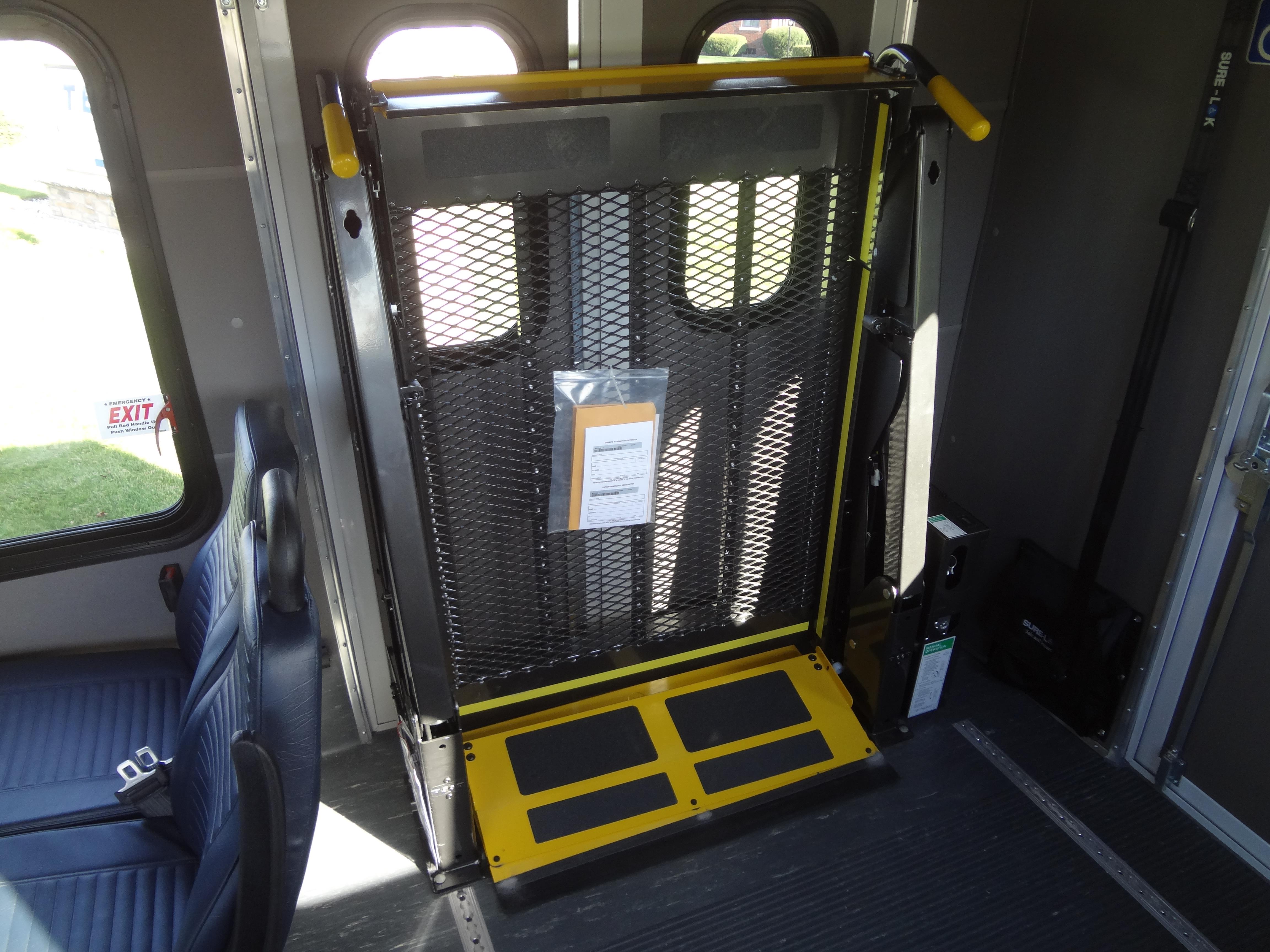

- W/C Lift Rear Installation
