ARBOC Specialty Vehicles

Spirit of Mobility

Low-floor cutaway · Ford chassis

Request info See the floorplans

About the Spirit of Mobility

The Spirit of Mobility is the bus that made low-floor boarding mainstream: a single, non-discriminatory angled entrance with a fold-out ramp, kneeling suspension, and a flat interior floor. Passengers using mobility devices roll straight aboard: no lift, no separate door, no waiting. Built on the Ford cutaway chassis with wheelchair positions plus ambulatory seating.

Back to ARBOC Specialty Vehicles

Floorplans

7 layouts for the Spirit of Mobility. Tap a plan to see it full size; your rep can spec seating, wheelchair positions and storage from any of them.

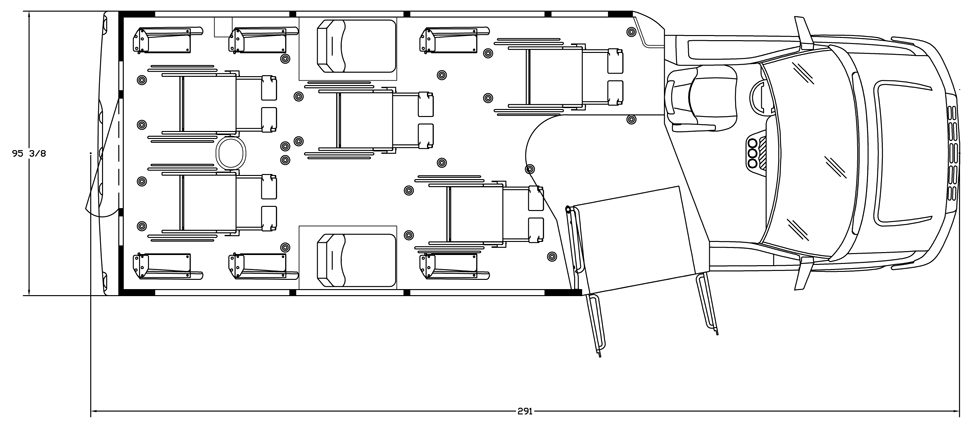

  • ARBOC Specialty Vehicles Spirit of Mobility floorplan A: 2 passengers, 5 wheelchair positions

    A 2 passengers, 5 wheelchair positions

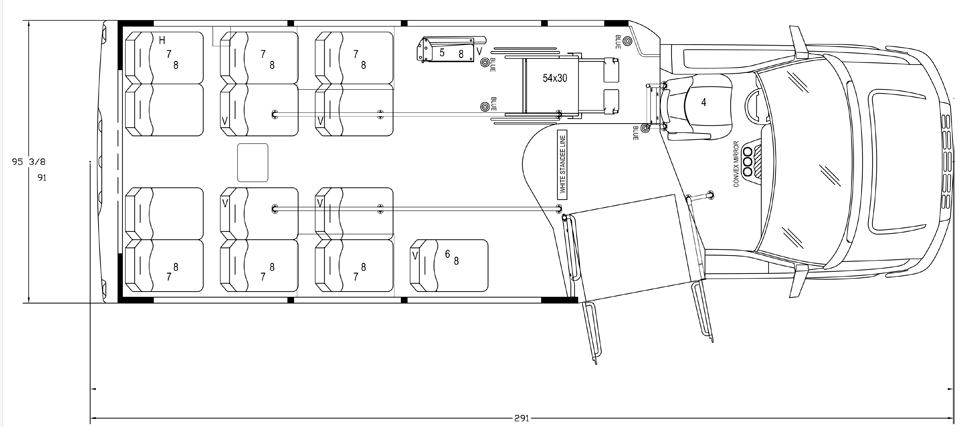

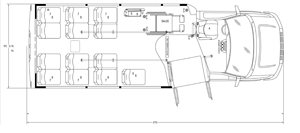

  • ARBOC Specialty Vehicles Spirit of Mobility floorplan B: 13 passengers, 1 wheelchair position

    B 13 passengers, 1 wheelchair position

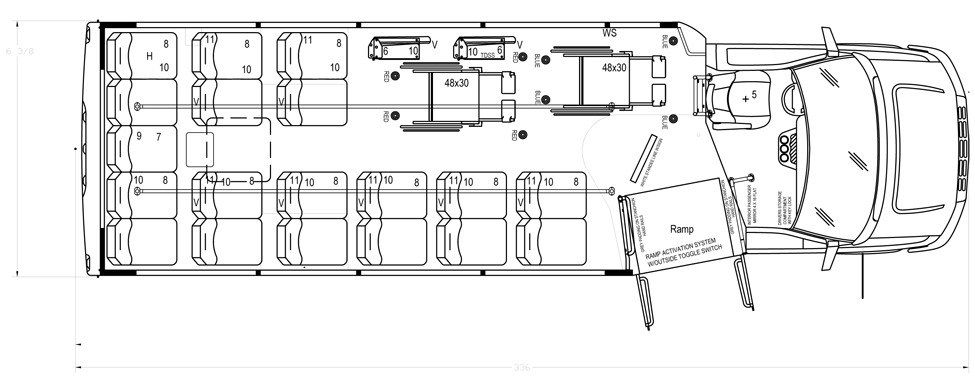

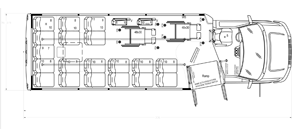

  • ARBOC Specialty Vehicles Spirit of Mobility floorplan C: 19 passengers, 2 wheelchair positions

    C 19 passengers, 2 wheelchair positions

  • ARBOC Specialty Vehicles Spirit of Mobility floorplan D: 16 passengers with 2 wheelchair positions

    D 16 passengers with 2 wheelchair positions

  • ARBOC Specialty Vehicles Spirit of Mobility floorplan E: 15 passengers with 2 wheelchair positions

    E 15 passengers with 2 wheelchair positions

  • ARBOC Specialty Vehicles Spirit of Mobility floorplan F: 12 passengers with 2 wheelchair positions

    F 12 passengers with 2 wheelchair positions

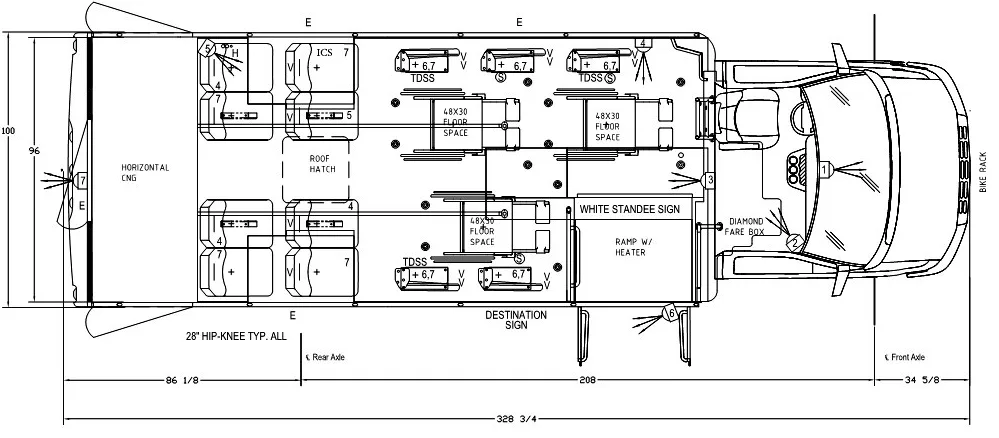

  • ARBOC Specialty Vehicles Spirit of Mobility floorplan G: 8 passengers with 3 wheelchair positions

    G 8 passengers with 3 wheelchair positions

Features

Spirit of Mobility Advantages

  • All Tubular Steel Cage Construction
  • Bolt & Bonded Construction
  • Full Laminated Body
  • Body Width: 96" (does not include mirrors)
  • Body Height: 110" (does not include roof hatch or AC)
  • Seating Capacity: Theater Seating up to 22 Passengers
  • Wheel Chair Capacity: up to 8
  • Altro Flooring (Non-Coved) - Storm Gray
  • 5/8" Wood Floor (edge sealed prior to installation)
  • Altoona Tested- 7 Years/200,000 Miles
  • Meets all applicable FMVSS Regulations

Standard Features & Equipment

  • GM4500 with GVWR 14,200
  • GVWR Front Axle: 4,600
  • GVWR Rear Axle: 9,600
  • Vortec 6.0L Gas Engine
  • 6-Speed Automatic (MYD) Transmission
  • Heavy Duty Disc Brakes with four-wheel ABS
  • Park Brake: Internal Rear Disc
  • 220 Amp Alternator
  • Dual Batteries
  • Hour Meter
  • LT225/75RX16D/E Tires
  • 57 Gallons Fuel Tank
  • 50 State Emissions
  • Tilt/Cruise
  • 12V & 110V Power Ports
  • Low Oil Pressure Light
  • Driver Dome Light
  • Daytime Running Lights
  • Factory Dash A/C, Defroster and Heat
  • Front & Rear Mud Flaps
  • Rear Tow Hooks
  • Steel Rear Bumper Painted Black
  • Exhaust Streetside Rear
  • Full Air Ride Suspension w/ Kneeling Electronic Control
  • 12V Electric Air Suspension Compressor System

Exterior Body & Lights

  • LED Interior/Exterior Lights
  • Rear Center Mounted Brake Light - LED
  • Exterior Light at Entry Door - LED
  • Black Rubber Rear Wheel Well Flares
  • One Piece Exterior FRP Wall/Skirt
  • Flush Mount Front Cap Marker Lights - LED
  • Upper Corner Rear ICC Lights - LED
  • Heated/Remote Exterior Mirrors

Windows & Doors

  • Solid Framed Windows
  • Egress Window Lights
  • Side View Window Behind Driver
  • Electric Outward Opening Entrance Door
  • Rear Egress Window (24 x 60)

Electrical

  • Ramp Activation System
  • Air Pressure Gauge
  • Kneel Switch w/ Suspension Status Indicator
  • LED Interior/Exterior Lights
  • Interior Passenger Lights "ON" with door
  • Auxiliary Battery Compartment w/Tray and Door
  • Switches Mounted on Driver's Console
  • Master Battery Disconnect Switch
  • Multiplex 12V Electrical System
  • Backup Alarm

Interior

  • OEM Driver Console w/Cup Holder
  • Right Hand & Left Hand Stanchions - Stainless Steel
  • Entry Assist Handles - Stainless Steel
  • One Piece FRP Interior Walls/Ceiling
  • Door Header Access Panel
  • White Standee Line w/Sign

Optional Equipment

  • Romeo Rim Bumper
  • Hawkeye Back Up system
  • Driver Side Running Board
  • Tow Hooks Rear
  • Hood Scoops Perko
  • Altro or Gerflor Flooring
  • Remote/Heated Mirrors
  • Rear door
  • Roof Hatch
  • Deluxe Overhead Parcel Racks
  • Rear Luggage
  • Bike Rack
  • Driver Storage Compartment
  • CNG Rear Storage Compartment
  • Sensitive Door Edge - Main Entry
  • Front Illuminated ID Sign- No lettering
  • Front and Side Destination Signs
  • USB Ports
  • Under Hood Lite
  • Back Up Camera
  • Ramp Activation System
  • Passenger Stop Request
  • AM/FM/CD w/4 Speakers Jensen-PA ready
  • Tour Bus Audio Visual Package
  • Digital Clock in Driver's Area
  • Roof Top A/C System
  • Additional Rear Heater
  • Dash Mounted Defrosted Fan
  • Insulated Heater lines
  • Driver's Coat Hook
  • Walker Rack
  • Amerex Fire Suppression
  • Q'Straint Wheelchair Tiedown System
  • Electric Ramp Heater
  • Security Camera System
