Collins Bus

MFSAB

10 floorplans, full specifications and what's on the lot right now.

Capacity
Up to 34 passengers
Chassis
GM or Ford
Floor
Standard
Wheelbase
138", 139", 158" or 159"
Request info See the floorplans

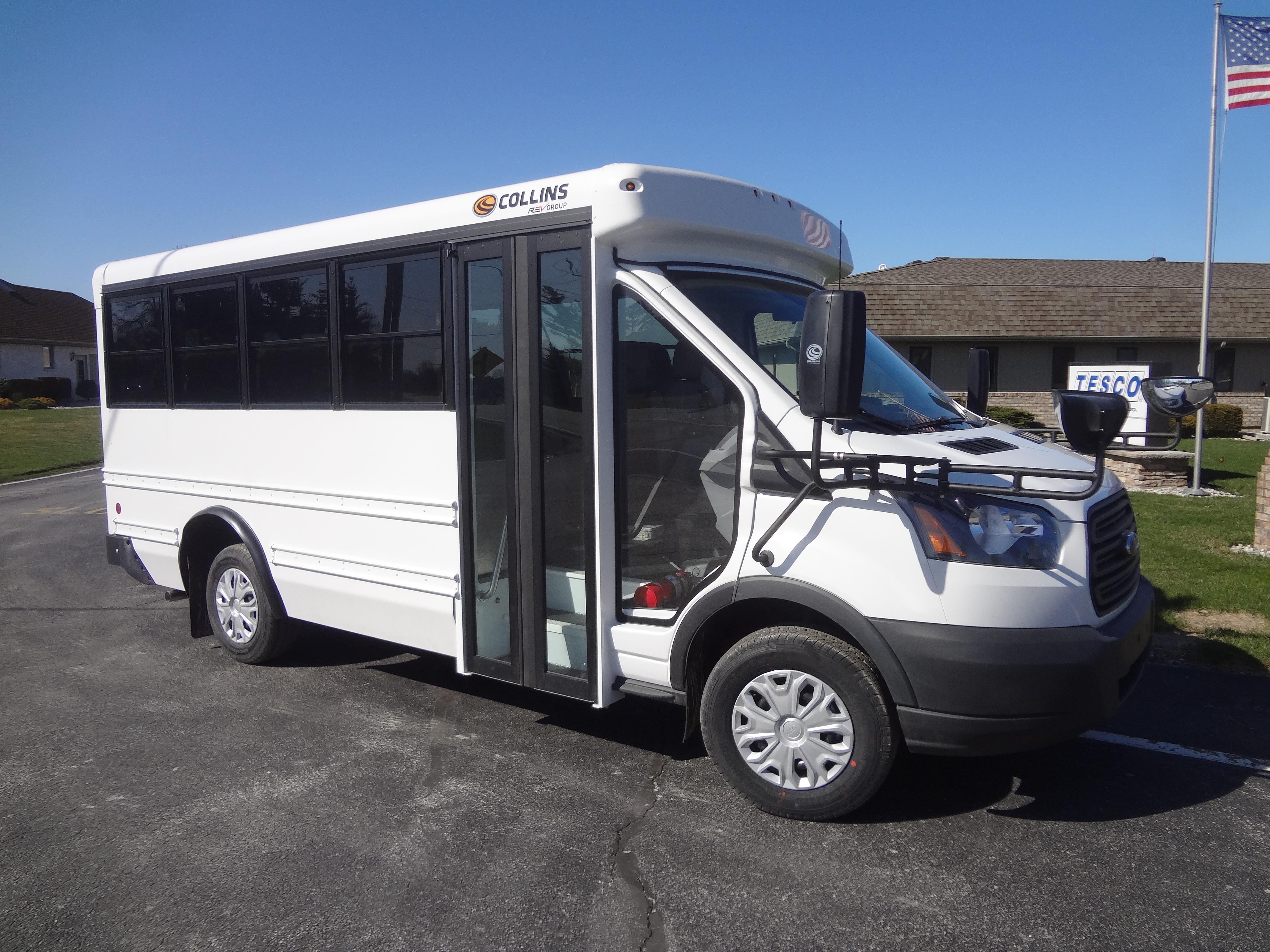

About the MFSAB

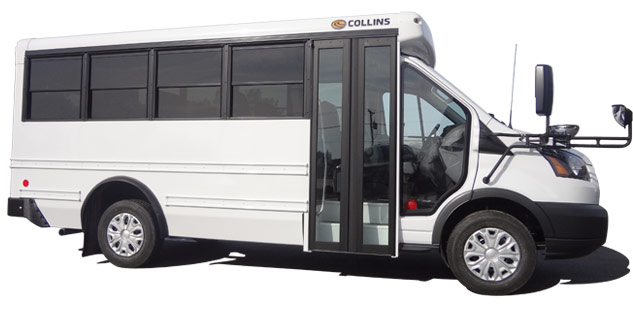

The Collins MFSAB, the multifunction school activity bus, is available on a Chevrolet, GMC, or Ford chassis with a gas, diesel, CNG, propane, or hybrid engine. With so many options, it can be built to your specifications. This bus has features unlike its alternatives, including larger passenger windows, external storage compartments, top of the line electrical panel, and SafeGuard XChange Seating.

Back to Collins Bus

Specifications

Capacity
Up to 34 passengers
Floor Type
Standard
GVWR
9,900# - 14,500#
Exterior Length
232" - 290"
Interior Width
77.9" or 90.9"
Wheelbase
138", 139", 158" or 159"
Chassis Model
GM or Ford
Co-Pilot
No

Floorplans

10 layouts for the MFSAB. Tap a plan to see it full size; your rep can spec seating, wheelchair positions and storage from any of them.

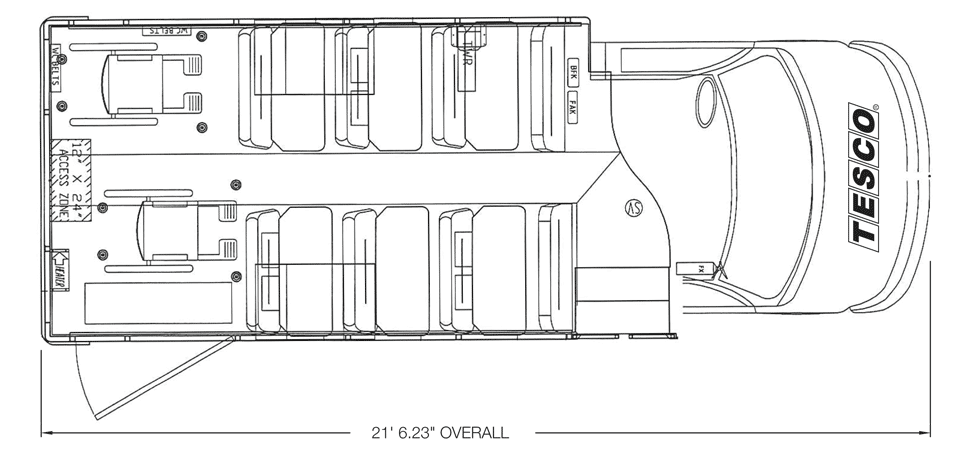

  • Collins Bus MFSAB floorplan A: 12 passenger with 2 wheelchair positions

    A 12 passenger with 2 wheelchair positions

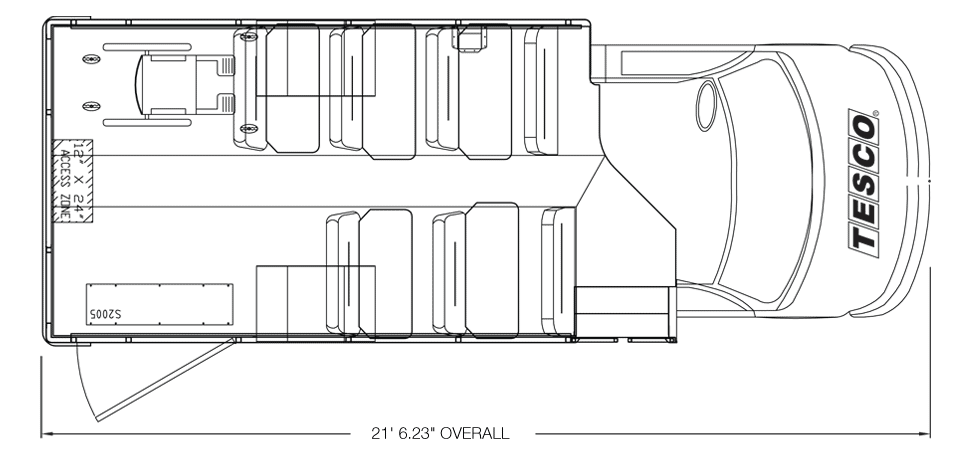

  • Collins Bus MFSAB floorplan B: 13 passengers with 1 wheelchair positions

    B 13 passengers with 1 wheelchair positions

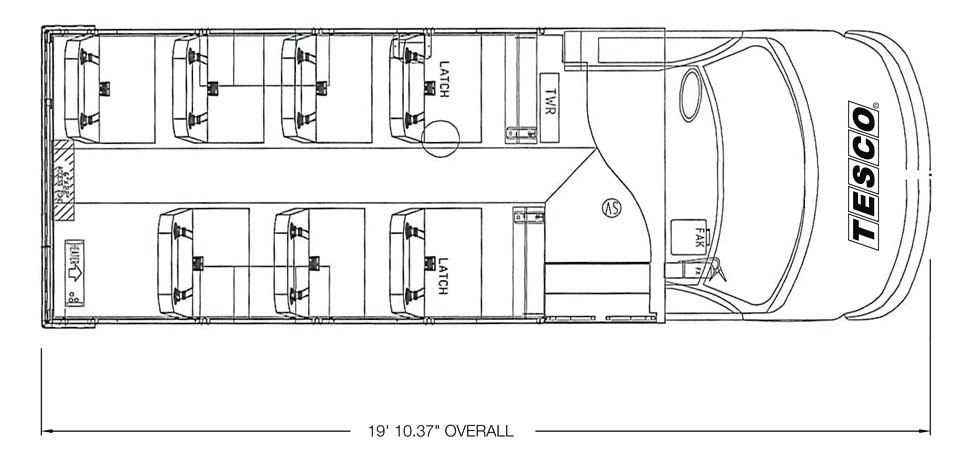

  • Collins Bus MFSAB floorplan C: 14 passengers

    C 14 passengers

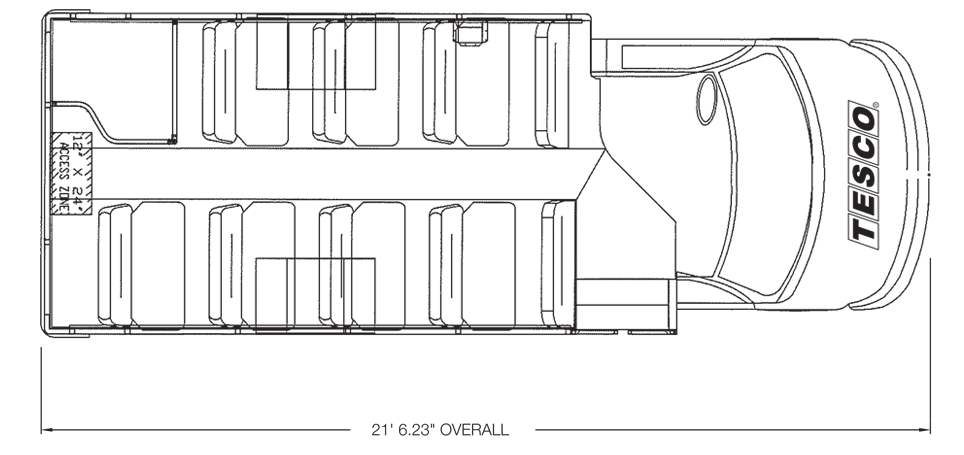

  • Collins Bus MFSAB floorplan D: 14 passengers

    D 14 passengers

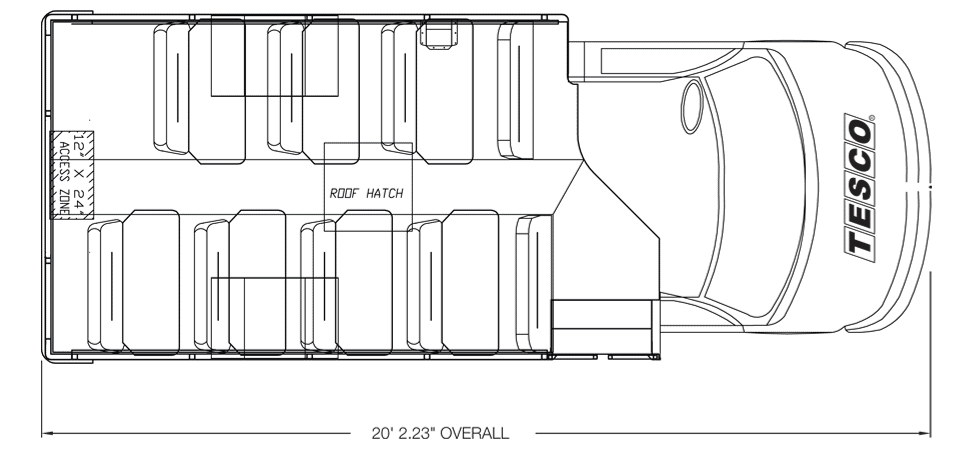

  • Collins Bus MFSAB floorplan E: 21 passengers

    E 21 passengers

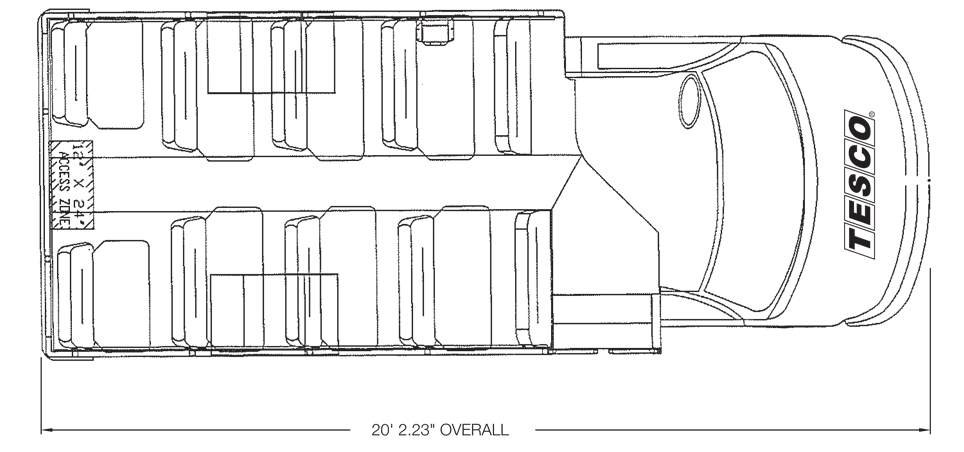

  • Collins Bus MFSAB floorplan F: 22 passengers

    F 22 passengers

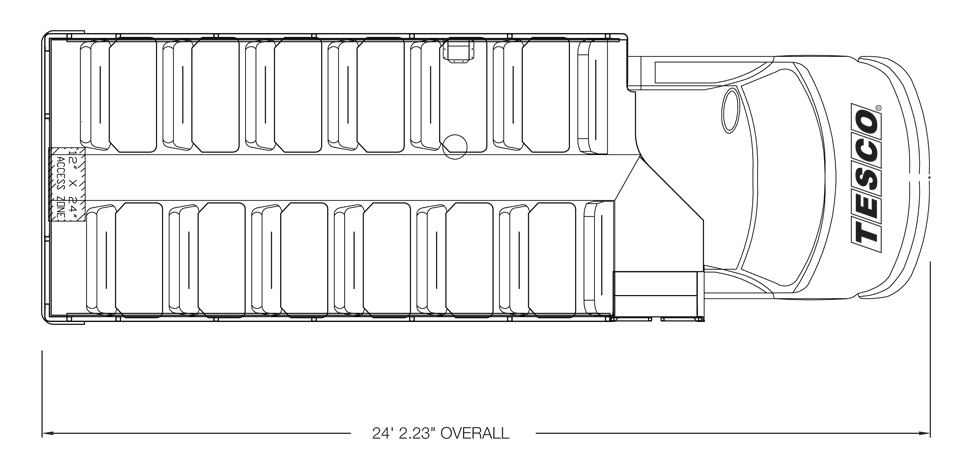

  • Collins Bus MFSAB floorplan G: 24 passengers

    G 24 passengers

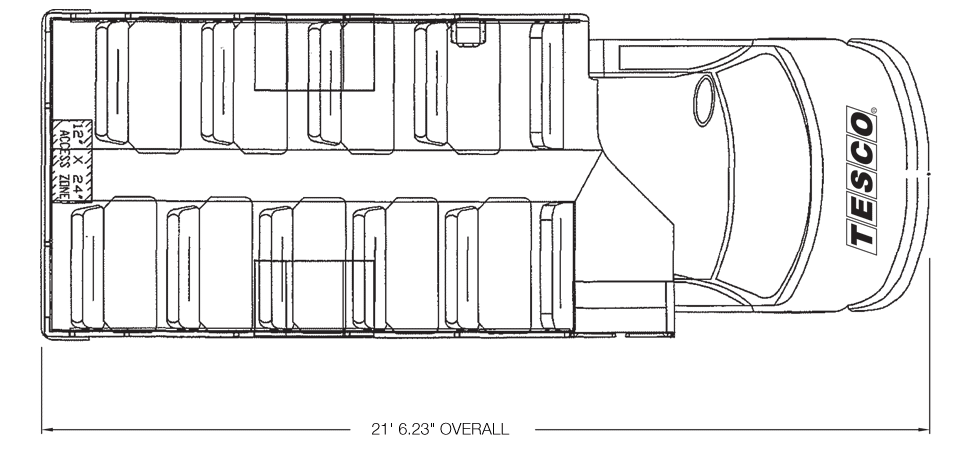

  • Collins Bus MFSAB floorplan H: 27 passengers

    H 27 passengers

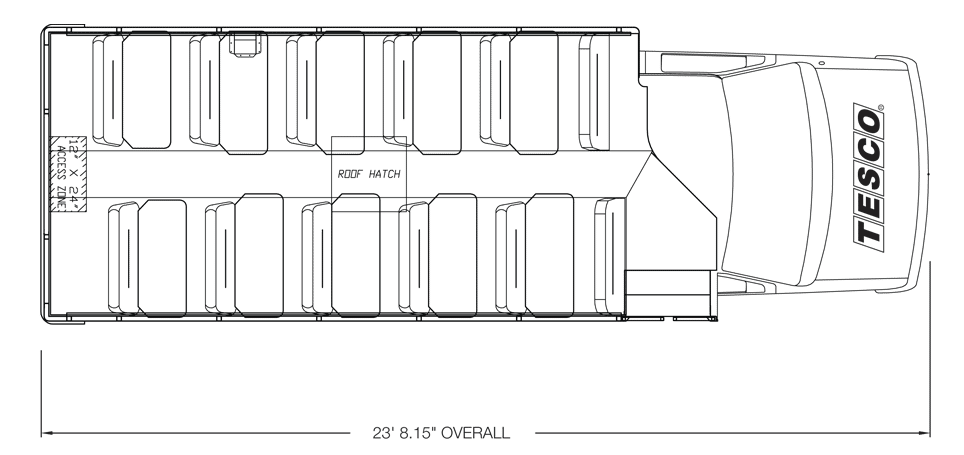

  • Collins Bus MFSAB floorplan I: 28 passengers

    I 28 passengers

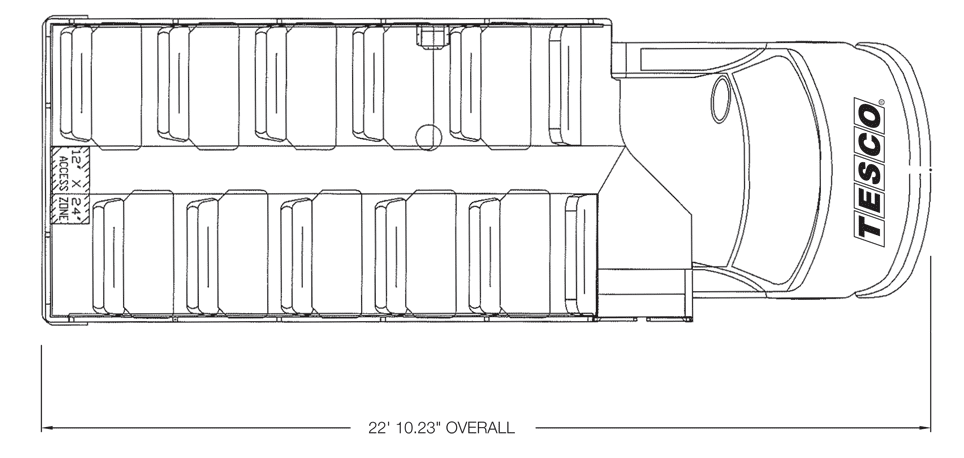

  • Collins Bus MFSAB floorplan I: 30 passengers

    I 30 passengers

Features

Collins Activity Bus Advantages

  • Safer alternative to the 15 passenger van.
  • Great resale value.
  • Extended rooflne allowing for taller windows and doors.
  • Various passenger & wheelchair configurations available.
  • Altoona tested for 7 years, 200,000 miles.

Chassis/Body

  • Chevrolet, GMC or Ford
  • Gas, Diesel, Propane, CNG or Hybrid
  • 138"-159" Wheelbase
  • 9,900-14,500 GVWR
  • Altoona Tested – 7 years/200,000 Miles
  • 5-Year Limited Structural Warranty

Exterior

  • Steel Cage Body
  • One Piece Tubular Roof Bows
  • Interlocking Structure Design
  • Aluminum Exterior Panels
  • Optional Slide-out Battery/Storage Compartment
  • LED Lighting Package
  • Heavy Duty Undercoating

Interior

  • Up to 76.5" Interior Headroom
  • Elevated & Standard Interior Floor Configurations
  • White Aluminum Interior Panels

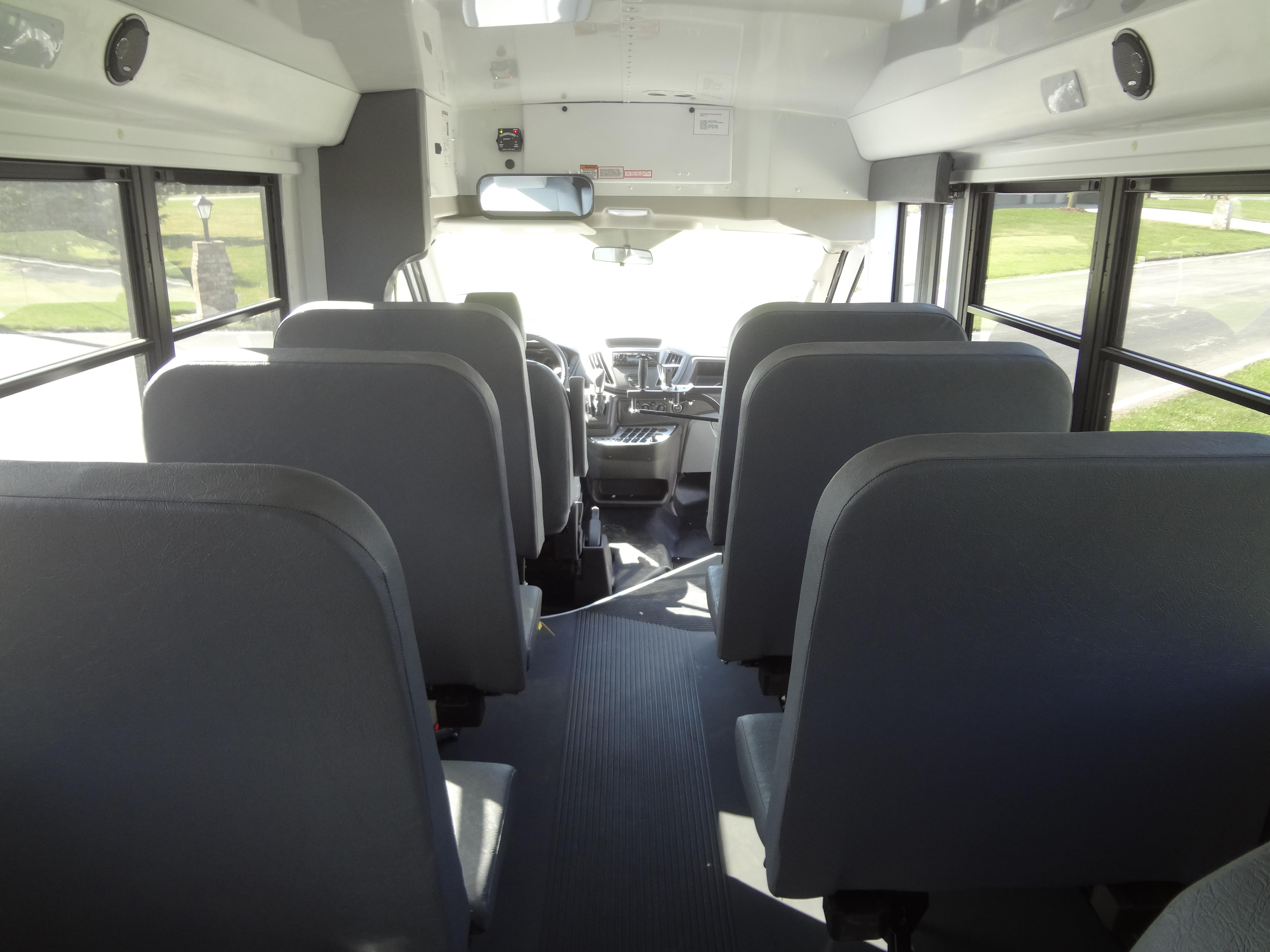

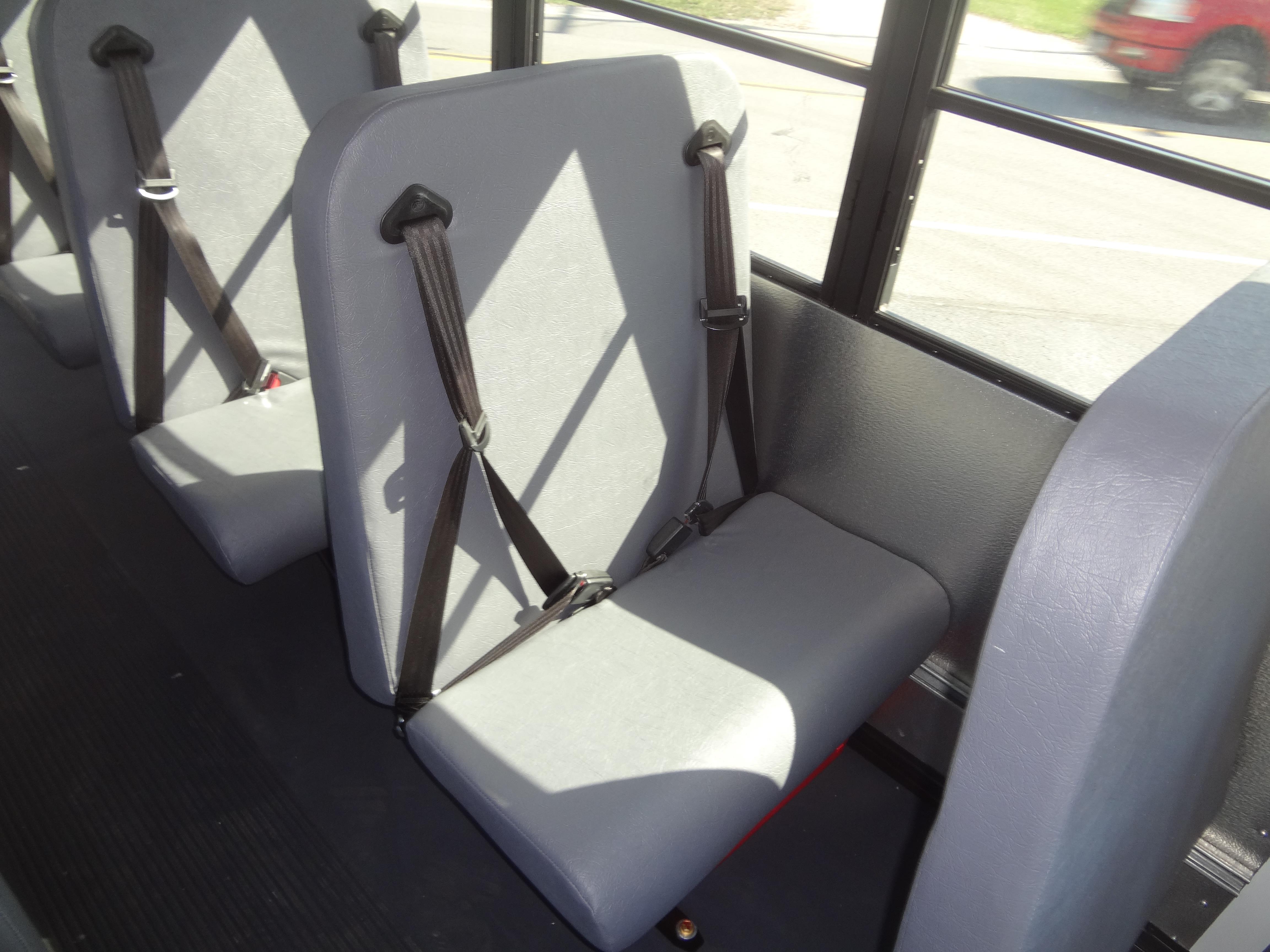

  • IMMI/Safeguard XChange School Bus Certified Seats
  • Larger Passenger Windows
  • In-Wall AC System
  • Upgraded Electrical System
  • Driver Storage Compartment
  • Optional Overhead Passenger Storage

Dimensions

GM

Engine
4.8L gas, 6.0L gas, 6.6L diesel, 6.0L propane
Transmission
6-speed automatic with heavy duty OD
GVWR (lbs)
9,900, 10,000, 10,100, 12,300, 14,200
Wheelbase
139", 159"
Fuel Tank Capacity
33 gallons

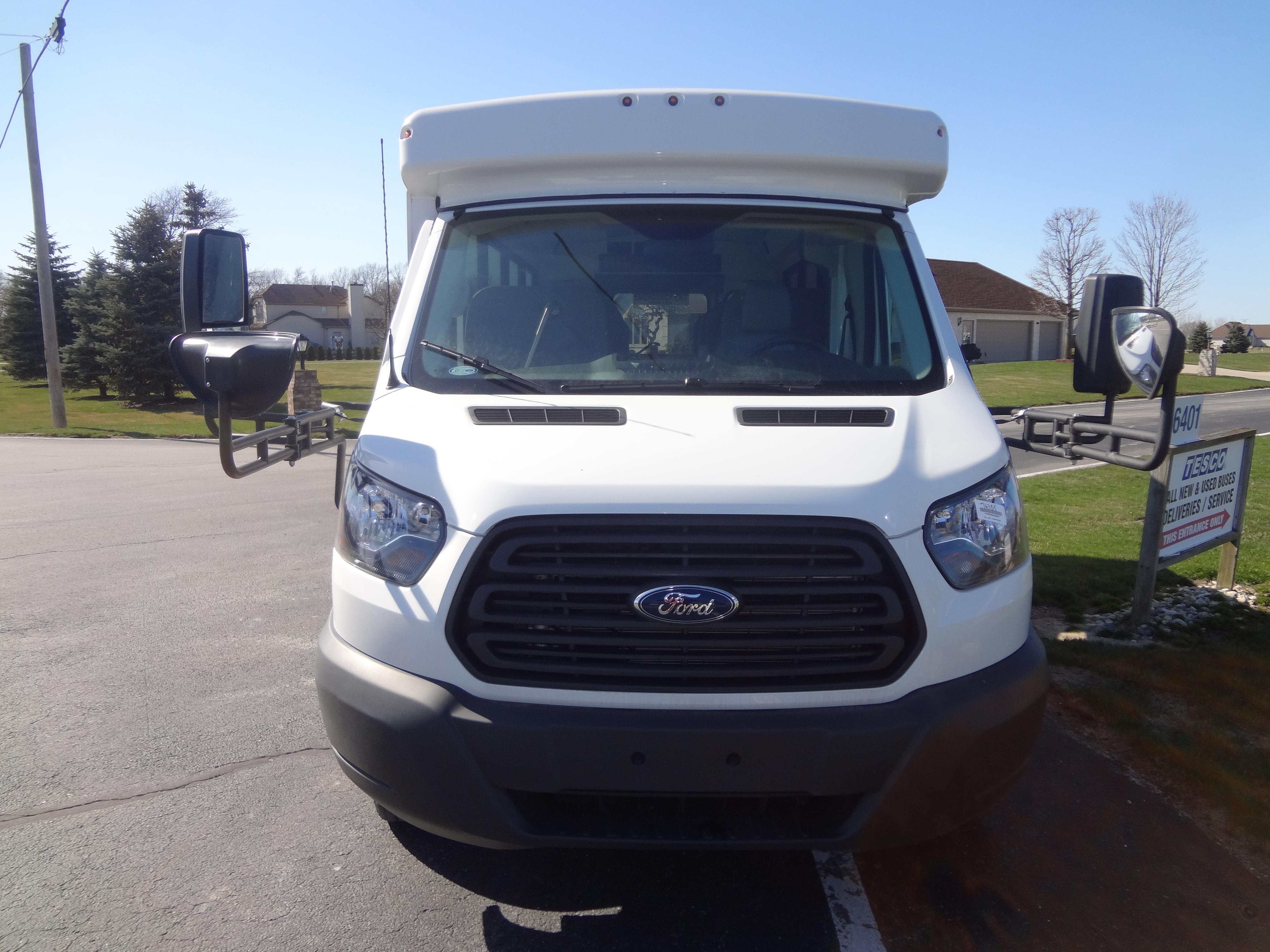

Ford Transit

Engine
3.7L V6 Gas or 3.2L Powerstroke Diesel
GVWR (lbs)
10,360 lbs.
Wheelbase
178"
Fuel Tank Capacity
25 gallons
