About the EZ Rider II
The E-Z Rider II continues to be one of the best mid-size, heavy-duty low-floor buses in the industry. Designed and built in the USA, the E-Z Rider II offers unmatched floor plan flexibility with ADA compliant wheelchair ramps. The ramps can be placed at the front, center or even both doors for superior paratransit flexibility. With hundreds and hundreds of options, the E-Z Rider II is custom built to meet your exacting needs. With the latest in exterior styling, the E-Z Rider II will separate your fleet from the ordinary.
Floorplans
13 layouts for the EZ Rider II. Tap a plan to see it full size; your rep can spec seating, wheelchair positions and storage from any of them.
-

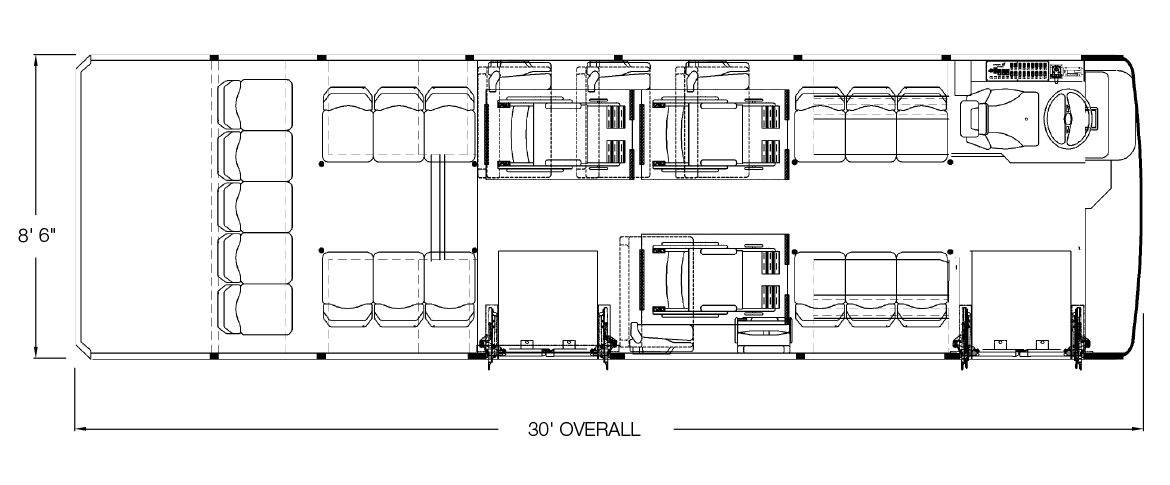

A 17 passenger with 3 wheelchair positions or 26 passenger
-

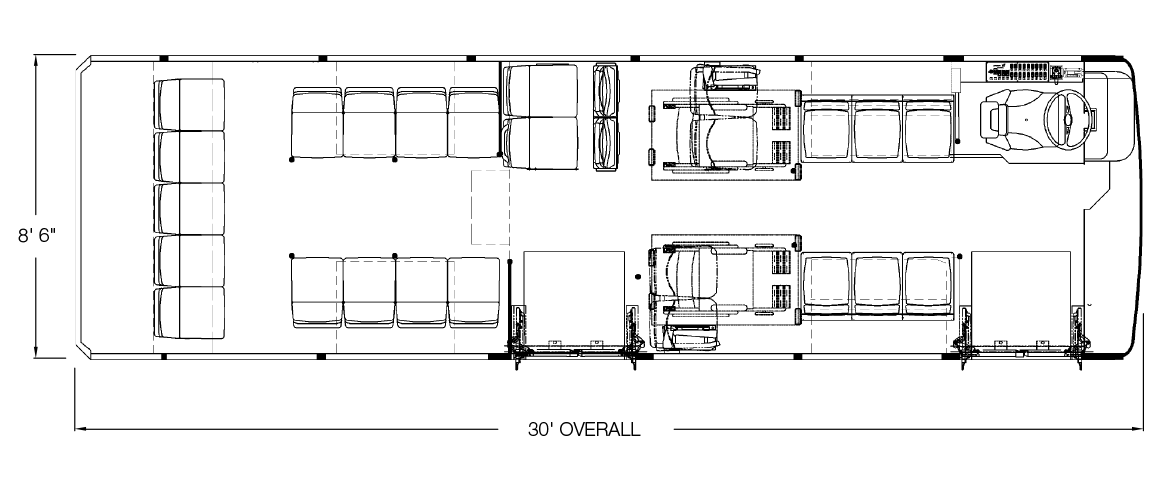

B 21 passenger with 2 wheelchair positions or 27 passenger
-

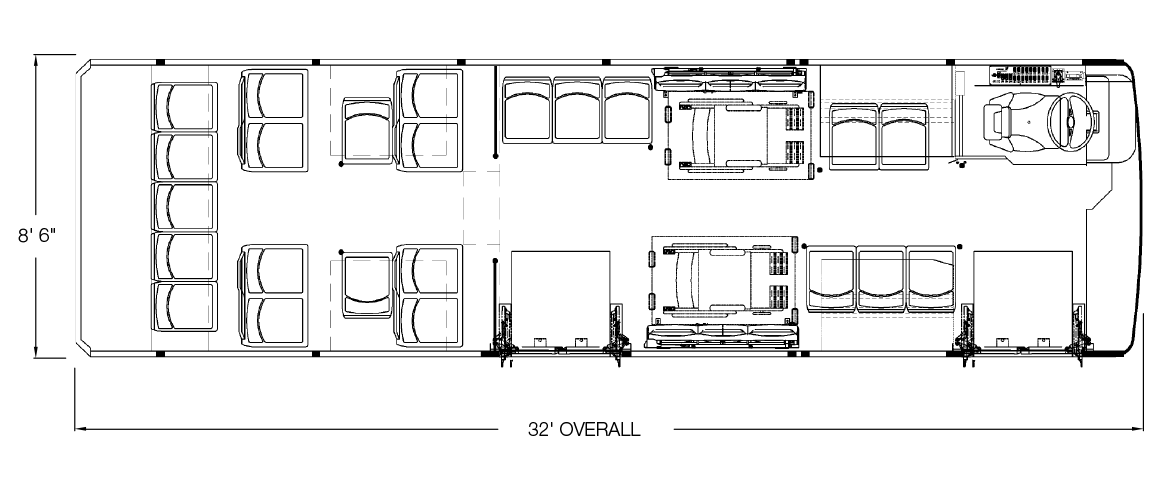

C 23 passenger with 2 wheelchair positions or 29 passenger
-

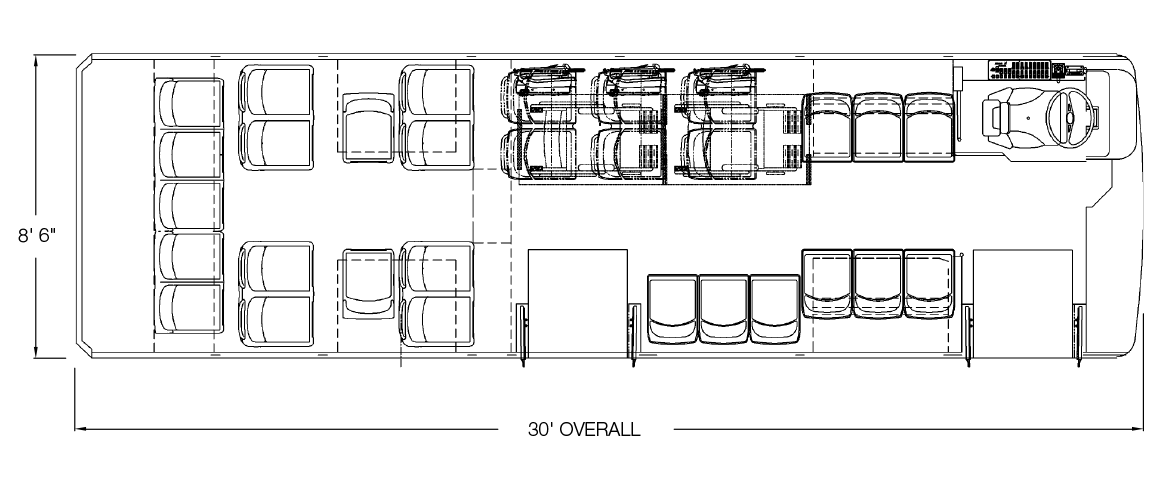

D 24 passenger with 2 wheelchair positions or 30 passenger
-

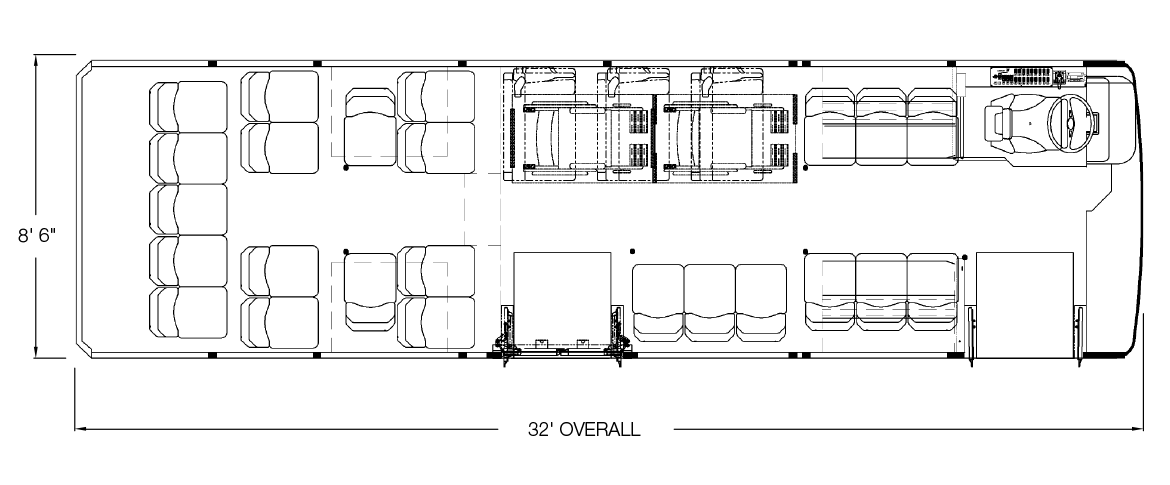

E 24 passenger with 2 wheelchair positions or 30 passenger
-

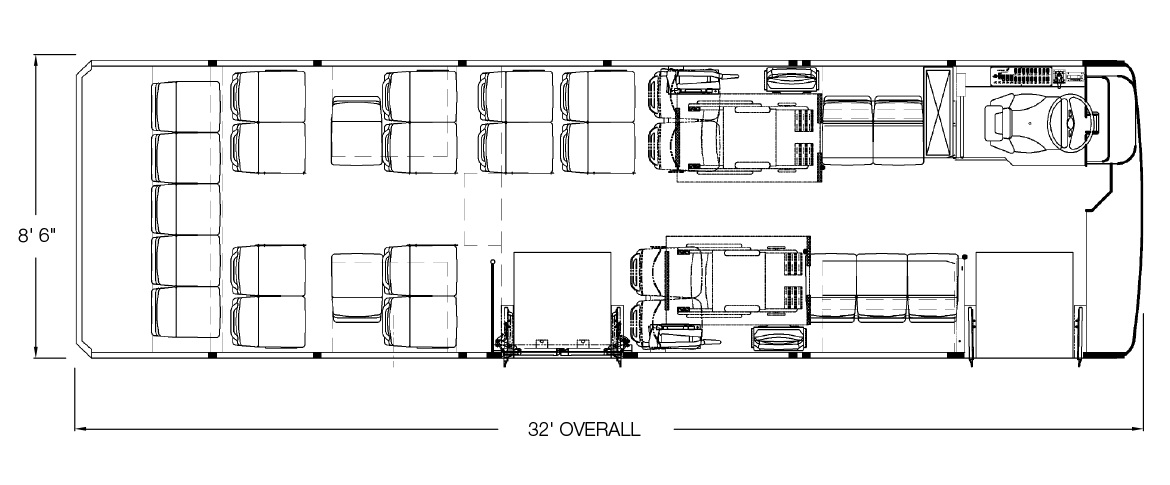

F 24 passenger with 2 wheelchair positions or 30 passenger
-

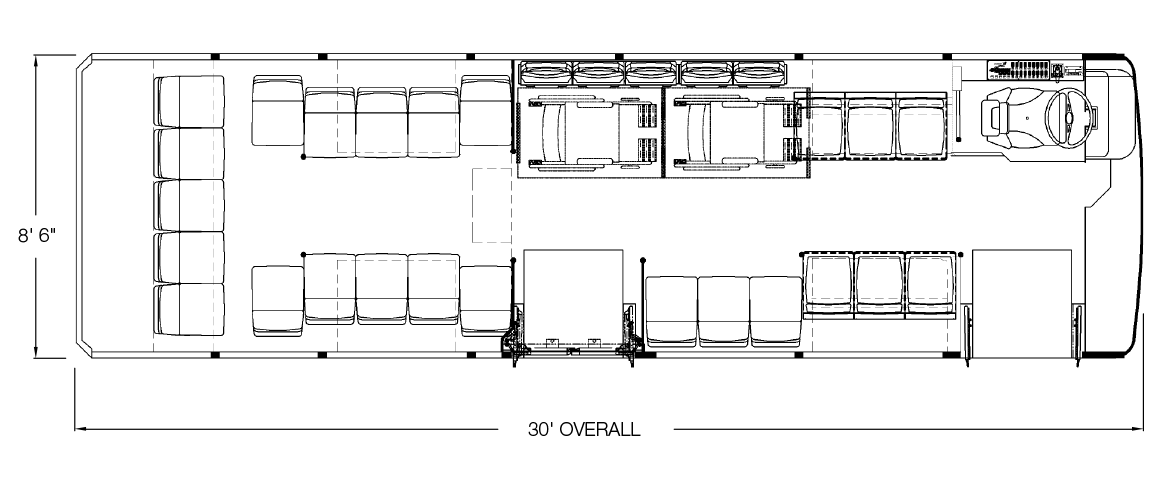

G 24 passenger with 2 wheelchair positions or 29 passenger
-

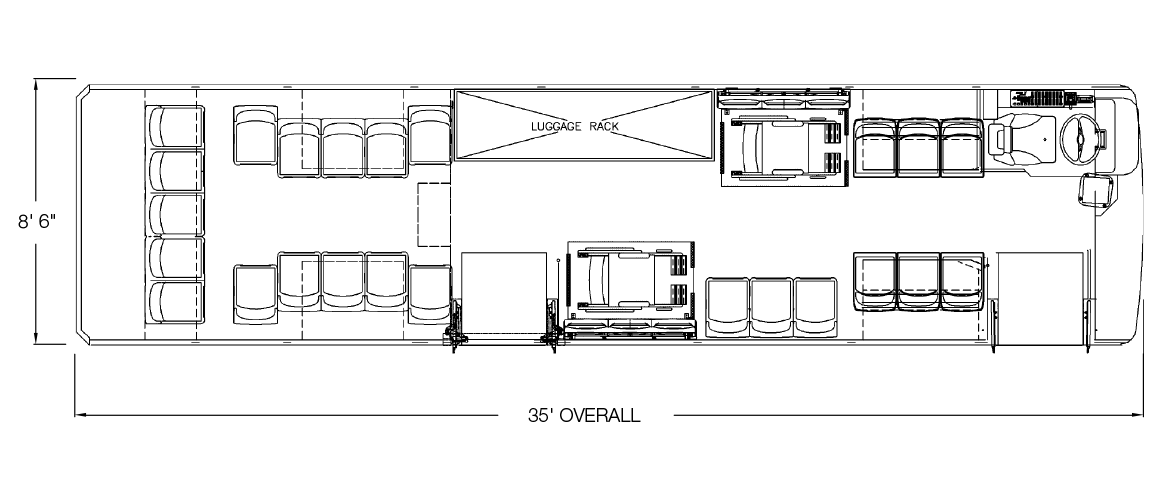

H 24 passenger with 2 wheelchair positions or 30 passenger
-

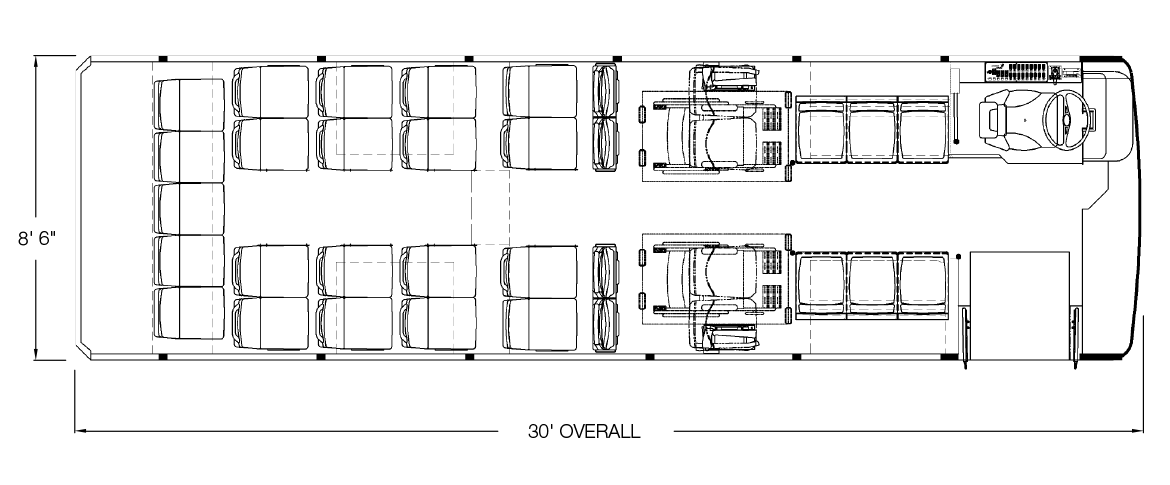

I 27 passenger with 2 wheelchair positions or 35 passenger
-

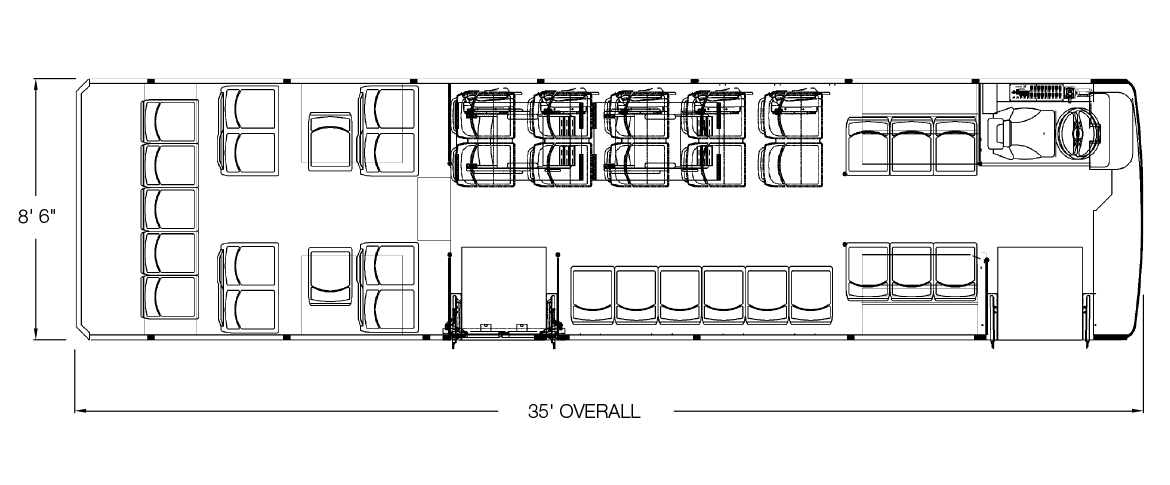

J 29 passenger with 2 wheelchair positions or 37 passenger
-

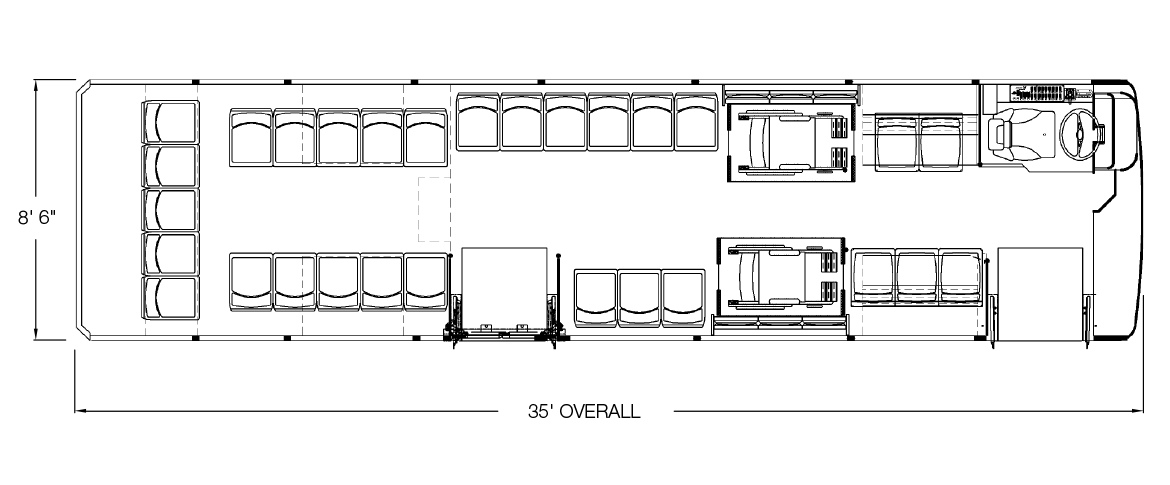

K 29 passenger with 2 wheelchair positions or 35 passenger
-

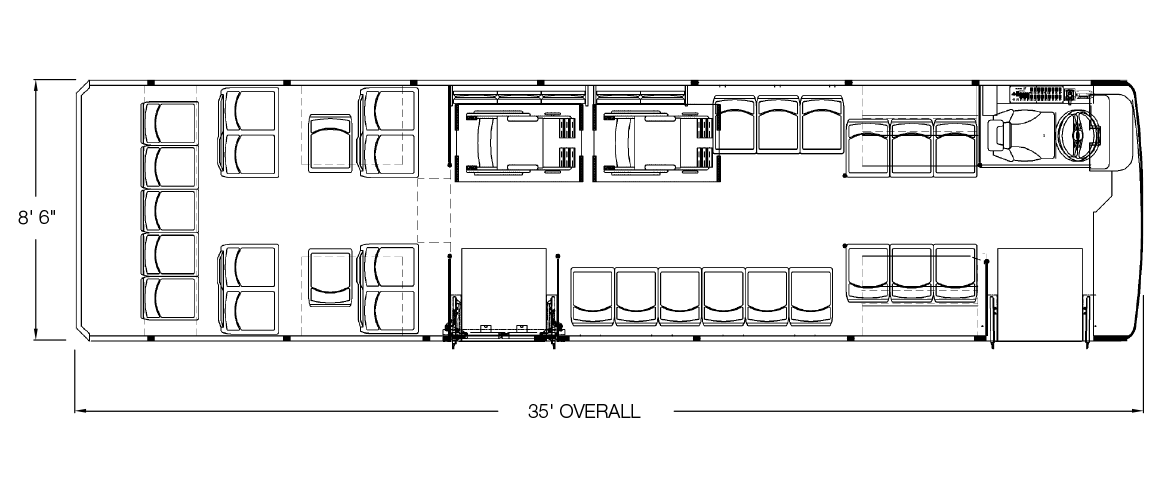

L 30 passenger with 2 wheelchair positions or 35 passenger
-

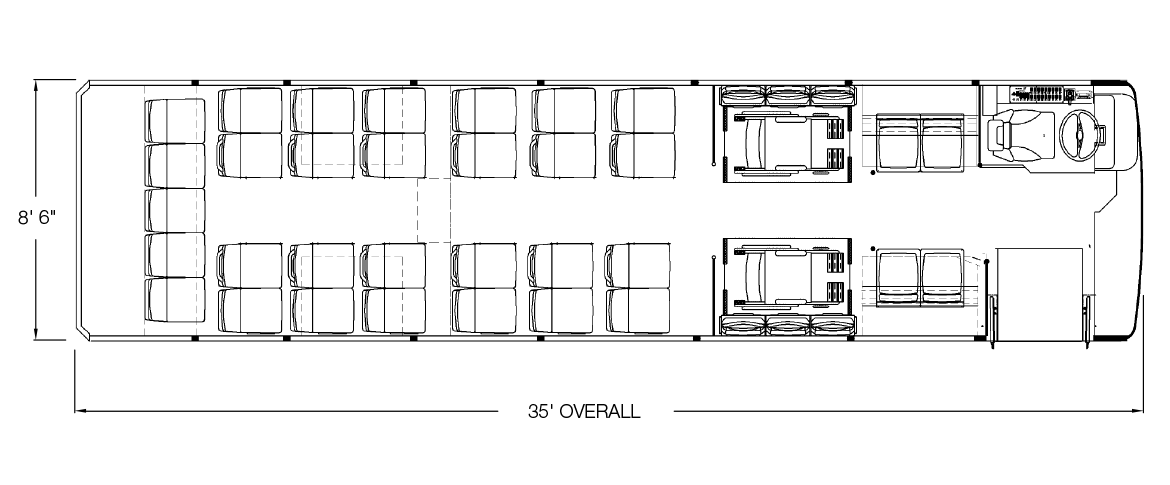

M 33 passenger with 2 wheelchair positions or 39 passenger
Features
ElDorado National EZ Rider II Advantages
- Swept windshield offers enhanced visibility and reduced wind noise
- One-piece welded monocoque safety cage
- Physical side impact and roof crush testing
- Wide-variety of floorplans available
- Available in 30', 32' and 35' models
Body
- Altoona tested for a 12 year / 500,000 mile life cycle
- Side impact crash tested
- Roof crush tested
- Integrally welded, monocoque body construction
- Welded steel gussets at all window posts
- Fully welded, 11 gauge steel wheelwells
- Grit blasted cage preparation
- Entire body structure is coated with PPG - CRE904 primer/sealer
- PPG, Corashield coating applied to exterior of exposed structural steel
- Interior of tubular structures coated with Ziebart - Type A rust proofing
- Solid steel rear engine firewall
- .080 inch aluminum exterior sidewalls
- .063 inch aluminum exterior roof panel
- Undercoated and edge sealed .75 inch thick, AC grade plywood flooring
- 2.5 inch thick fiberglass insulation with R-7 rating
- Platinum gray melamine interior walls and ceiling finish
- T-slide type passenger windows with 7/32 inch laminated safety glass
- RCA rubber flooring with ribbed aisle
- Front entry/exit door - 37.5 inch x 80 inch panel opening, Vapor brand
- Color and number coded electrical wiring with protective loom
- Manual resetting circuit breakers
- As-built electrical junction compartment schematic
- All ICC required exterior lighting
- Fluorescent interior lighting with ad rails
- Stepwell lighting
- Rear engine compartment controls and gauges
- 7 inch x 14 inch exterior mirrors with integrated convex lenses
- Passenger assists fabricated of stainless steel
- Driver sun visor
- Dash mounted heater/defroster system
- Roof mounted emergency escape hatch and vent
- One color, full body paint finish
- Two-stage undercoating process
- Rear mud flaps
- Front tow hooks
- Transit grade HELP bumpers, front and rear
Chassis
- Solid I-beam front axle: Arvin Meritor brand
- Conventional rear axle: Arvin Meritor brand
- Air ride suspension - front and rear axles
- Cummins ISB-02 diesel engine
- Cummins engine protection system
- Allison B300R transmission
- S-cam air brake system with integral ABS - front and rear axles
- 22.5 inch painted steel wheels
- 255/70R 22.5 steel belted radial tires
- 80 gallon fuel tank
- 8-D battery
- 200 amp rated alternator
- High idle system
- Non-sandwiched designed radiator/charge air cooler layout
- Stainless steel radiator tanks
- Vertical exhaust pipe
- Gear driven air compressor
- Power assist steering
- High capacity, disposable air cleaner with filter service indicator
- Engine hour meter
Dimensions
30' Model
- Passengers
- Up to 33
- GVWR
- 31,280 lbs.
- Body Length
- 30' 7"
- Body Width
- 102"
- Body Height
- 125˝ with exhaust, 126˝ with roof HVAC, 136˝ with CNG
- Interior Height
- 95" over front axle, 78" over rear axle
- Wheelbase
- 160"
- Approach Angle
- 9 degrees
- Breakover Angle
- 13 degrees
- Departure Angle
- 9 degrees
- Step Height
- 14.38"
- Available Engines
- Cummins - diesel, CNG, LNG Hybrid Electric
- Transmissions
- Allison - B300R, B400R, Voith, ZF
- Fuel Capacity
- 80 gallons, (diesel)
- Passenger HVAC
- Roof or rear mounted
- Front Axle
- ArvinMeritor
- Rear Axle
- ArvinMeritor
- Brakes
- S-cam drum w/automatic slack adjusters
- Tires
- 275/70R 22.5
- Suspension
- Air – 2 bag per axle; trailing arm taper leaf
32' Model
- Passengers
- Up to 35
- GVWR
- 35,000 lbs.
- Body Length
- 31' 3"
- Body Width
- 102"
- Body Height
- 125˝ with exhaust, 126˝ with roof HVAC, 136˝ with CNG
- Interior Height
- 95" over front axle, 78" over rear axle
- Wheelbase
- 168"
- Approach Angle
- 9 degrees
- Breakover Angle
- 13 degrees
- Departure Angle
- 9 degrees
- Step Height
- 14.38"
- Available Engines
- Cummins - diesel, CNG, LNG Hybrid Electric
- Transmissions
- Allison - B300R, B400R, Voith, ZF
- Fuel Capacity
- 80 gallons, (diesel)
- Passenger HVAC
- Roof or rear mounted
- Front Axle
- ArvinMeritor
- Rear Axle
- ArvinMeritor
- Brakes
- S-cam drum w/automatic slack adjusters
- Tires
- 275/70R 22.5
- Suspension
- Air – 2 bag per axle; trailing arm taper leaf
35' Model
- Passengers
- Up to 43
- GVWR
- 35,000 lbs.
- Body Length
- 35' 7"
- Body Width
- 102"
- Body Height
- 125˝ with exhaust, 126˝ with roof HVAC, 136˝ with CNG
- Interior Height
- 95" over front axle, 78" over rear axle
- Wheelbase
- 220"
- Approach Angle
- 9 degrees
- Breakover Angle
- 13 degrees
- Departure Angle
- 9 degrees
- Step Height
- 14.38"
- Available Engines
- Cummins - diesel, CNG, LNG Hybrid Electric
- Transmissions
- Allison - B300R, B400R, Voith, ZF
- Fuel Capacity
- 80 gallons, (diesel)
- Passenger HVAC
- Roof or rear mounted
- Front Axle
- ArvinMeritor
- Rear Axle
- ArvinMeritor
- Brakes
- S-cam drum w/automatic slack adjusters
- Tires
- 275/70R 22.5
- Suspension
- Air – 2 bag per axle; trailing arm taper leaf
