Home Bus Models Federal Coach Spirit

Federal Coach · Discontinued

Spirit

11 floorplans, full specifications and what's on the lot right now.

Capacity
8-27 passengers
Chassis
Ford E350 or E450
Floor
Standard
Wheelbase
138" - 208"
Request info See the floorplans

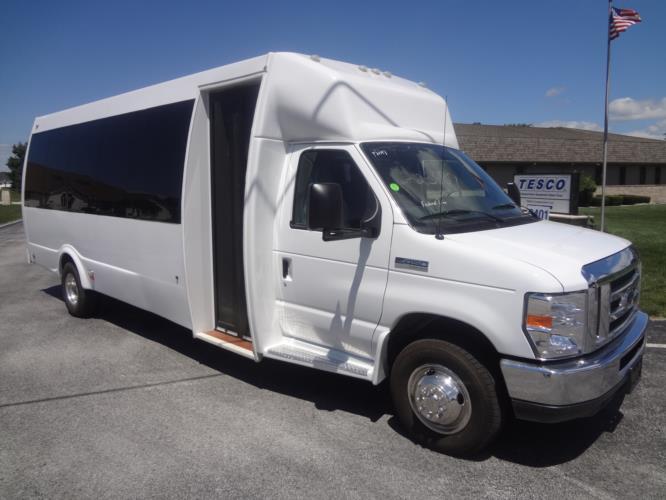

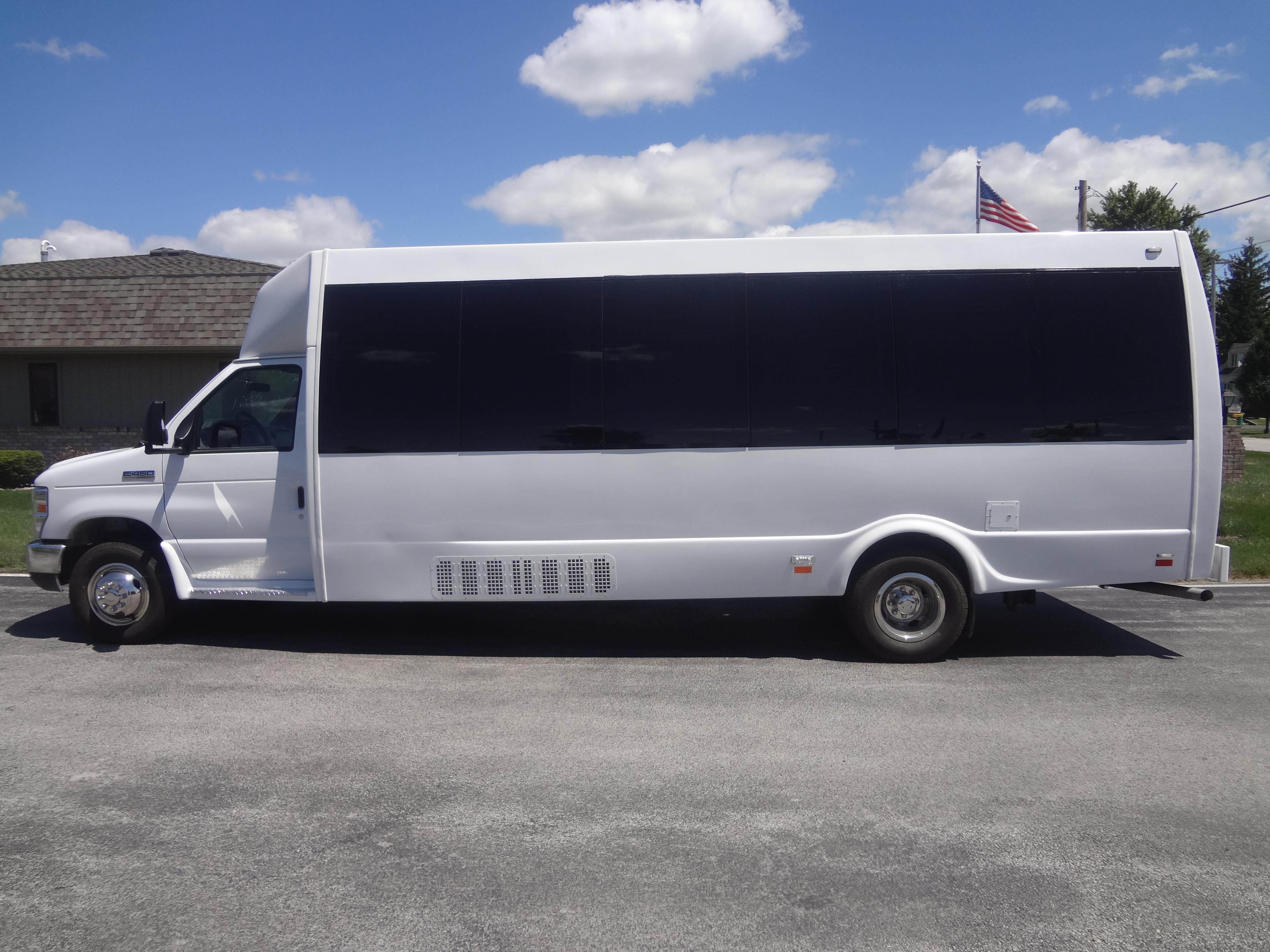

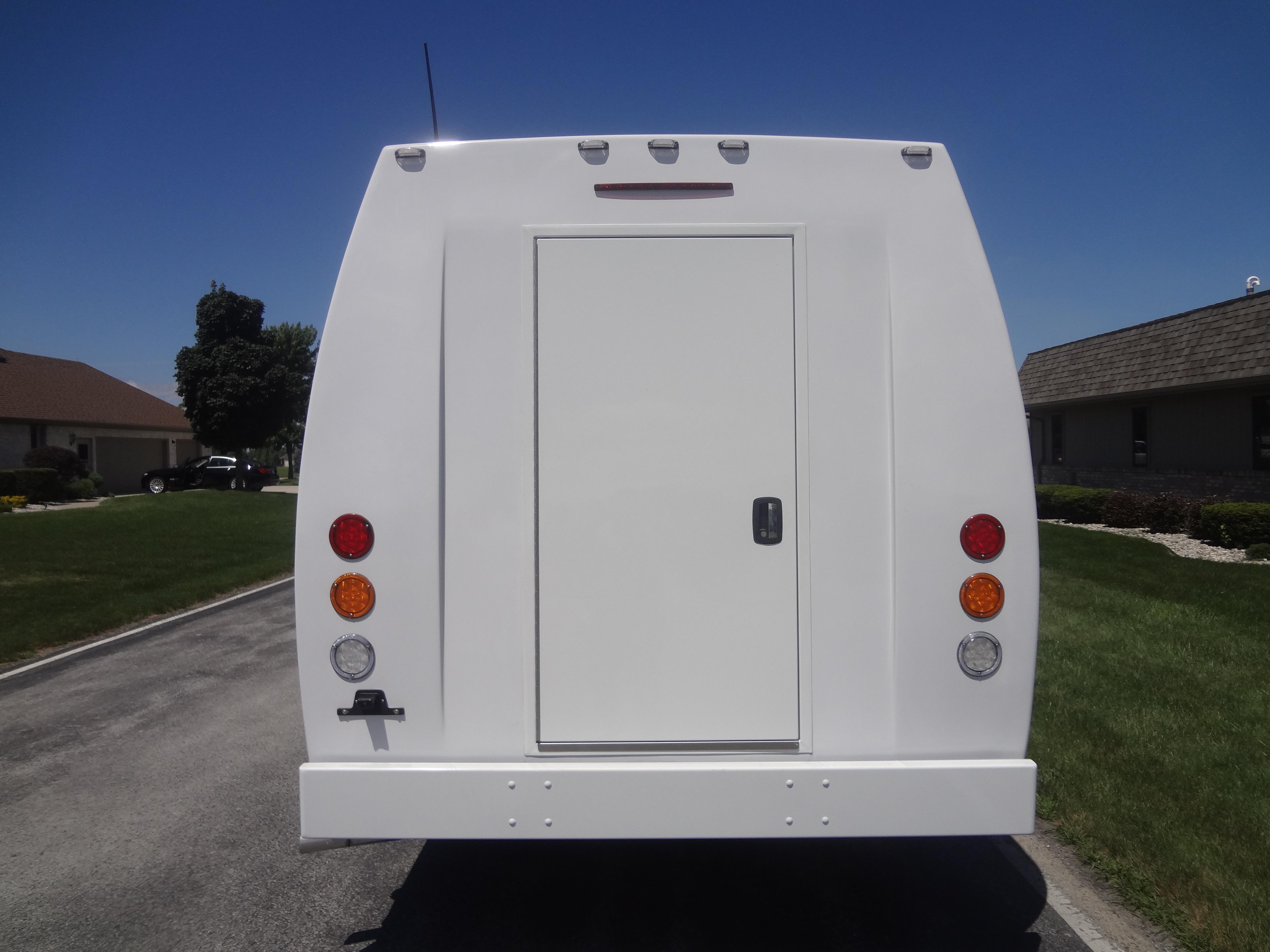

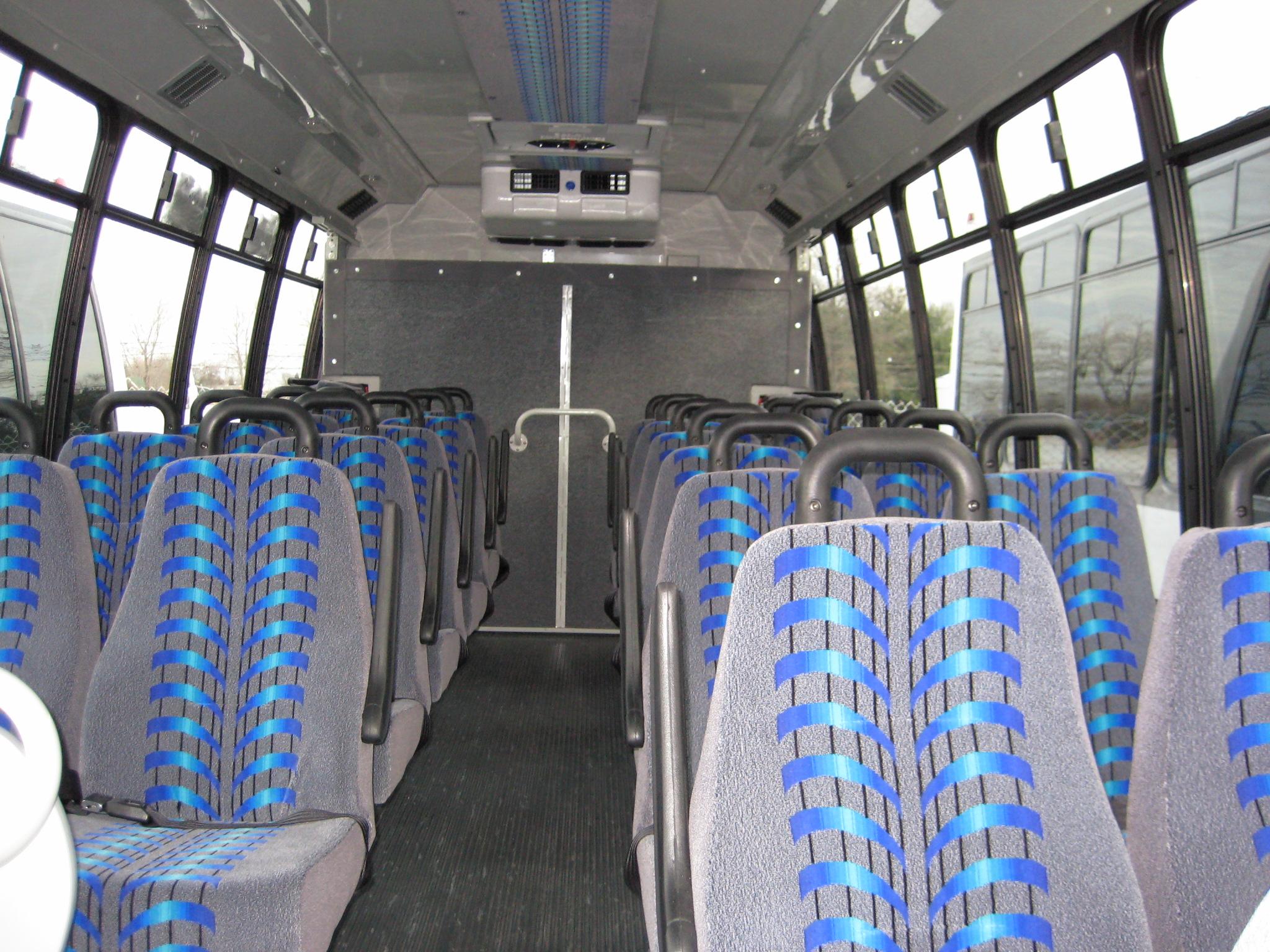

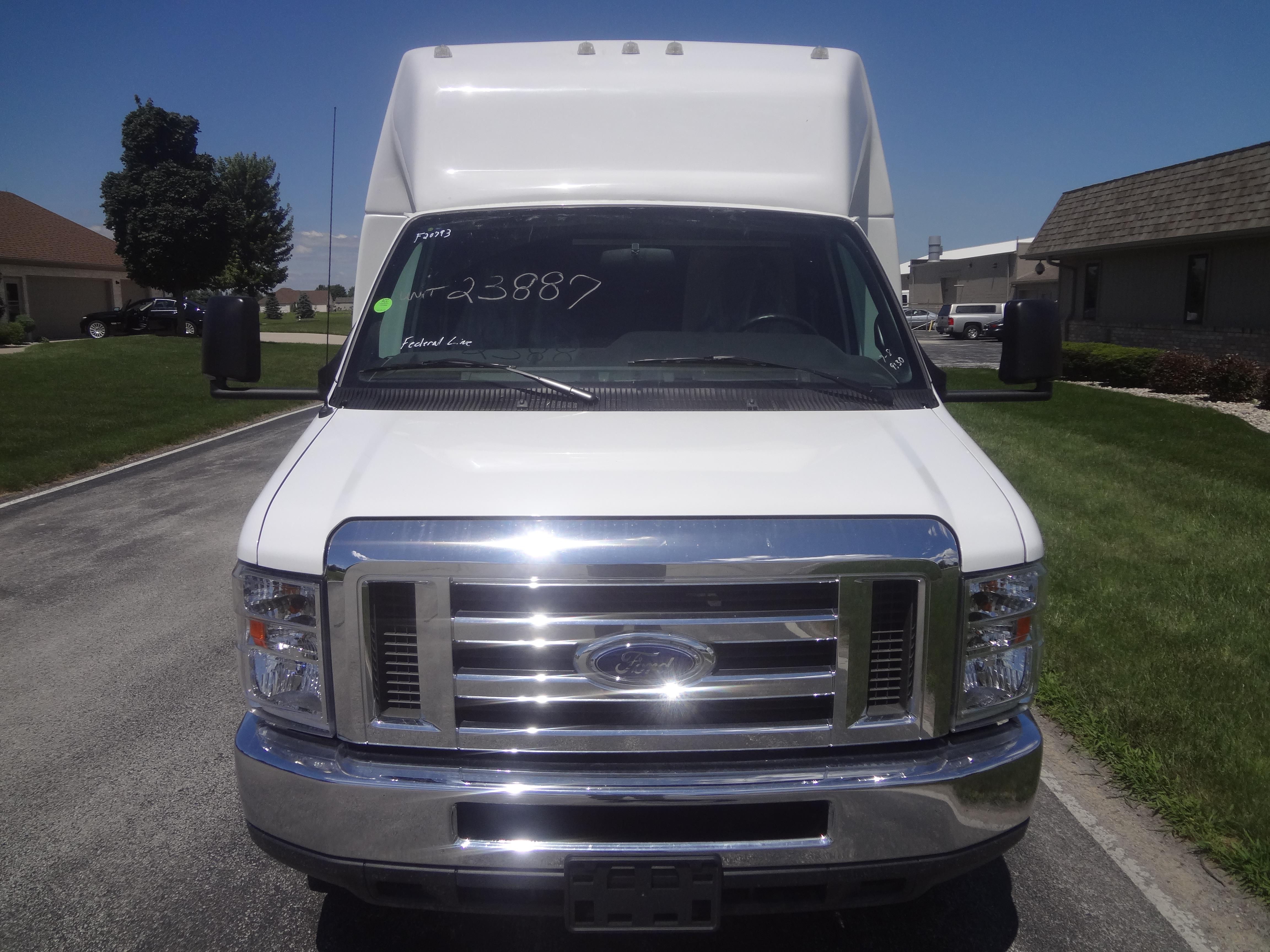

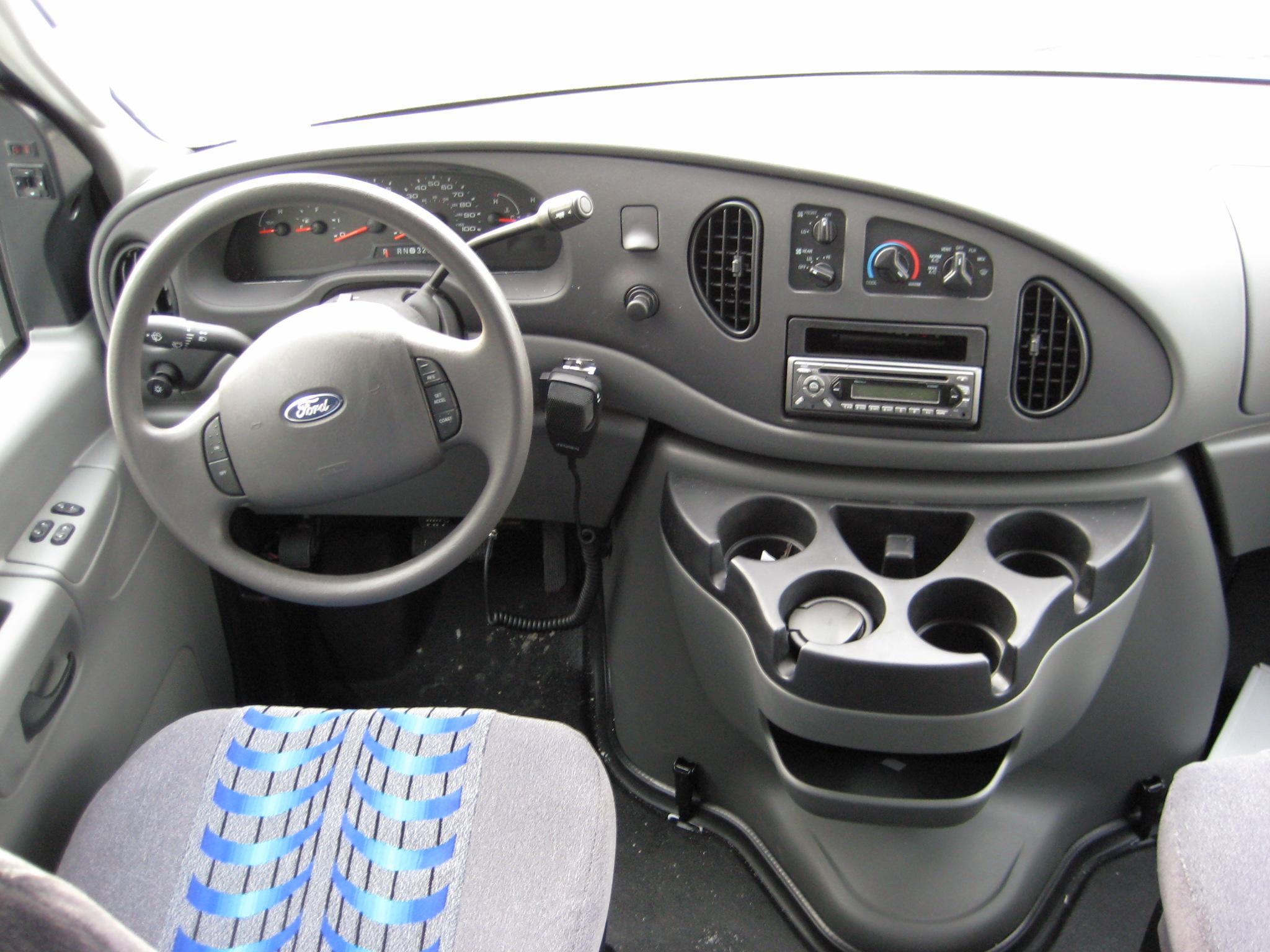

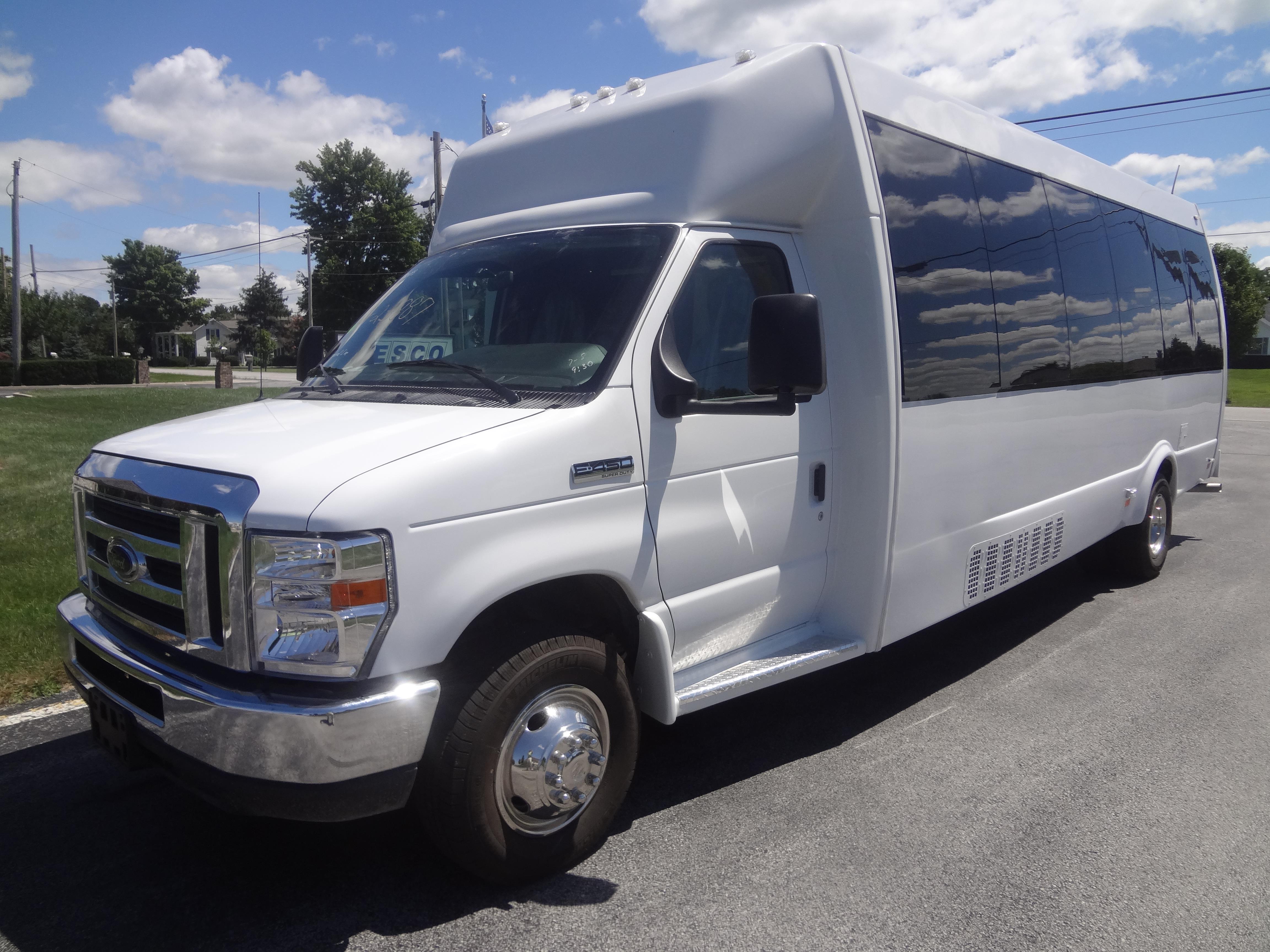

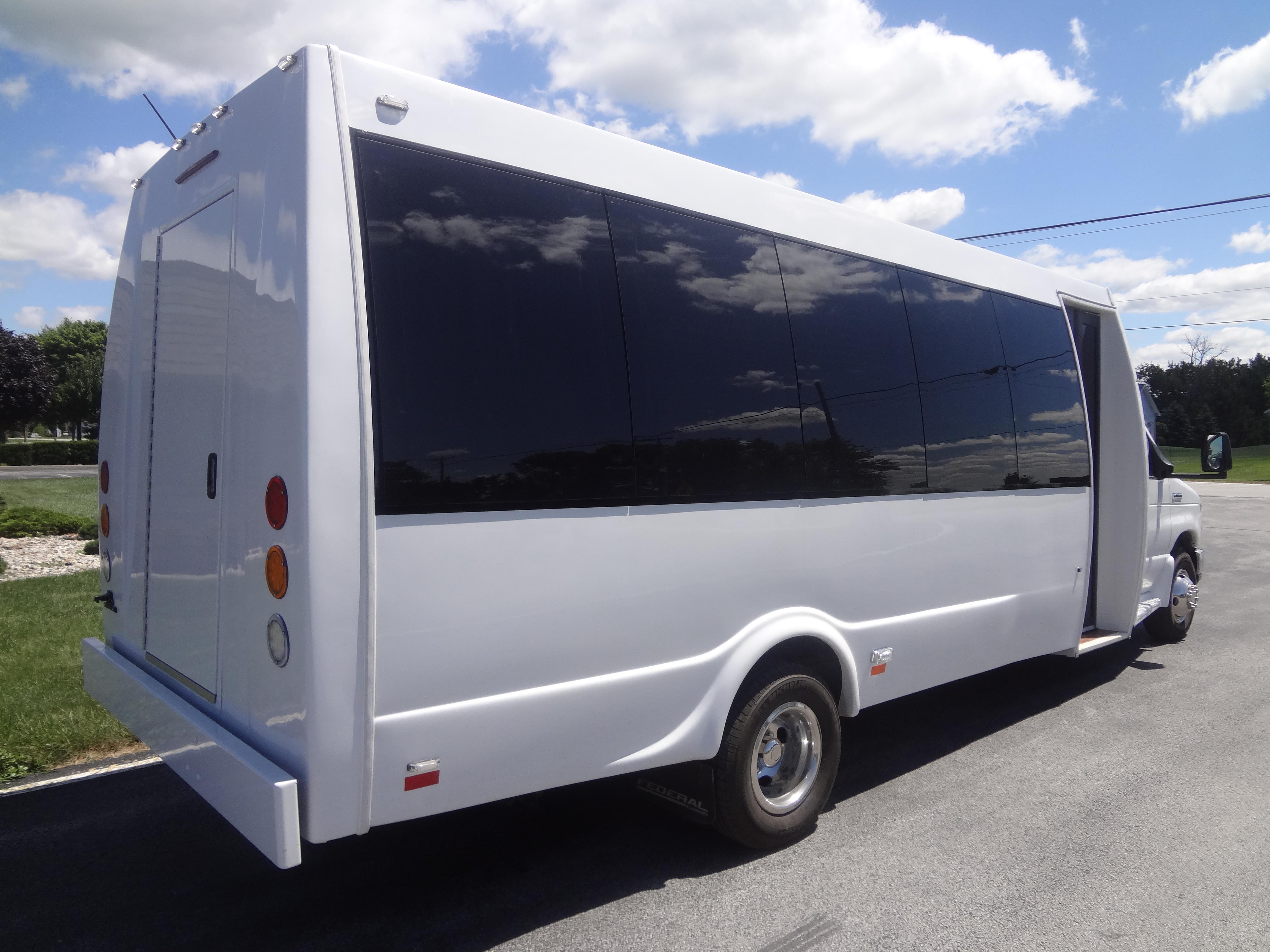

About the Spirit

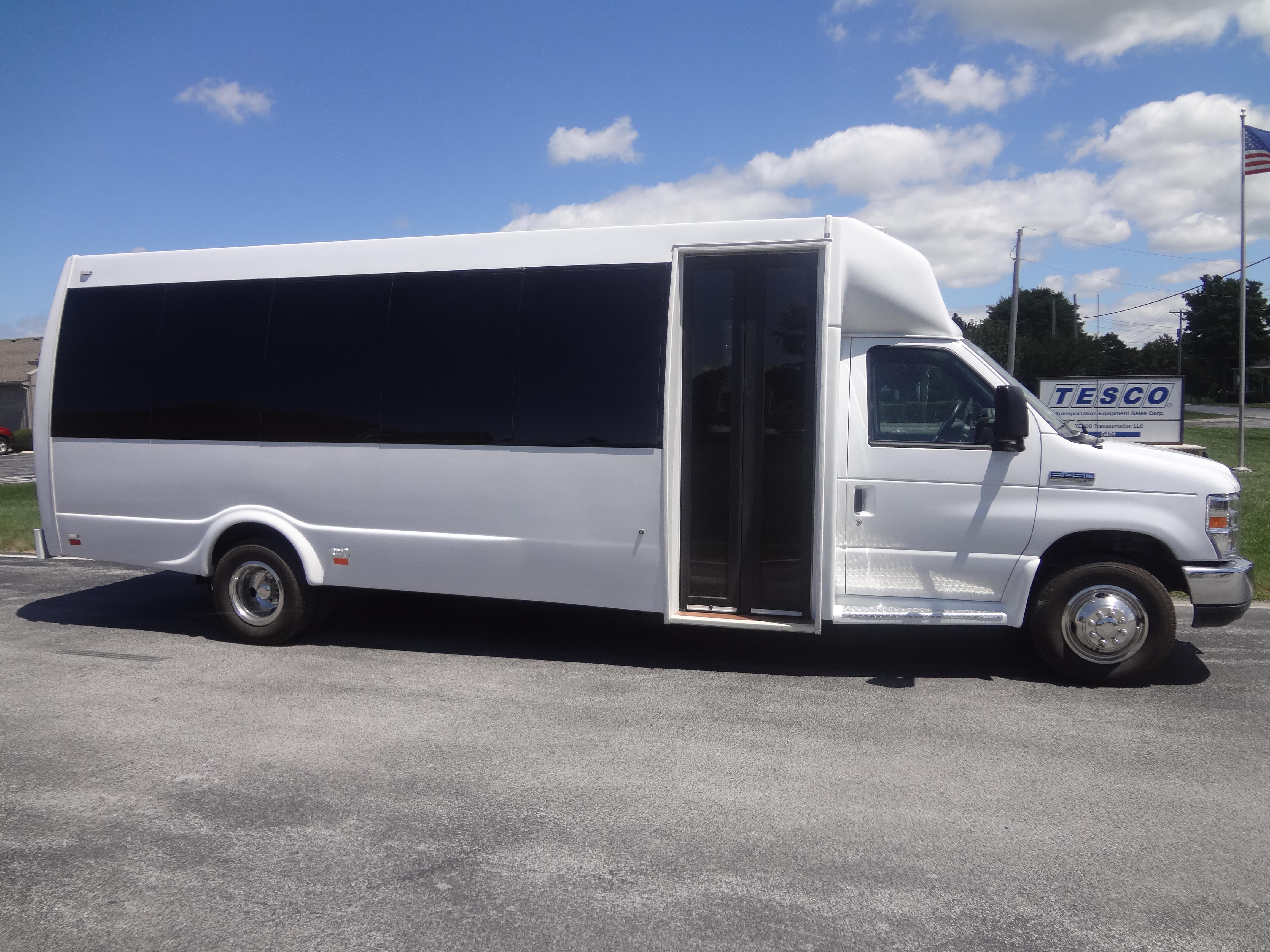

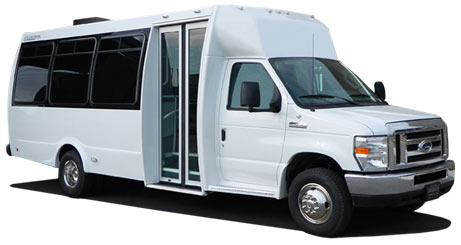

The Spirit Shuttle Bus is the perfect non-CDL option for church groups, tour groups and corporate executives who demand luxury transportation. Seating is available for 14-25 passengers plus a driver. The all-fiberglass body and 150 degree radius sidewalls give the Spirit the high-end appearance typically not found in other small buses on the market today. There’s no need to transport your passengers in a cramped 15-passenger van when the Spirit offers plenty of head and leg room. The large touring windows with black-out trim allow your passengers to experience a full view as they enjoy the ride. A long list of optional conversion features allows you to customize your bus to your specific needs. When it comes to transporting your small group in luxury, the Spirit from Federal Coach leads the way.

Back to Federal Coach

Specifications

Capacity
8-27 passengers
Floor Type
Standard
GVWR
11,500# - 14,500#
Exterior Length
21' - 27'
Interior Width
92.5"
Wheelbases
138" - 208"
Chassis Models
Ford E350 or E450
Co-Pilot
Yes

Floorplans

11 layouts for the Spirit. Tap a plan to see it full size; your rep can spec seating, wheelchair positions and storage from any of them.

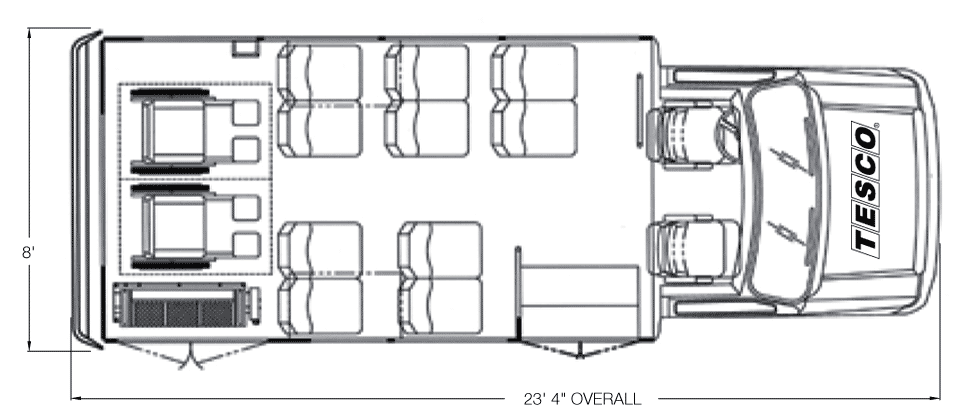

  • Federal Coach Spirit floorplan A: 11 passenger with 2 wheelchair positions

    A 11 passenger with 2 wheelchair positions

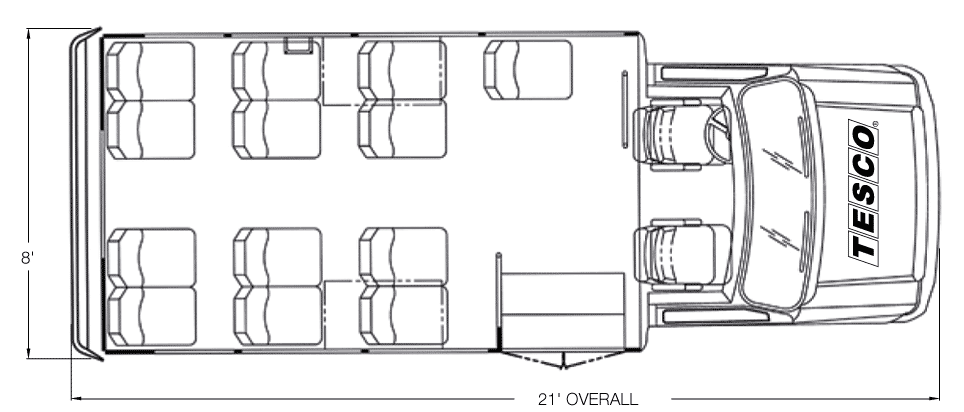

  • Federal Coach Spirit floorplan B: 14 passengers

    B 14 passengers

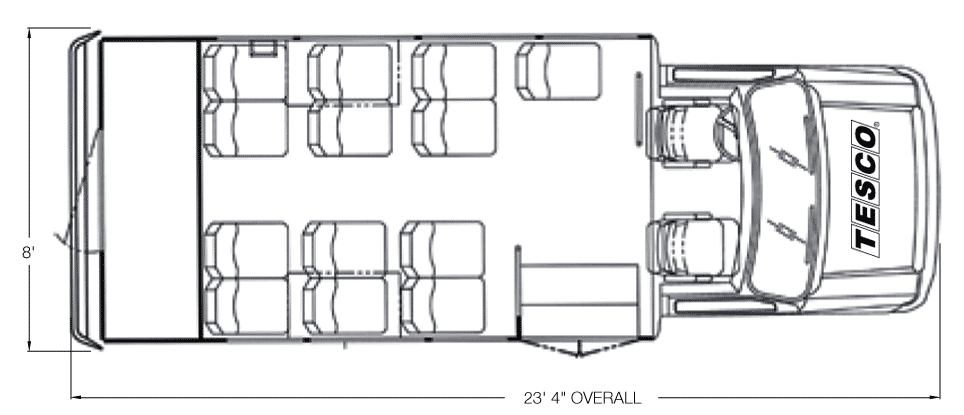

  • Federal Coach Spirit floorplan C: 14 passengers with luggage

    C 14 passengers with luggage

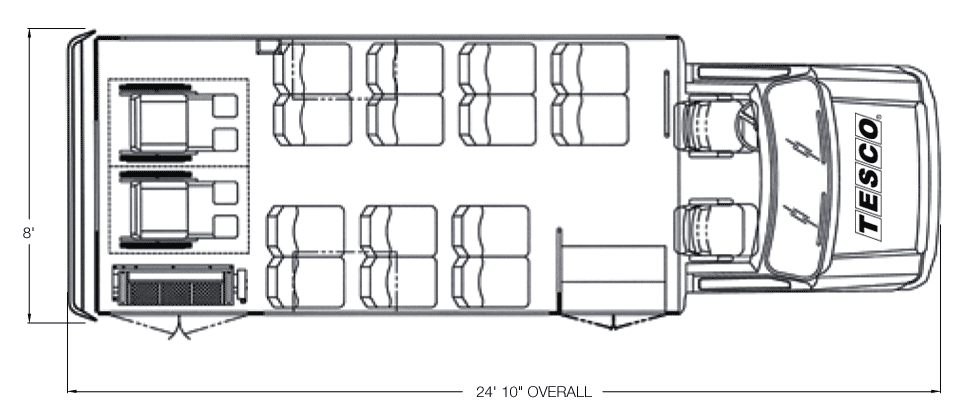

  • Federal Coach Spirit floorplan D: 15 passengers with 2 wheelchair positions

    D 15 passengers with 2 wheelchair positions

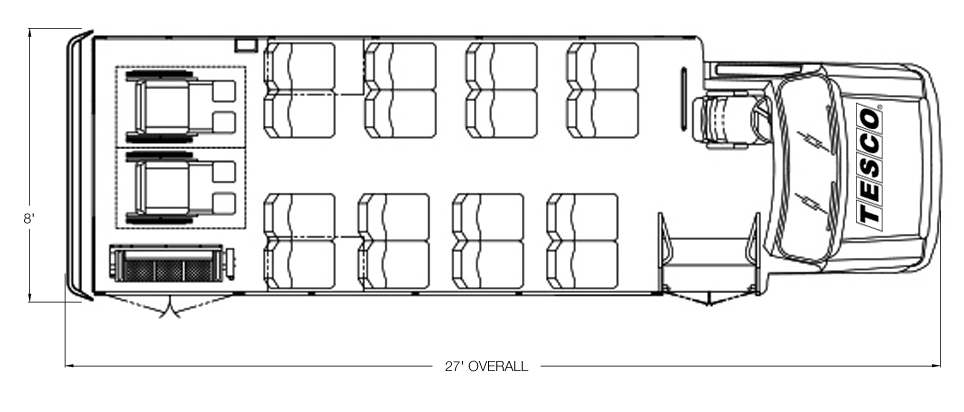

  • Federal Coach Spirit floorplan E: 16 passengers with 2 wheelchair positions

    E 16 passengers with 2 wheelchair positions

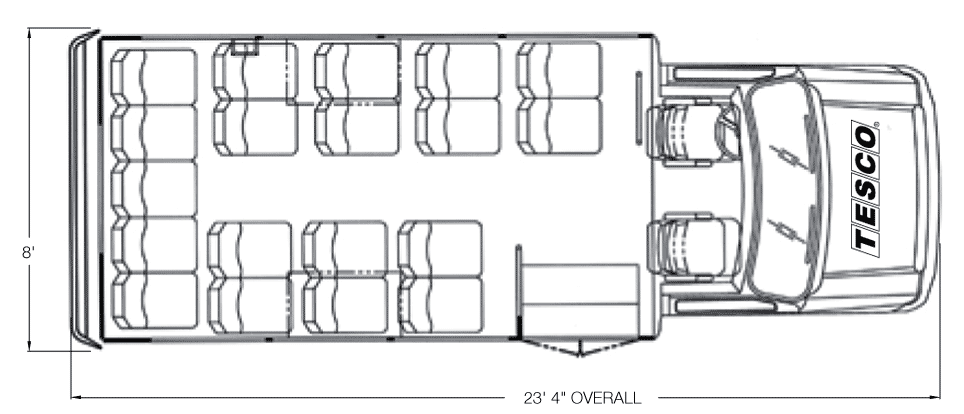

  • Federal Coach Spirit floorplan F: 20 passengers

    F 20 passengers

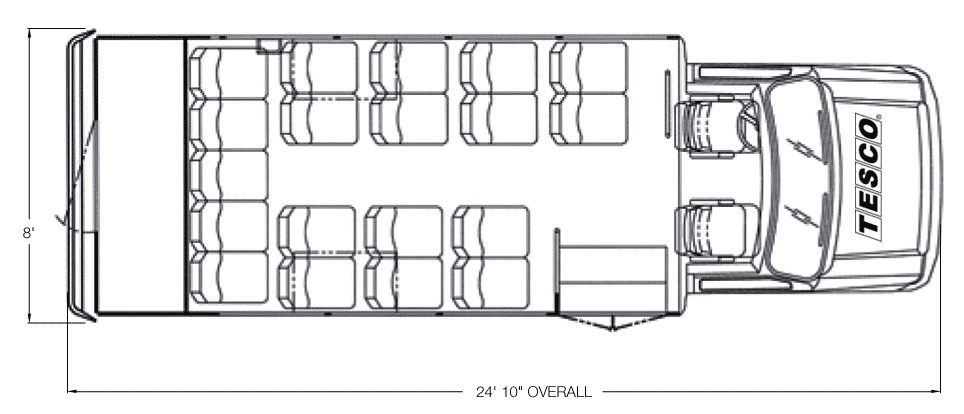

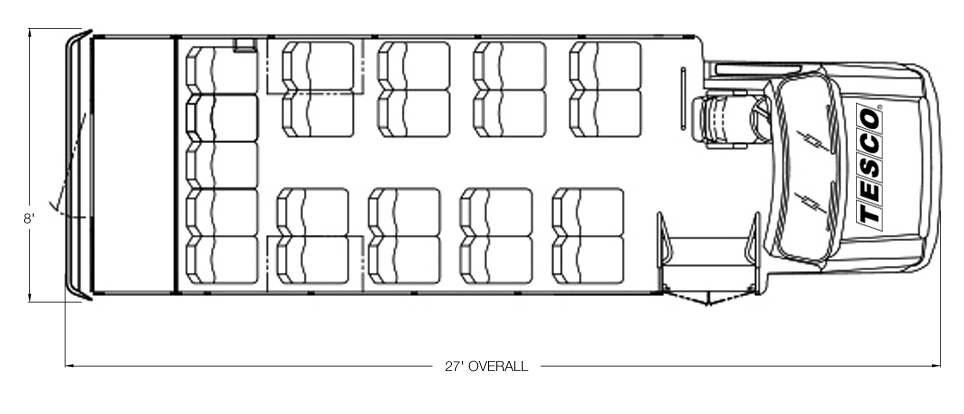

  • Federal Coach Spirit floorplan G: 20 passengers with luggage

    G 20 passengers with luggage

  • Federal Coach Spirit floorplan H: 8 passengers with 2 wheelchair positions

    H 8 passengers with 2 wheelchair positions

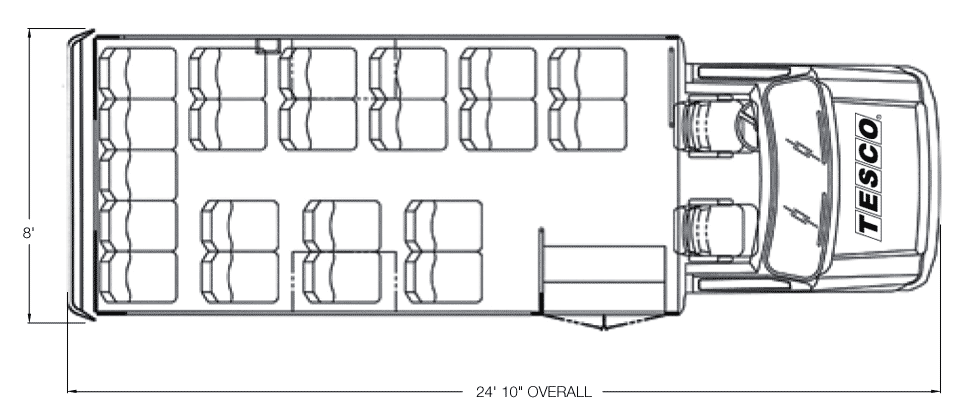

  • Federal Coach Spirit floorplan I: 22 passengers

    I 22 passengers

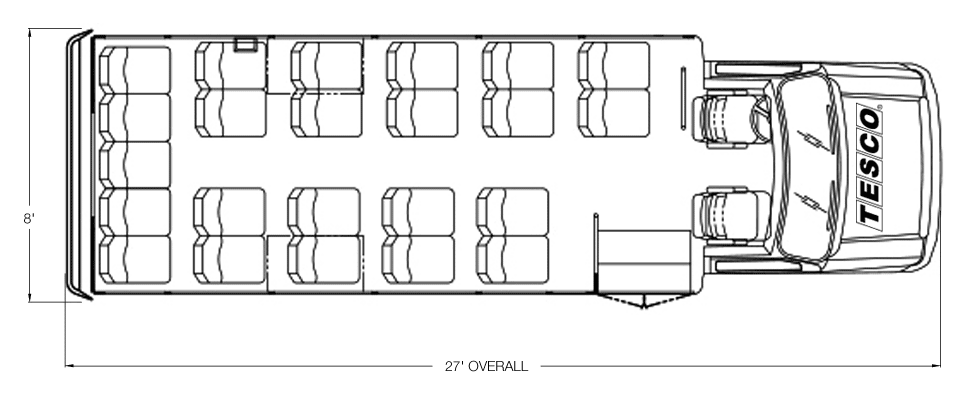

  • Federal Coach Spirit floorplan J: 24 passengers

    J 24 passengers

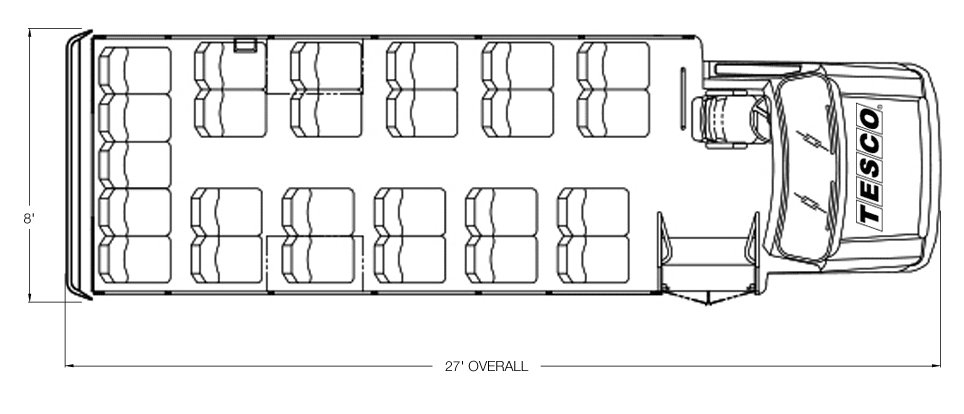

  • Federal Coach Spirit floorplan K: 25 passengers

    K 25 passengers

Features

Spirit Advantages

  • Primed Steel Frame Body
  • Painted Heavy Duty Bumper
  • Fiberglass Insulation
  • LED Lighting
  • Large Touring Windows

Standard Conversion Features

  • Body, Primed Box Steel Frame
  • Bumper, Rear, Heavy Duty (Painted)
  • Door, Electric Bi-Fold Side Entry (32")
  • Driveshaft Safety Loop
  • Electrical Panel, Easy Access
  • Fiberglass Skin(Front & Rear Caps, Ceiling & Sides)
  • Floor, 5/8" Exterior Grade Plywood(Edge Sealed & Undercoated)
  • Handrail Entry
  • Insulation, fiberglass
  • Lighting, Interior Dome (5)
  • Lights, Stepwell (2)
  • Lights, Tag
  • Mirrors, Velvac, Manual Breakaway
  • Modesty Panel with Entry Handrail
  • Mudflaps, Front & Rear
  • Paint, Exterior Body - White Gelcoat
  • Undercoating, Soundproofing Frame and Structure
  • Windows, Large Touring, GL 20 Tint with Black-Out Trim

Standard Chassis Features

  • Ford E-Super Duty Cutaway E350
  • 138" Wheelbase
  • Air Bags, Driver & Co-Pilot
  • Alternator, 155 AMP
  • Batteries, Dual Heavy Duty
  • Brakes, 4 Wheel Disc with ABS
  • Bumper, Front Chrome
  • Cooling System, Heavy Duty Engine Oil
  • Automatic Transmission Cooler
  • Cruise Control
  • Deluxe Insulation Package
  • Dual Rear Wheels
  • Engine, V-8 Gas Fuel Injected
  • Grille, Chrome
  • Headlamps, Aerodynamic Halogen
  • Power Door Locks / Windows
  • Power Steering
  • Rubber Mat, Front Floor
  • Seating, Driver & Co-Pilot
  • Suspension, Twin I-Beam Independent Front with Caster Camber
  • Tilt Steering Wheel
  • Electronic 5 Speed Automatic TorqShiftTM Transmission
  • Intermittent Windshield Wiper

Optional Conversion Features

  • 53,000 BTU Dual Compressor A/C System, with 40,000 BTU Heat Coil
  • 35k, 40k or 60k BTU Under Seat Heaters
  • Back Up Alarm
  • Back Up Monitor
  • Cargo Net
  • Ceiling Mount Handrails
  • Ceiling Treatments
  • DVD Player
  • Exterior Key Entry
  • Fiberglass Running Boards
  • Full Rubber Floor
  • Flush Mount “Plug Door”, Side Entry
  • Handrail, Right Hand Entry
  • Lighted Destination Sign
  • Luggage Racks
  • Mirrors, Velvac, heated & remote
  • Overhead Luggage
  • PA System
  • Painted Skirts

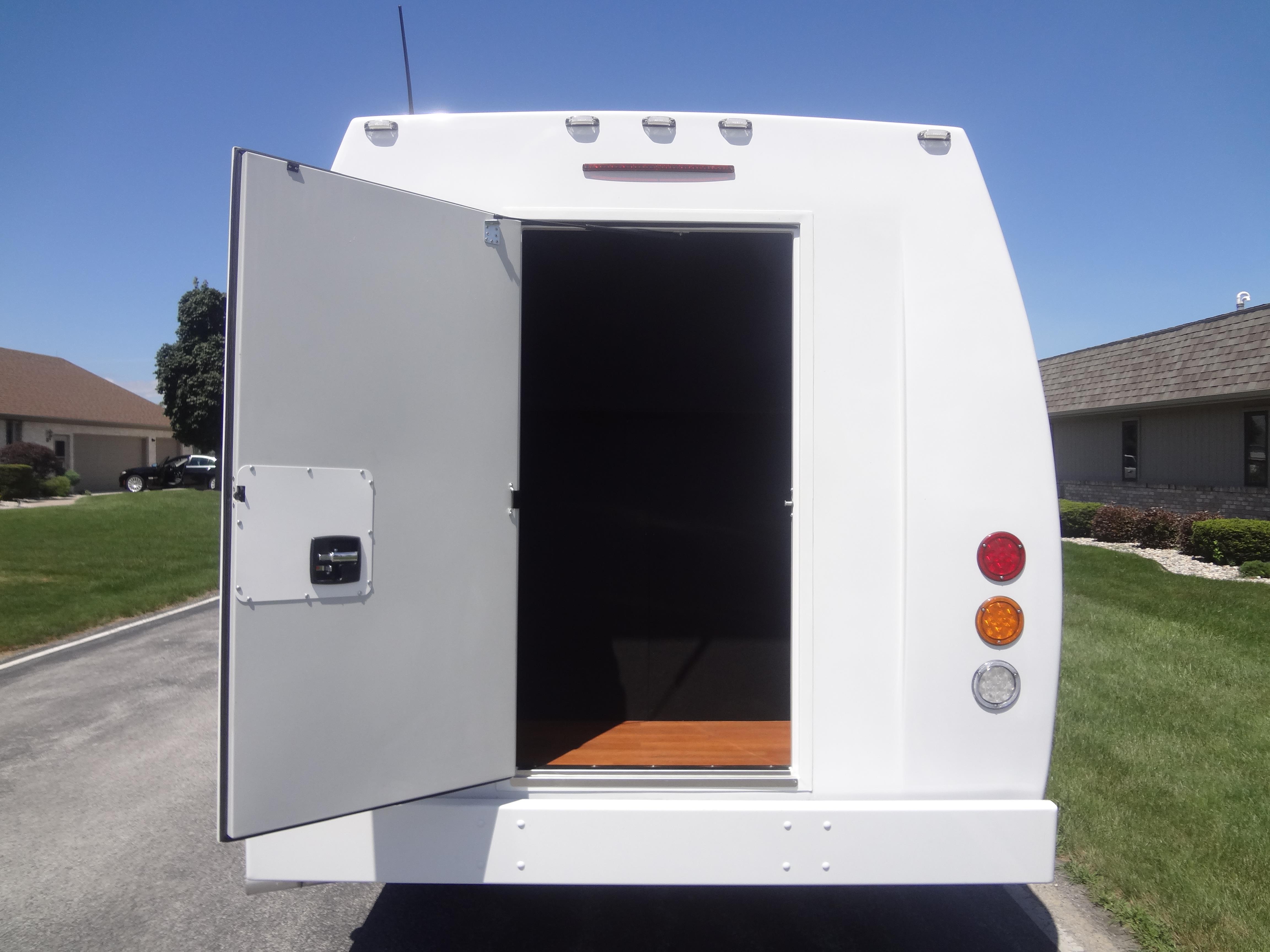

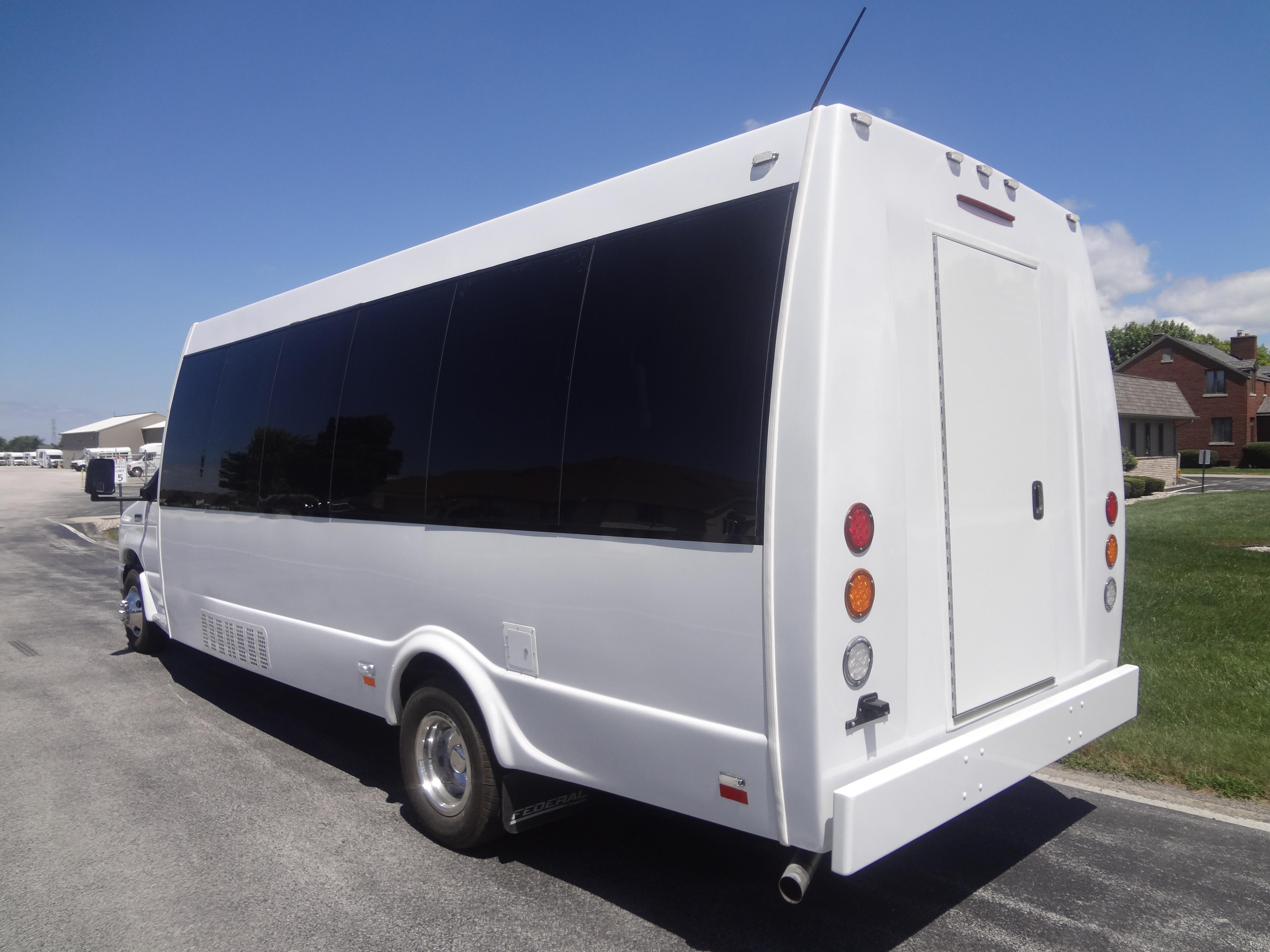

  • Rear Cargo Door with & without Glass
  • Rear Side Wheelchair Lift & Accessories
  • Roof Escape Hatch
  • Safety Equipment

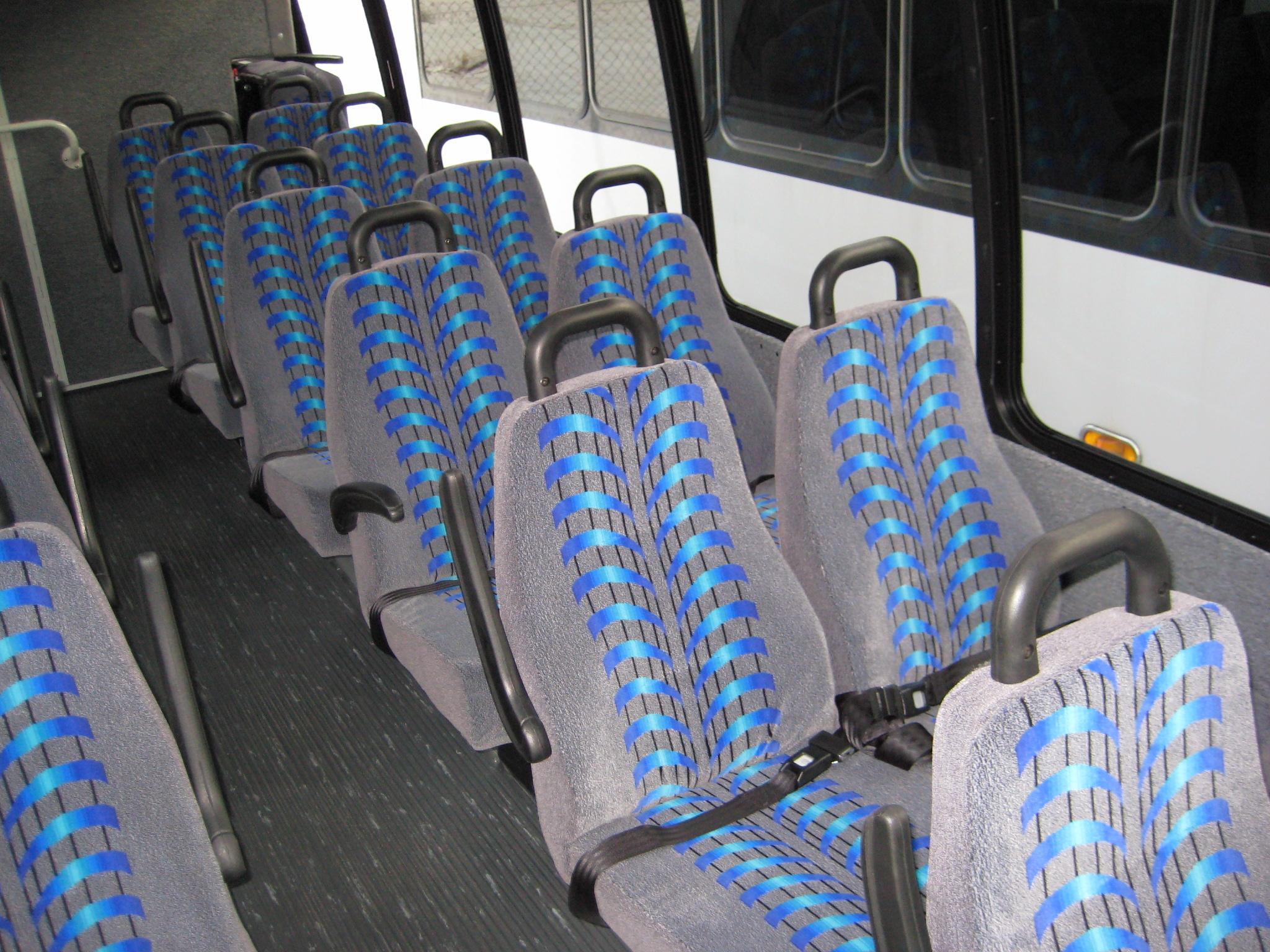

  • Seating, Freedman
  • Stainless Wheel Covers w/Valve Stem Extensions
  • Television LCD Flat Screen - 19"
