Home Bus Models Turtle Top Terra Transit HD

Turtle Top

Terra Transit HD

Heavy duty · Super Duty truck chassis

Capacity
22 - 36 passenger floorplans
Chassis
Ford F550 / F600
Floor
Standard
Wheelbase
205" - 266"
Request info See the floorplans

About the Terra Transit HD

When routes outgrow the cutaway van, the Terra Transit HD steps up to Ford's F550 and F600 Super Duty truck chassis, with floor plans from 22 to 36 passengers, including luggage and cargo configurations for airport, campus, and tour work. Heavy-duty running gear is matched by the same fully welded steel roll cage and high-gloss composite body that define every Terra Transit, backed by a 5-year warranty. Also offered on the Freightliner S2C chassis. DESIGNED TO MEET OR EXCEED APPLICABLE FMVSS STANDARDS and FORD QVM

Back to Turtle Top

Specifications

Capacity
22 - 36 passenger floorplans
Floor Type
Standard
GVWR
19,500# - 22,000#
Exterior Length
28' - 36.5'
Interior Width
94"
Wheelbases
205" - 266"
Chassis Models
Ford F550 / F600

Floorplans

6 layouts for the Terra Transit HD. Tap a plan to see it full size; your rep can spec seating, wheelchair positions and storage from any of them.

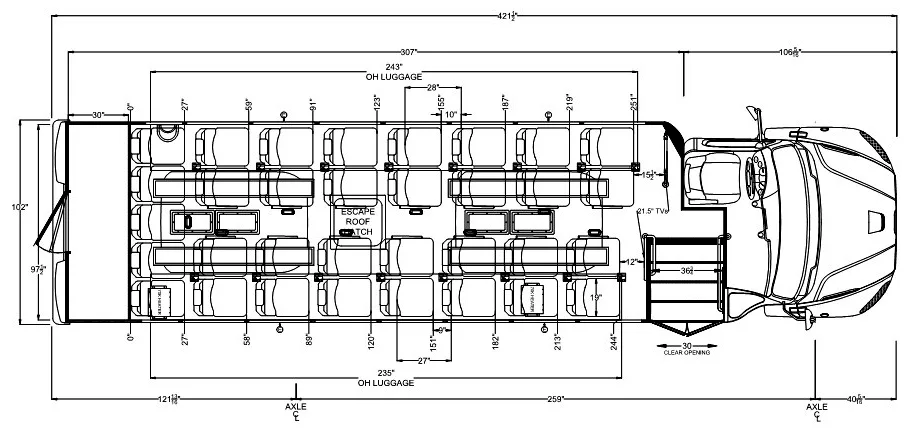

  • Turtle Top Terra Transit HD floorplan A: 33 passengers

    A 33 passengers

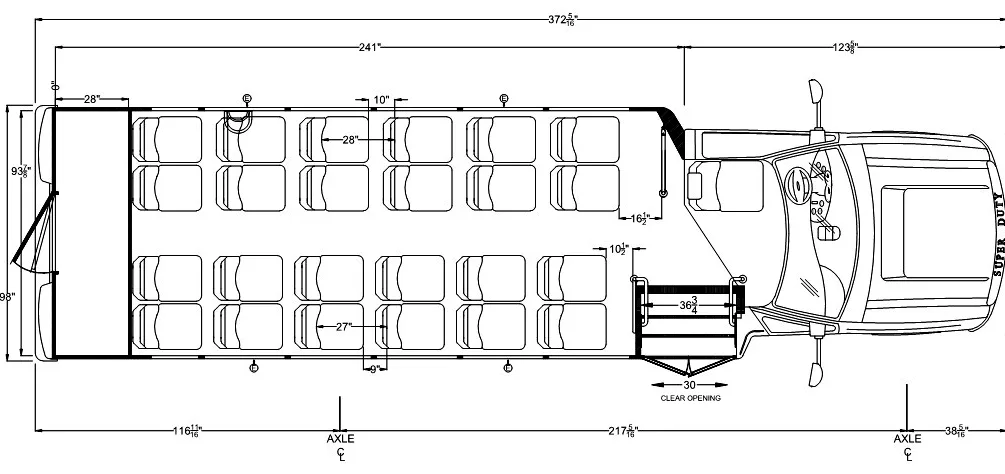

  • Turtle Top Terra Transit HD floorplan B: 24 passengers

    B 24 passengers

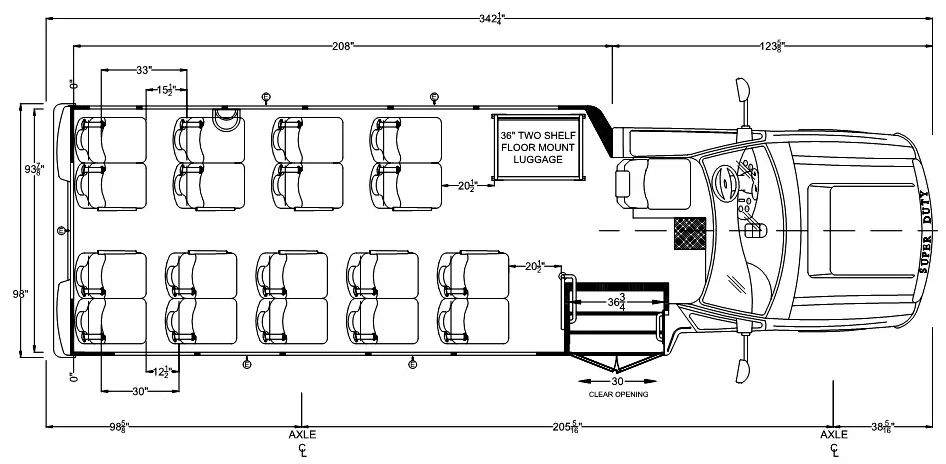

  • Turtle Top Terra Transit HD floorplan C: 18 passengers

    C 18 passengers

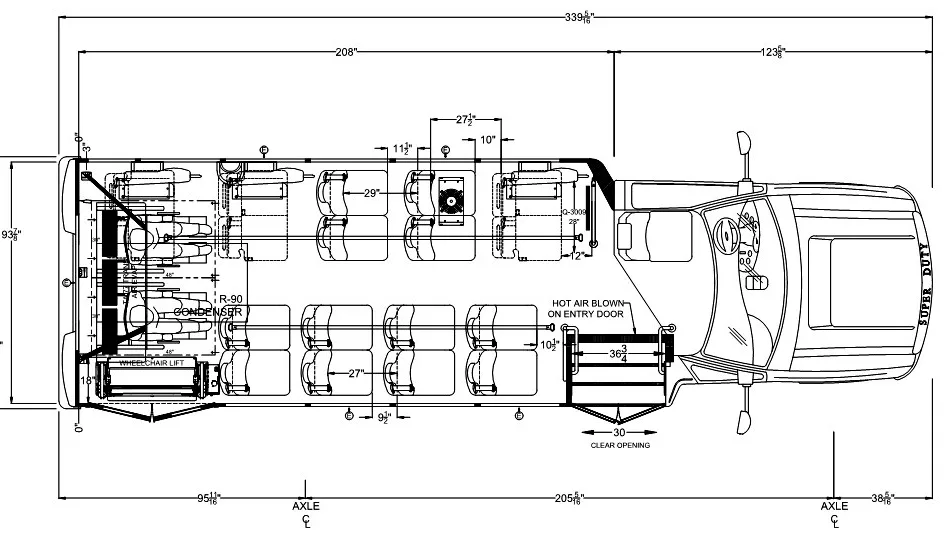

  • Turtle Top Terra Transit HD floorplan D: 16 passengers with 2 wheelchair positions

    D 16 passengers with 2 wheelchair positions

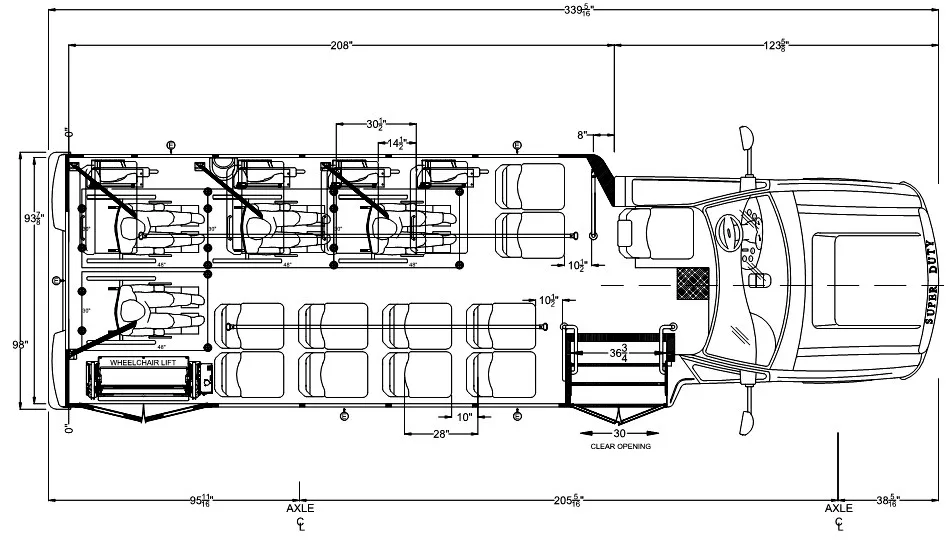

  • Turtle Top Terra Transit HD floorplan E: 10 passengers with 4 wheelchair positions

    E 10 passengers with 4 wheelchair positions

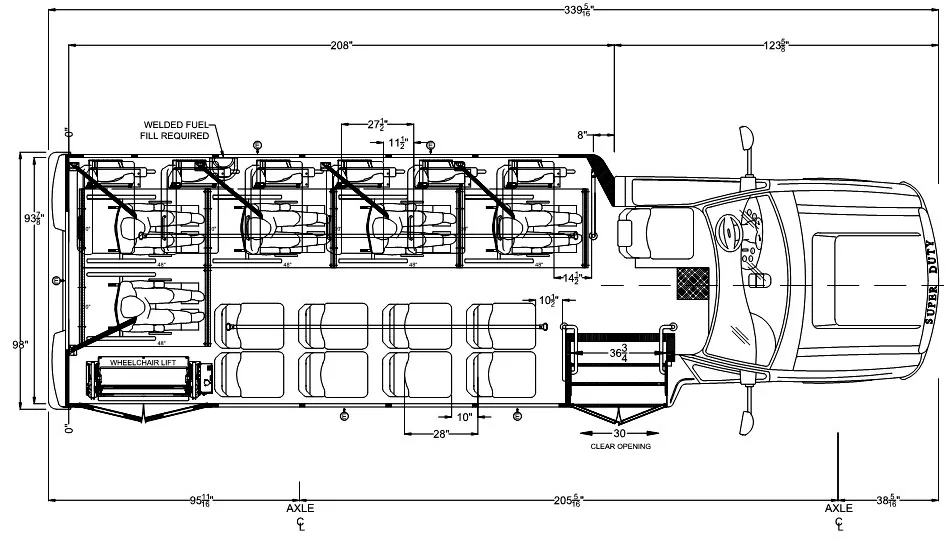

  • Turtle Top Terra Transit HD floorplan F: 8 passengers with 5 wheelchair positions

    F 8 passengers with 5 wheelchair positions
