Terra Transit MD

Mid duty · E-Series / Chevy cutaway

Capacity: Up to 25 passengers + driver
Chassis: Ford E350 / E450 or Chevrolet 3500 / 4500
Floor: Standard
Wheelbase: 138" - 207"

Request info See the floorplans

Overview
Floorplans
Features
In stock
More Turtle Top models

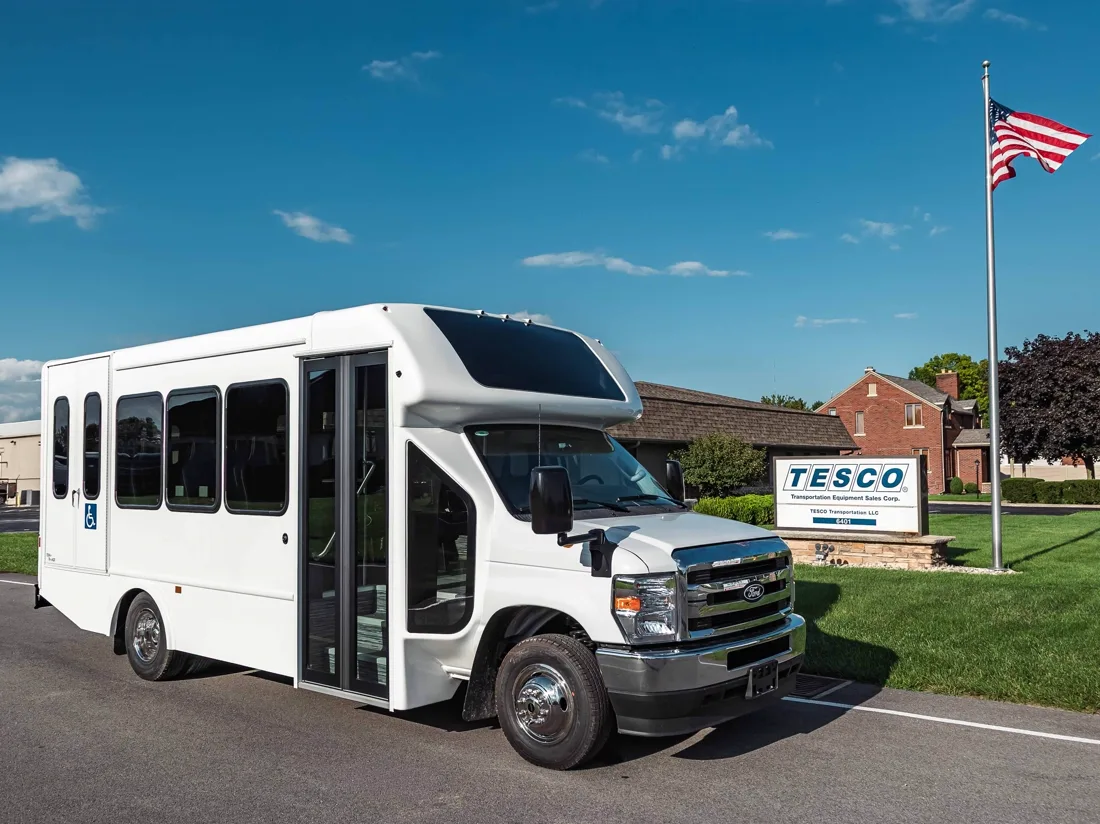

About the Terra Transit MD

The Terra Transit MD is the heart of the family and an economical complement to Turtle Top's mid-size fleet. Built on the proven Ford E350/E450 or Chevrolet 3500/4500 cutaway chassis, it offers seating for up to 25 passengers plus driver, and your riders will find it easy to enter and exit with ample headroom and aisle passage. With a variety of floor plans, you can meet your needs for storage, seating preferences, and wheelchair accessibility. A fully welded steel roll cage, quality construction, and a 5-year warranty make this the most affordable and practical choice for safe, dependable transportation. Count on a Turtle to keep you moving forward! DESIGNED TO MEET OR EXCEED APPLICABLE FMVSS STANDARDS and FORD QVM

Back to Turtle Top

Specifications

Capacity: Up to 25 passengers + driver
Floor Type: Standard
GVWR: 14,200# (Chevrolet) / 14,500# (Ford)
Exterior Length: 20' - 29'
Interior Width: 94"
Wheelbases: 138" - 207"
Chassis Models: Ford E350 / E450 or Chevrolet 3500 / 4500
Co-Pilot: No

Floorplans

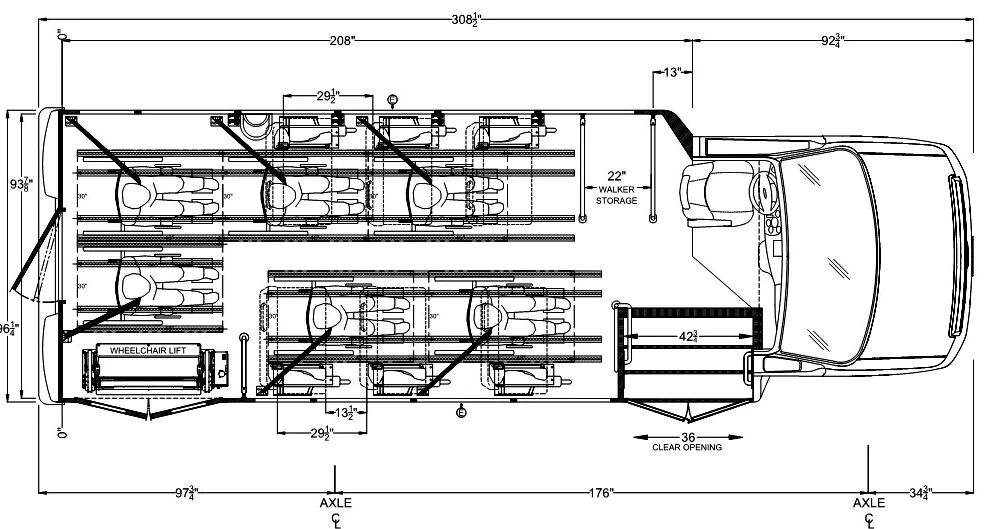

25 layouts for the Terra Transit MD. Tap a plan to see it full size; your rep can spec seating, wheelchair positions and storage from any of them.

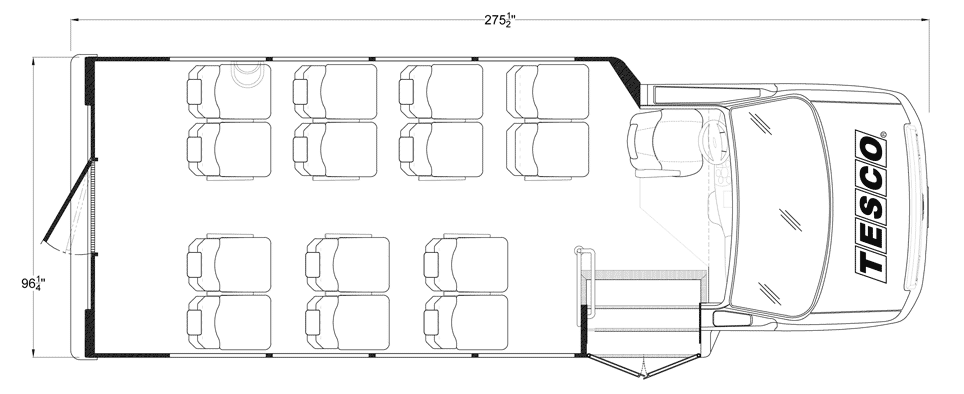

A 14 passenger

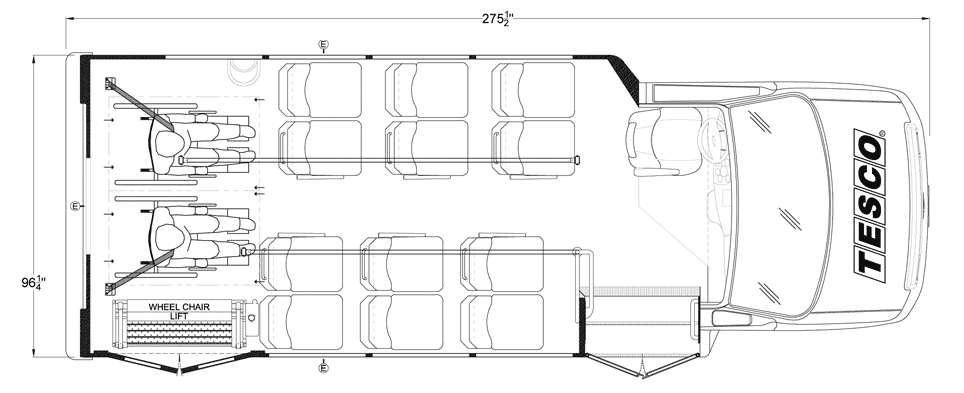

B 14 passengers with 2 wheelchair positions

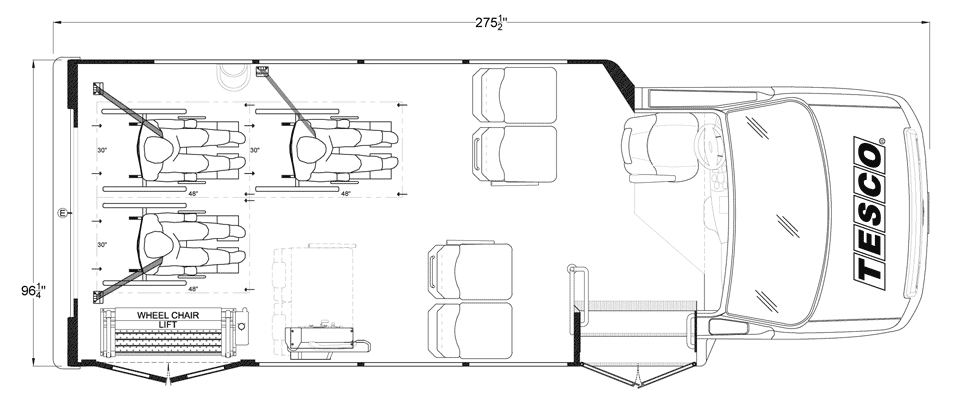

C 6 passengers with 3 wheelchair positions

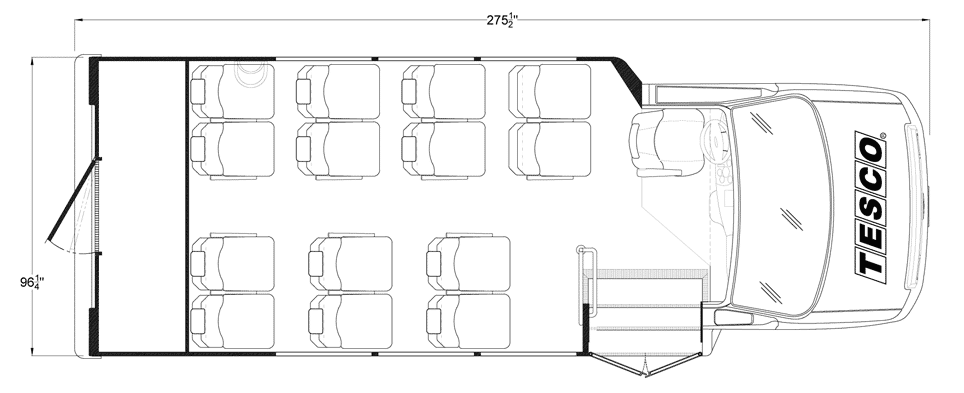

D 14 passengers

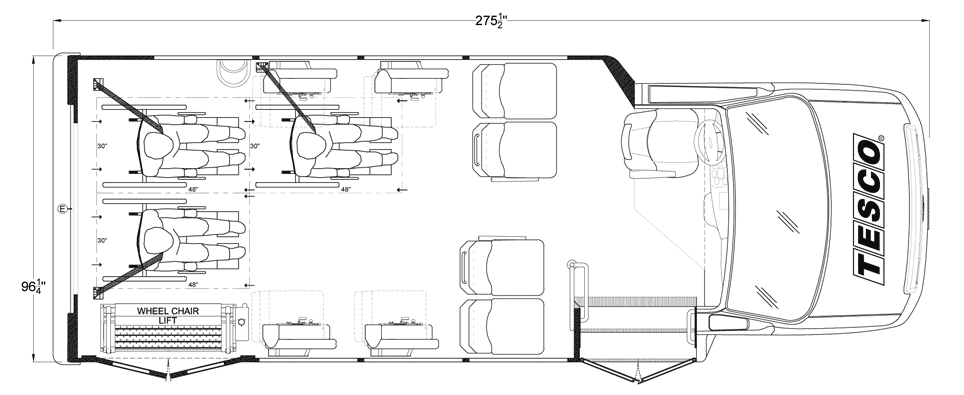

E 8 passengers with 3 wheelchair positions

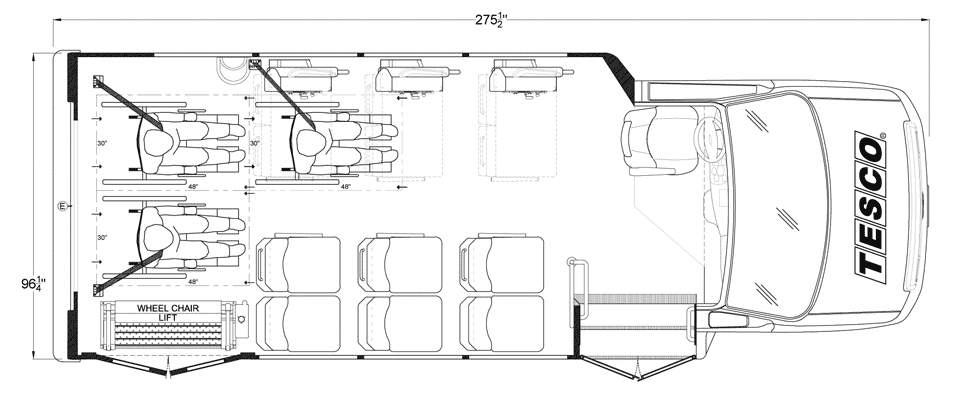

F 12 passengers with 3 wheelchair positions

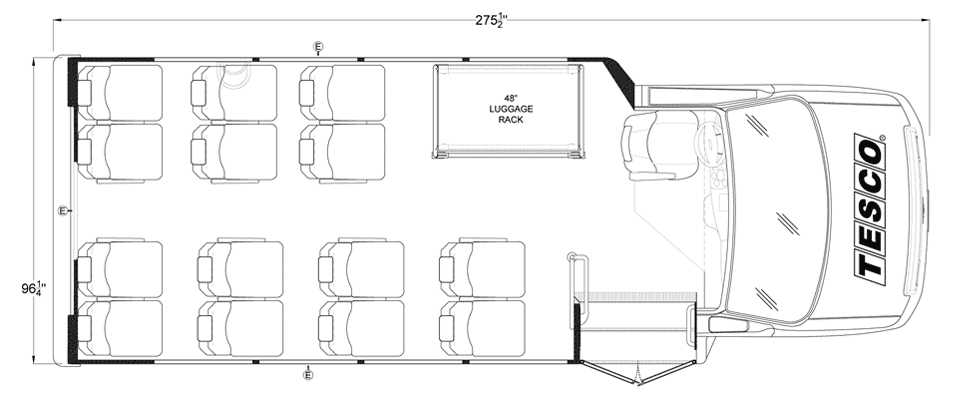

G 14 passengers

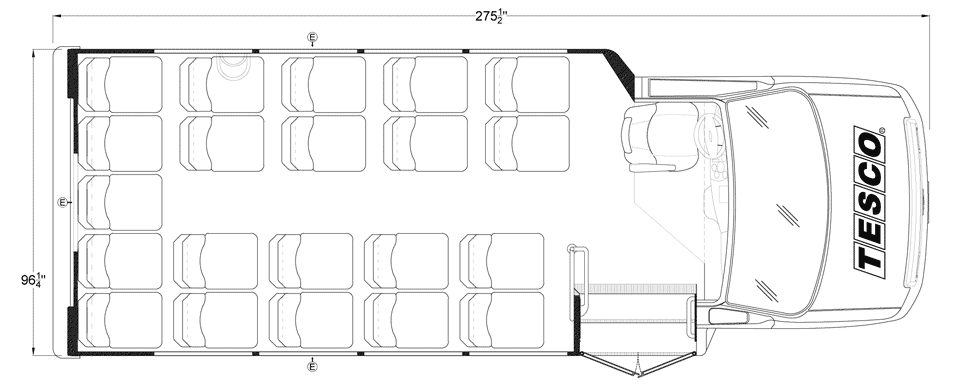

H 21 passengers

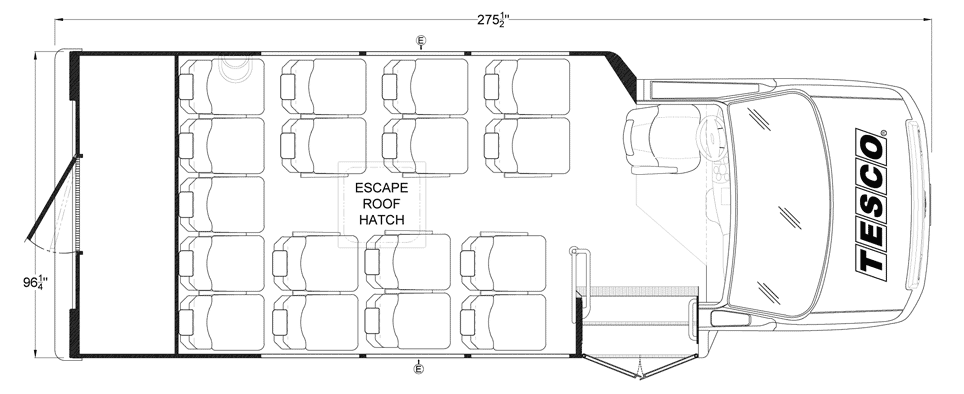

I 17 passenger

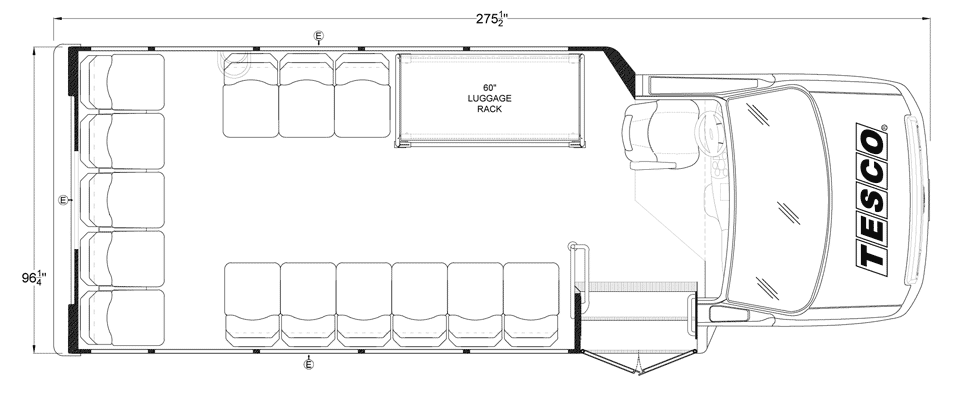

J 14 passengers

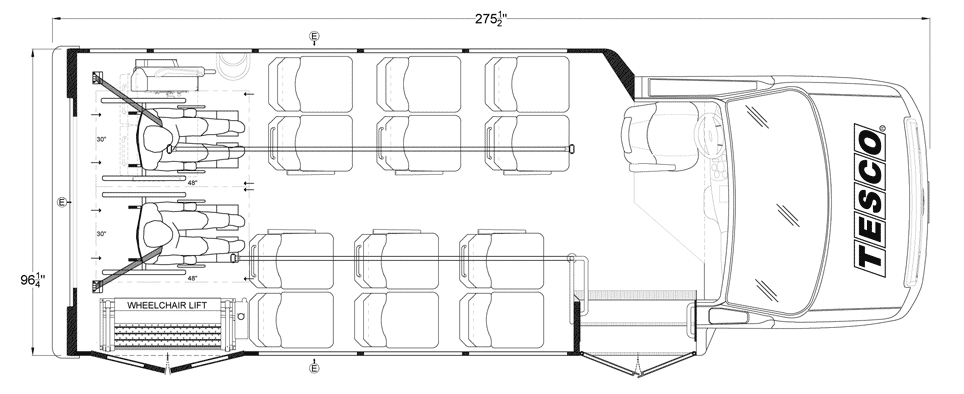

K 14 passengers with 2 wheelchair positions

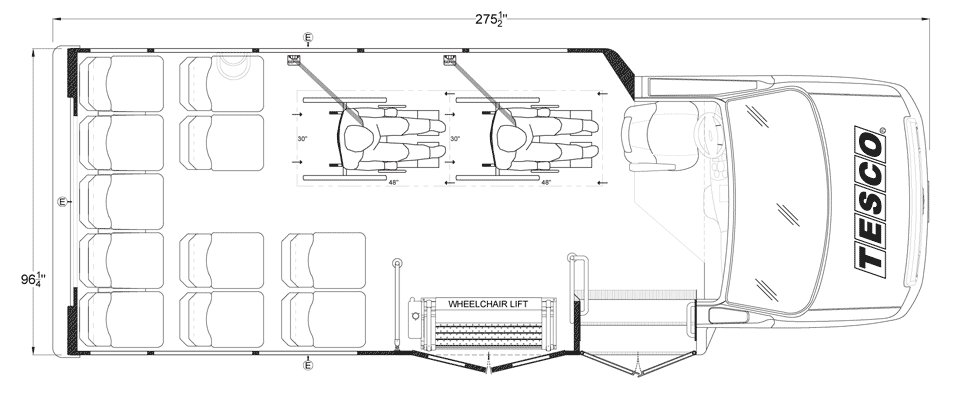

L 11 passengers with 2 wheelchair positions

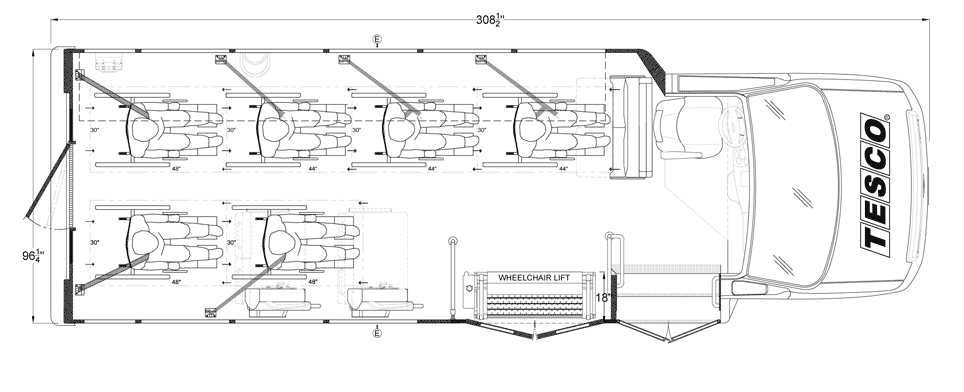

M 6 passengers with 6 wheelchair positions

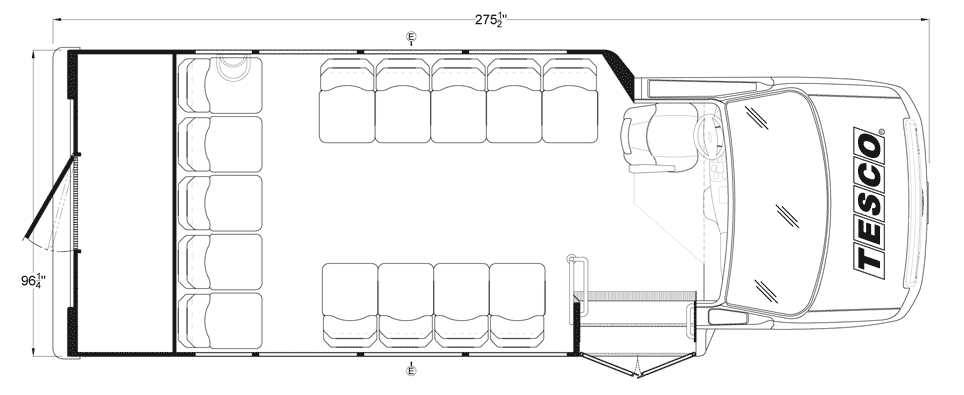

N 14 passengers

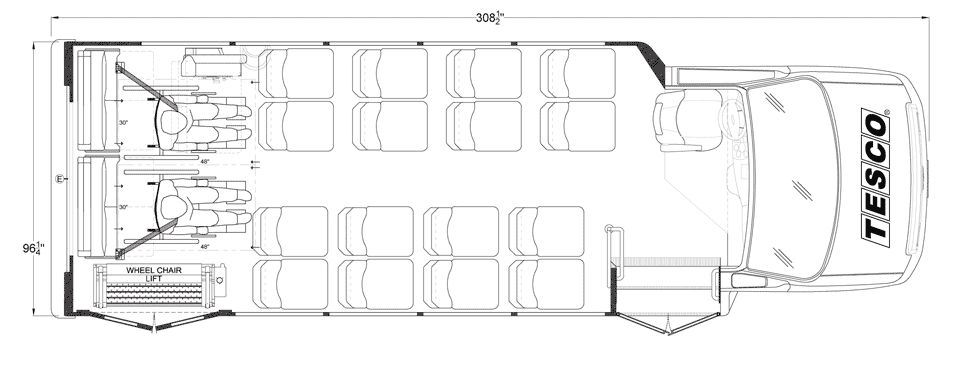

O 22 passengers with 2 wheelchair positions

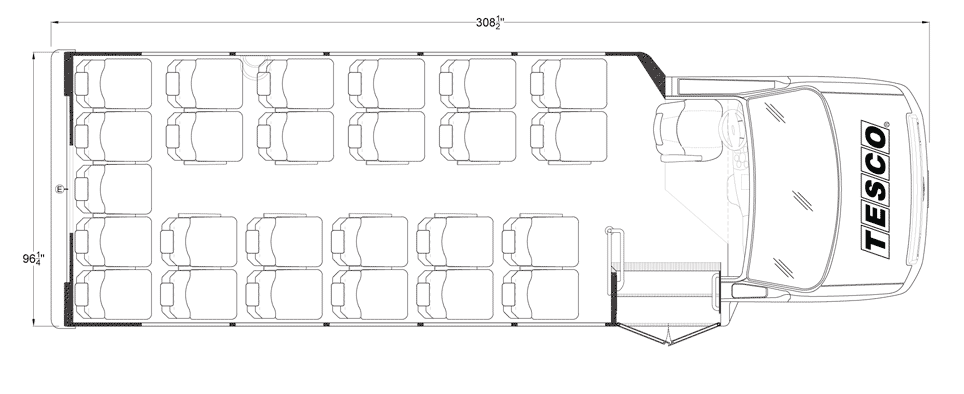

P 25 passengers

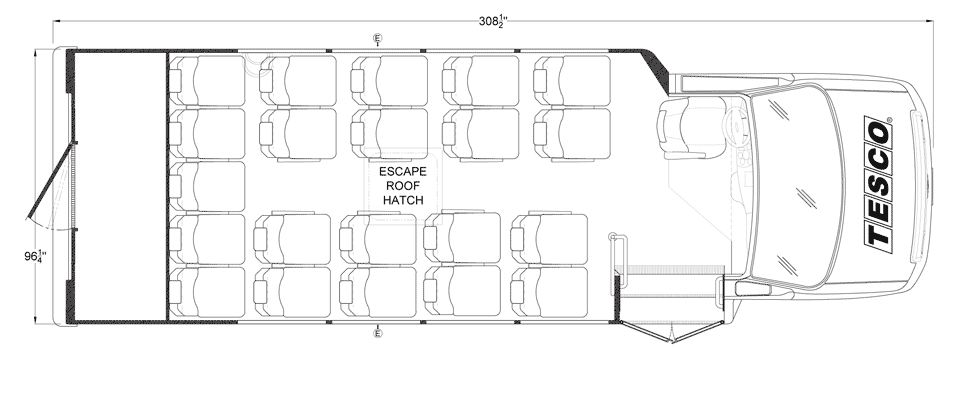

Q 21 passengers

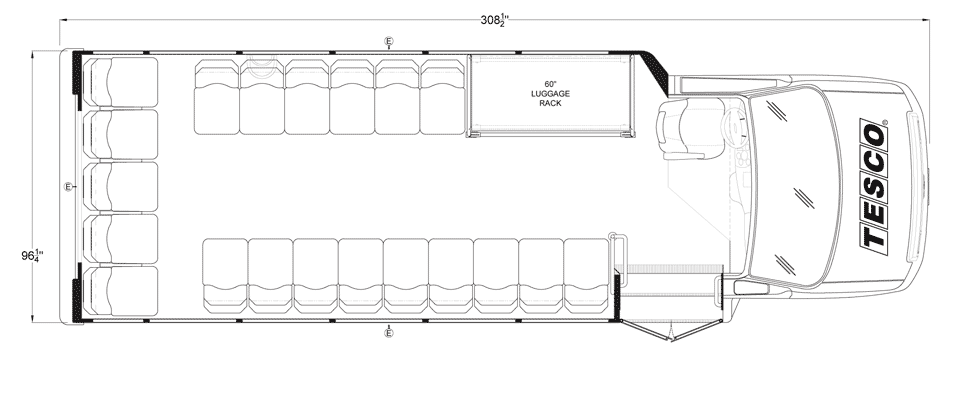

R 20 passengers

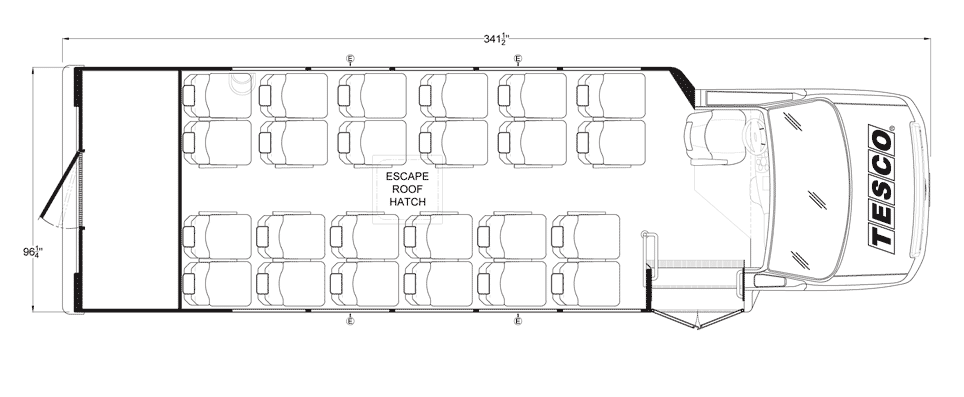

S 24 passengers

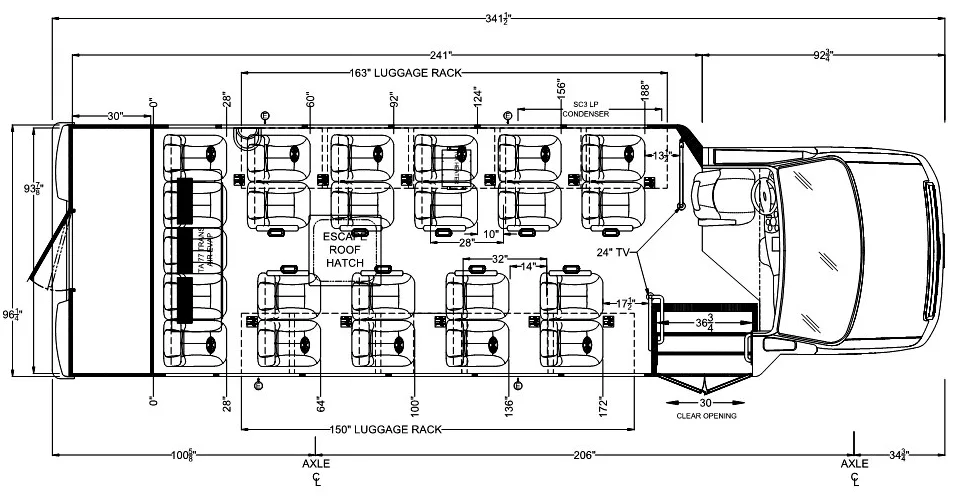

T 23 passengers

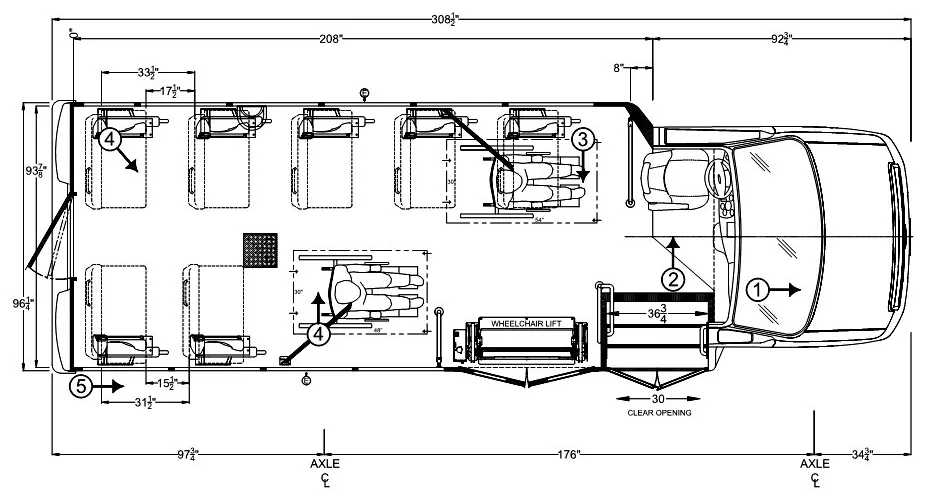

U 10 passengers with 2 wheelchair positions

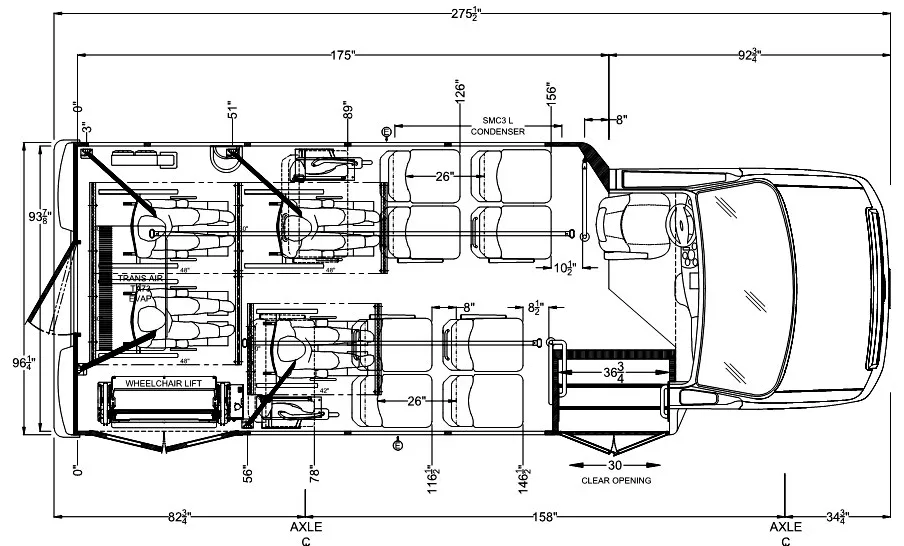

V 8 passengers with 4 wheelchair positions

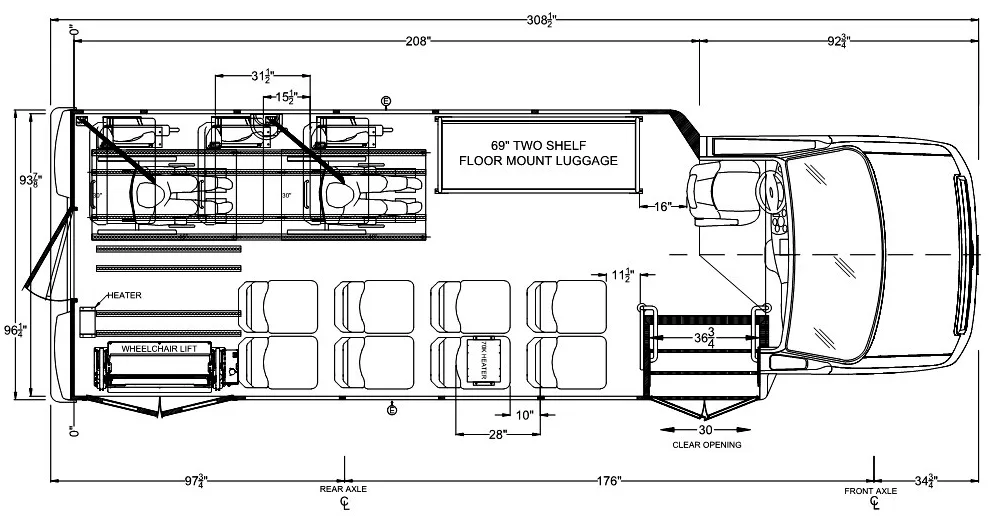

W 8 passengers with 2 wheelchair positions
X 6 wheelchair positions

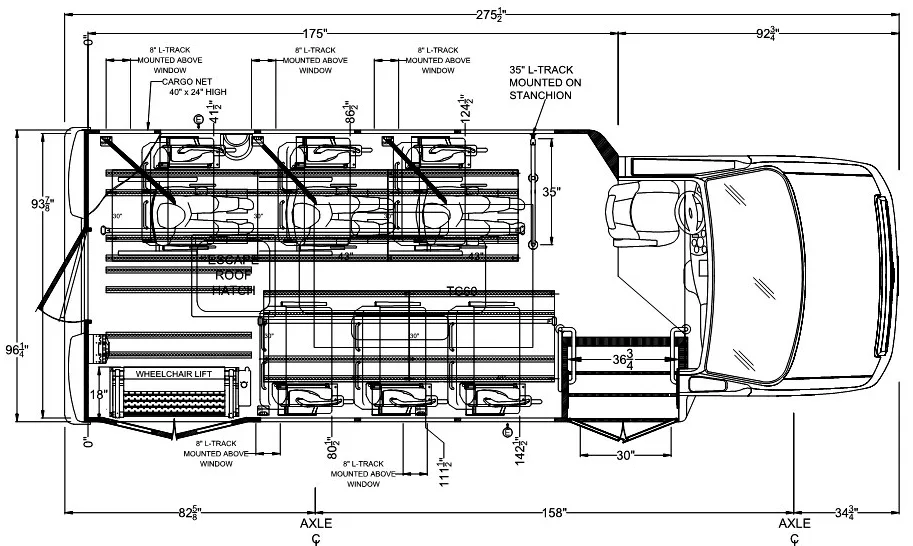

Y 5 wheelchair positions

Features

Terra Transit Advantages

E350/E450 Chassis
Overall Vehicle Length 23' & 25 1/2' * 79" Interior Height / 94" Wall to Wall
Flat Floor Standard
Fully Welded Steel Roll Cage w/ Rust Inhibitor
High Gloss 1-Piece Composite Exterior Side Panels w/ UV Protection
Interior 1-Piece Ceiling & Sidewalls
GXL Wiring for all Interior & Exterior Components
Exterior LED Lighting
Up to 25 Passengers + Driver

Standard Features & Equipment

76" interior height
Flat floor is standard
OEM dual high back captains chairs
OEM AM/FM/CD stereo radio with 2 speakers in cab
OEM dash A/C & heat standard
OEM interior rear view mirror
Smooth black rubber floor under seats
Black rubber treads in step well
Ribbed aisle (black rubber)
Durable bright white reinforced fiberglass ceiling and sidewalls
Modesty panel & angled hand rail at left of entrance door
Operator-friendly lighted switch panel
Color-coded high temp GXL wiring
Convenience lighting in cab and stepwell
Mini-Omega LED front to rear lighting in ceilings
72" Lap Belts
Welded tubular steel cage
Flat vertical sidewalls w/ fiberglass composite
Welded perimeter steel floor frame supported by welded "hat channel" cross members
Steel wheel well plates
Drive shaft guard(s)
Rear mud flaps
Re-Route exhaust to driver's side of vehicle
Steel Cage primed with rust inhibitor
Underbody foam sealed and undercoated
5/8" AdvanTech subfloor
Fiberglass front and rear cowls & Fiberglass composite exterior sidewalls
One-piece pre-molded fiberglass roof
Flat fiberglass lower body skirts
OEM white fiberglass gel coat exterior
Rubber fender flares
1" polystyrene foam board insulation
Tinted solid windows (31' x 36.375")
Tinted solid side egress windows adequate to meet FMVSS 217 (31"w x 36.375"h)
Tinted solid rear egress window (31" x 36.375"h)
Aluminum entrance door - manual b-fold 29" with tinted glass
Tinted A-panel window in cab
LED upper running/clearance lights per FMVSS 108 (5amber & 5 red)
LED stop/tail/turn lights
Red reflectors (2 side, 2 rear)
Incandescent backup lights & LED license plate lights
Heavy-duty steel powder-coated rear bumper
Lucerix exterior manual mirrors (L & R)
OEM steel wheels
Nitrogen tire inflation
Front end alignment check
